1.Equipped with conjugate cam for indexing driving tool-disc smoothly, with compact design, fast tool change and high durability.
2.To driving, indexing and clamping/loosening tool-holder disk with hydraulic force, precisely and correctly, torque is larger and stable, suitable for heavy cutting.
3.Smart selection of nearby tools controlled via proximity switch and logic control circuit, no error of tool-disc change.
- Product Details
- {{item.text}}
Quick Details
-
Core Components:
-
Electric spindle
-
Product name:
-

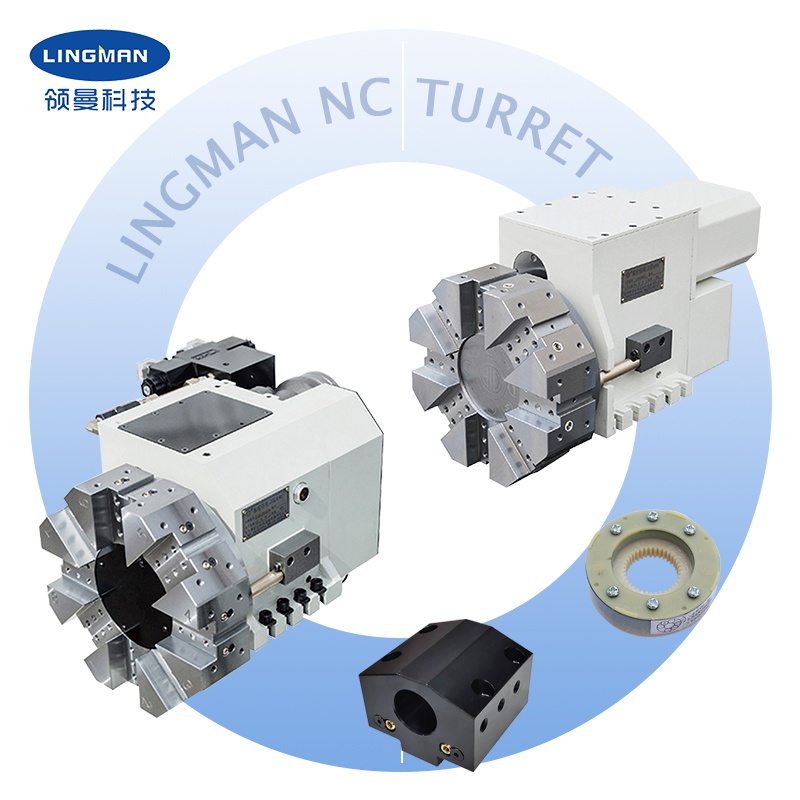

Hydraulic NC Turret
-
Central height:
-
50mm
-
Number of tools:
-
8T
-
Load-bearing(including disc):
-
25Kg
-
Max.tangential torque:
-
500N.m
-
Maximum off load moment:
-
6N.m
-
Repeatbility accuracy:
-
±2"
-
Oil hydraulic motor type:
-
32
-
Proximity switch:
-
PNP
-
Hydraulic working pressure:
-
2.0MPa
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight (KG):
-
30
-
Brand Name:
-
Lingman
-
Core Components:
-
Electric spindle
-
Product name:
-
Hydraulic NC Turret
-
Central height:
-
50mm
-
Number of tools:
-
8T
-
Load-bearing(including disc):
-
25Kg
-
Max.tangential torque:
-
500N.m
-
Maximum off load moment:
-
6N.m
-
Repeatbility accuracy:
-
±2"
-
Oil hydraulic motor type:
-
32
-
Proximity switch:
-
PNP
-
Hydraulic working pressure:
-
2.0MPa
CHARACTERISTICS
TECHNICAL DATA
|
刀架型号 Turret model
|
|
HAK36050
|
HAK36063
|
HAK36063A
|
HAK36080
|
|||||
|
项目 Item
|
单位 Unit
|
数值 Numerical value
|
|
|
|
|||||
|
中心高 Center height
|
mm
|
50
|
63
|
63
|
80
|
|||||
|
刀数 Number of tools
|
N
|
8T
|
8T
|
8T
|
8T
|
|||||
|
刀架承重（含刀盘）
Load-bearing(including disc)
|
Kg
|
25
|
40
|
40
|
60
|
|||||
|
最大切向力矩 Max.tangential torque
|
N.m
|
500
|
1000
|
1200
|
2200
|
|||||
|
最大偏载力矩 Maximum off load moment
|
N.m
|
6
|
10
|
10
|
15
|
|||||
|
相邻刀换刀并锁紧时间
Indexing time(including locking)
|
Sec
|
0.5
|
0.6
|
0.6
|
0.6
|
|||||
|
换最远刀并锁紧时间
Toal indexing time for 180°(including locking)
|
Sec
|
1.2
|
1.6
|
1.6
|
1.6
|
|||||
|
油压马达型式 Oil hydraulic motor type
|
|
32
|
50
|
50
|
50
|
|||||
|
电磁切换阀 Solenoid value operated value
|
|
/
|
/
|
/
|
/
|
|||||
|
接近开关 Proximity switch
|
|
PNP
|
PNP
|
PNP
|
PNP
|
|||||
|
工作压力 Hydraulic working pressure
|
Mpa
|
2.0
|
3.0
|
3.0
|
3.0
|
|||||
|
流量 Flow rate
|
L/min
|
12
|
12
|
12
|
12
|
|||||
|
重复精度 Repeatability accuracy
|
"
|
±2
|
±2
|
±2
|
±2
|
|||||
|
净重（不含刀盘）N.W.(without tool disk)
|
kg
|
30
|
40
|
55
|
55
|
|||||
|
刀盘标准规格及配件表 Turret specifications and accessories
|
|
|
|
|
|
|||||
|
8T Dics size
|
mm
|
180/190
|
228
|
228
|
240
|
|||||
|
10T Dice size
|
mm
|
/
|
/
|
/
|
/
|
|||||
|
12T Dice size
|
mm
|
/
|
/
|
/
|
/
|
|||||
|
外径刀 O.D. tool
|
mm
|
16/20
|
20
|
20
|
20
|
|||||
|
端面刀座 Facing tool
|
mm
|
16/20
|
20
|
20
|
20
|
|||||
|
镗刀座 Boring tool
|
mm
|
20
|
25
|
25
|
25
|
|||||
|
|
|
|
|
|
|
|||||
|
刀架型号 Turret model
|
|
HAK36080A
|
HAK36100
|
HAK36125
|
HAK36160
|
|||||
|
项目 Item
|
单位 Unit
|
数值 Numerical value
|
|
|
|
|||||
|
中心高 Center height
|
mm
|
80
|
100
|
125
|
160
|
|||||
|
刀数 Number of tools
|
N
|
8T/10T/12T
|
8T/10T/12T
|
8T/10T/12T
|
8T/12T
|
|||||
|
刀架承重（含刀盘）Load-bearing(including disc)
|
Kg
|
60
|
120
|
180
|
280
|
|||||
|
最大切向力矩 Max.tangential torque
|
N.m
|
3200
|
5200
|
11000
|
18000
|
|||||
|
最大偏载力矩 Maximum off load moment
|
N.m
|
15
|
40
|
60
|
120
|
|||||
|
相邻刀换刀并锁紧时间 Indexing time(including locking)
|
Sec
|
0.8
|
0.8
|
0.8
|
1.2
|
|||||
|
换最远刀并锁紧时间 Toal indexing time for 180°(including locking)
|
Sec
|
1.8/2.2/2.5
|
1.8/2.2/2.5
|
2.0/2.4/2.8
|
3.0/3.8
|
|||||
|
油压马达型式 Oil hydraulic motor type
|
|
80
|
100
|
100
|
200
|
|||||
|
电磁切换阀 Solenoid value operated value
|
|
AC 110V DC 24V
|
AC 110V DC 24V
|
AC 110V DC 24V
|
/
|
|||||
|
接近开关 Proximity switch
|
|
PNP
|
PNP
|
PNP
|
PNP
|
|||||
|
工作压力 Hydraulic working pressure
|
Mpa
|
30
|
35
|
40
|
45
|
|||||
|
流量 Flow rate
|
L/min
|
20
|
30
|
40
|
40
|
|||||
|
重复精度 Repeatability accuracy
|
"
|
±2
|
±2
|
±2
|
±2
|
|||||
|
净重（不含刀盘）N.W.(without tool disk)
|
kg
|
95
|
125
|
155
|
250
|
|||||
|
刀盘标准规格及配件表 Turret specifications and accessories
|
|
|
|
|
|
|||||
|
8T Dics size
|
mm
|
270/320
|
300/330
/380
|
420
|
480
|
|||||
|
10T Dice size
|
mm
|
330
|
380
|
420
|
/
|
|||||
|
12T Dice size
|
mm
|
330/340
|
380/410
|
440
|
520
|
|||||
|
外径刀 O.D. tool
|
mm
|
20/25
|
25
|
25/32
|
32/42
|
|||||
|
端面刀座 Facing tool
|
mm
|
20/25
|
25
|
25/32
|
32/42
|
|||||
|
镗刀座 Boring tool
|
mm
|
32/40
|
40
|
40/50
|
50
|
|||||
|
注：非标刀盘、前置刀架请另行咨询
Note: Please consult separately for non-standard disc and front-turret.
|
|
|
|
|
|
|||||
