Quick Details
-
Model Number:
-
IB86
-
Weight:
-
123.5 kgs, 123.5 kgs
-
Packing Dimension:
-
2184*255*1380mm
-
Product Dimension:
-
4214*1221*94mm
-
Application:
-
School Classroom
-
Brightness:
-
400cd/m2
-
Minimum object size:
-
Single touch ≥1.6mm,ultiple touch ≥3mm
-
Product size:
-
4214x94x1221mm
-
main screen Package:
-
2182x255x1380mm
-
Vice screen Package:
-
1218x275x1345mm
-
Certificate:
-
CE/CCC/FCC/ROHS/ISO9001
Quick Details
-
Panel Size:
-
86inches
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ikinor
-
Model Number:
-
IB86
-
Weight:
-
123.5 kgs, 123.5 kgs
-
Packing Dimension:
-
2184*255*1380mm
-
Product Dimension:
-
4214*1221*94mm
-
Application:
-
School Classroom
-
Brightness:
-
400cd/m2
-
Minimum object size:
-
Single touch ≥1.6mm,ultiple touch ≥3mm
-
Product size:
-
4214x94x1221mm
-
main screen Package:
-
2182x255x1380mm
-
Vice screen Package:
-
1218x275x1345mm
-
Certificate:
-
CE/CCC/FCC/ROHS/ISO9001
Products Description
Ikinor

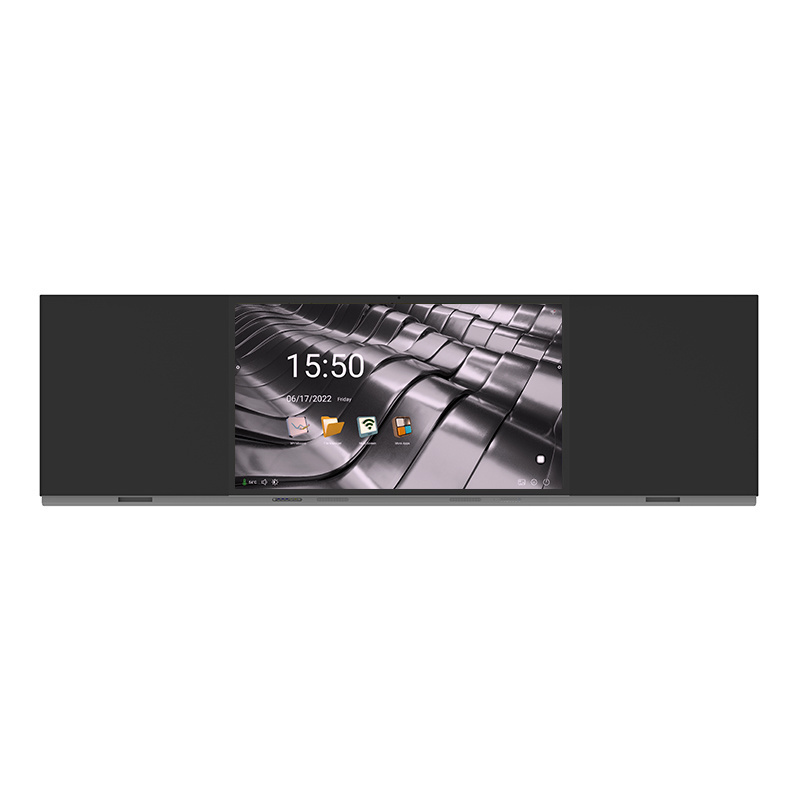

Provide LED Digital Touch Nano Smart Blackboard ODM/OEM/CKD/SKD.
*
Size in 75'' 86''
*
Dual System Android + Windows
* Built-in Camera and Microphone(optional)
*
Traditional teaching and modern teaching seamlessly switch
Product Paramenters
---Ikinor Education Interactive Smart blackboard Specification---
|
Product Name
|
Nano-silver touch blackboard
|
|
Option Size
|
75'',86''.
|
||||
|
Operation System info
|
|
|
|
|
||||
|
Android version
|
Android 11
|
|
Mainboard solution
|
T982/311D2
|
||||
|
CPU
|
Quad core Arm Cortex-A55
|
|
RAM (option)
|
4GB,8GB
|
||||
|
Touch points
|
20 points (Win 7/8/10)
20 points (Android)
|
|
ROM (option)
|
32GB,64GB,128GB.
|
||||
|
Brightness
|
max 400cd/m²(typ.)
|
|
Life time
|
50000H
|
||||
|
Viewing angle
|
178°
|
|
Contrast ratio
|
5000:1(typ.)
|
||||
|
Support OS
|
Windows,Android,mac OS,Linux
|
|
Resolution
|
3840*2160 /UHD
|
||||
|
Standard OPS OS
|
Windows 7/10
|
|
OPS CPU (option)
|
i3/i5/i7
|
||||
|
Power of speaker
|
8Ω15W*2
|
|
Built-in camera (option)
|
13 MP + 8 array MIC
|
||||
|
Size of product(mm)
|
4214*1998*94
|
|
Product Type
|
75''/86''
|
||||
|
Size of package(mm)
|
Main:2184*1380*255
|
|
|
Main: 95.5
|
||||
|
|
Vice:1218*275*1345
|
|
|
Vice: 28.5
|
||||
|
Android interface(I/O)
|
|
|
|
|
||||
|
Front ports
|
USB3.0 * 3,Type-c *1, Touch USB *1,HDMI in *1(HDMI2.0,Up to 38402160@30Hz)..
|
|
|
|
||||
|
Back ports
|
COAXIAL Out*1,Earphone Out*1,PC Audio In*1,VGA*1,RS232*1,TV In*1,AV In*1,,LAN In*1,HDMI in*2,USB*2,Touch USB*1,TF Card*1,Mic In*1.
|
|
|
|
||||
|
Front buttons
|
Indicator: Red/Blue; Buttons:Screen Record; Image Aspect Ratio; V-; V+; Setting ; Eye Protect; Power.
|
|
|
|
||||
