Quick Details
-
Product Name:
-
4K USB Camera Module
-
Module Size:
-
158.44*30mm, FPC 80mm
-
Sensor:
-
1/3.06 Inch CMOS IMX258, CMOS
-
Pixel Size:
-
1.12um x 1.12um
-
Resolution:
-
3840 H x 3104 V, 3840HX2160V 4K
-
FOV:
-
75 Degree or TBD
-
Output Format:
-
MJPEG
-
Focus Type:
-
Autofocus, Fixed Focus, Manual Focus
-
Interface:
-
5 PIN 1.0MM Socket
-
Supported OS:
-
Windows, Android, Linux, Mac OSX
-
Style:
-
USB Camera Module
-
Data Storage Options:
-
High Speed USB2.O Output
-
Video Compression Format:
-
MJPEG, YUY2
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Neutral
-
Model Number:
-

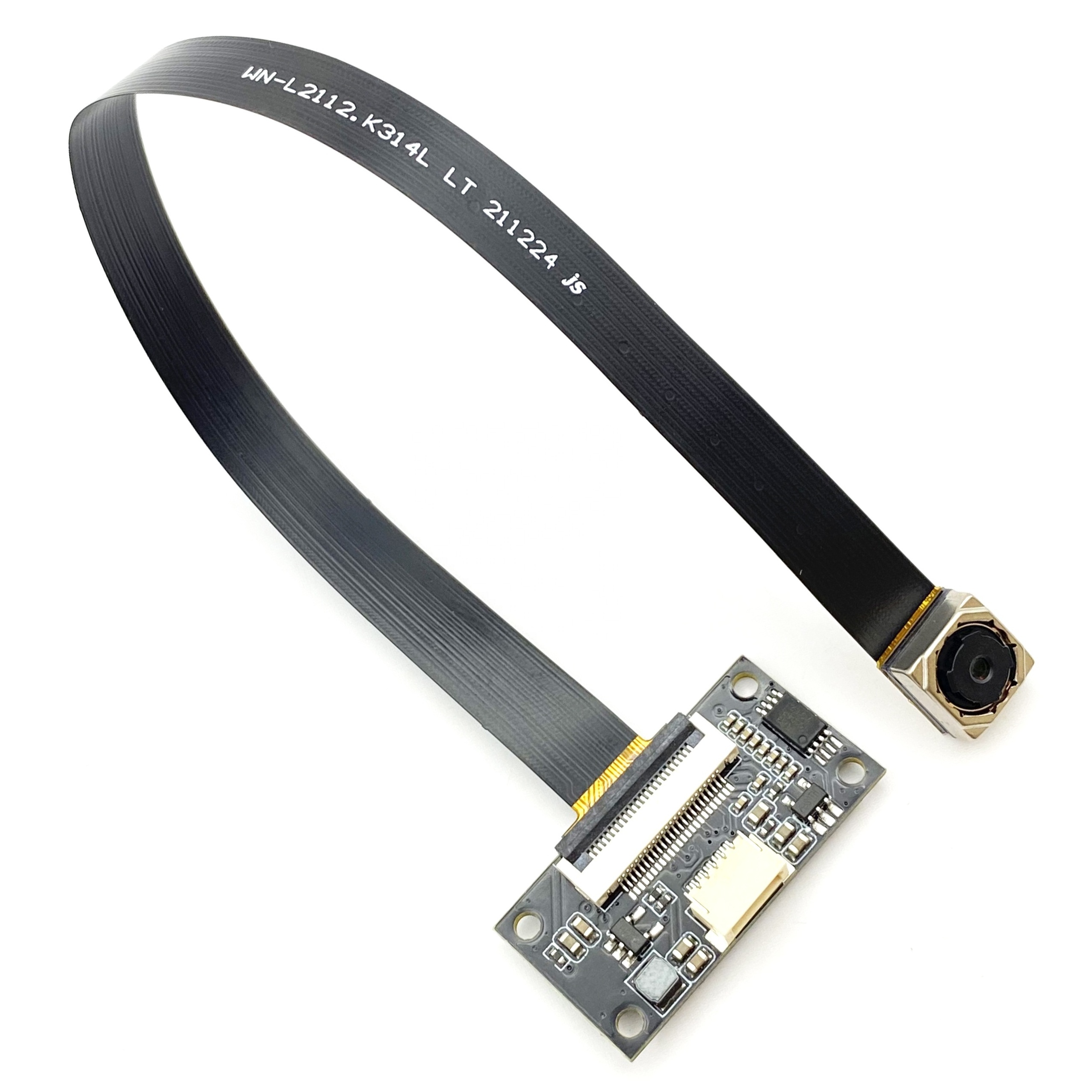

WN-L2112.K314L
-
Product Name:
-
4K USB Camera Module
-
Module Size:
-
158.44*30mm, FPC 80mm
-
Sensor:
-
1/3.06 Inch CMOS IMX258, CMOS
-
Pixel Size:
-
1.12um x 1.12um
-
Resolution:
-
3840 H x 3104 V, 3840HX2160V 4K
-
FOV:
-
75 Degree or TBD
-
Output Format:
-
MJPEG
-
Focus Type:
-
Autofocus, Fixed Focus, Manual Focus
-
Interface:
-
5 PIN 1.0MM Socket
-
Supported OS:
-
Windows, Android, Linux, Mac OSX
-
Style:
-
USB Camera Module
-
Data Storage Options:
-
High Speed USB2.O Output
-
Video Compression Format:
-
MJPEG, YUY2
|
Module Size
|
44*21mm
|
|
Sensor
|
1/3.06 Inch CMOS IMX258
|
|
Pixel Size
|
1.12um x 1.12um
|
|
Resolution
|
4K 3840 H x 2160 V
|
|
Output Format
|
MJPEG
|
|
FOV
|
75 Degree (or TBD)
|
|
Focus Type
|
Autofocus
|
|
Shutter Type
|
Electronic Rolling shutter
|
|
Audio Input
|
Dual Digital Mic
|
|
Output and Power Supply
|
High Speed USB2.0
|
|
Interface
|
5 PIN 1.0MM Socket
|
|
Controllable Parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
|
|
Supported OS
|
Windows, Android, Linux, Wince, Mac OS
|
|
Cable Length
|
Default 1.0 Meter USB Cable
|
|
Format
|
Resolution
|
Frame Rate (USB2.0)
|
|
|
3840 x 2160
|
30FPS
|
|
|
3264 x 2448
|
30FPS
|
|
|
2592 x 1944
|
30FPS
|
|
|
2048 x 1536
|
30FPS
|
|
|
1920 x 1080
|
30FPS
|
|
|
1280 x 720
|
30FPS
|
|
|
800 x 600
|
30FPS
|
|
Pin No.
|
Signal Name
|
Description
|
|
1
|
VCC
|
5V Power
|
|
2
|
DM
|
USB2.0 Data-
|
|
3
|
DP
|
USB2.0 Data+
|
|
4
|
GND
|
GND
|
|
5
|
GND
|
GND
|
|
Operating Voltage
|
USB DC +5V Supply
|
|
Operating Current
|
190mA
|
|
Operating Temperature
|
-20℃ ~ 60℃
|
|
Storage Temperature
|
-20℃ ~ 105℃
|
|
Humidity
|
80 ~85%
|
Weinan Electronics camera modules have a wide range of applications like ATM Machine, kiosk, automatic vending machine, robot,
sanner, virtual reality, medical equipment, machinery equipment, POS equipment, smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, tablet external, on-the-spot law enforcement, recognition algorithm attendance machine, simple security system, teaching system, interactive system, credit card machine, attendance machine, voting system, high speed video shooting device, exam system, driving learning system, industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, medical auxiliary equipment, etc.
