Quick Details
-
Name:
-
Volume Control Damper VCD frame Roll Forming Making Machine
-
Type:
-
Fully Automatic
-
Material:
-
Galvanized steel
-
Voltage:
-
220V/380V
-
Motor power:
-
15kw
-
Package:
-
Wooden Case
-
Item:
-
Sheet Metal Forming
-
Function:
-
HAVC system
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Control system:
-
PLC
-
Application:
-
making fire damper shell
-
Name:
-
Volume Control Damper VCD frame Roll Forming Making Machine
-
Type:
-
Fully Automatic
-
Material:
-
Galvanized steel
-
Voltage:
-
220V/380V
-
Motor power:
-
15kw
-
Package:
-
Wooden Case
-
Item:
-
Sheet Metal Forming
-
Function:
-
HAVC system

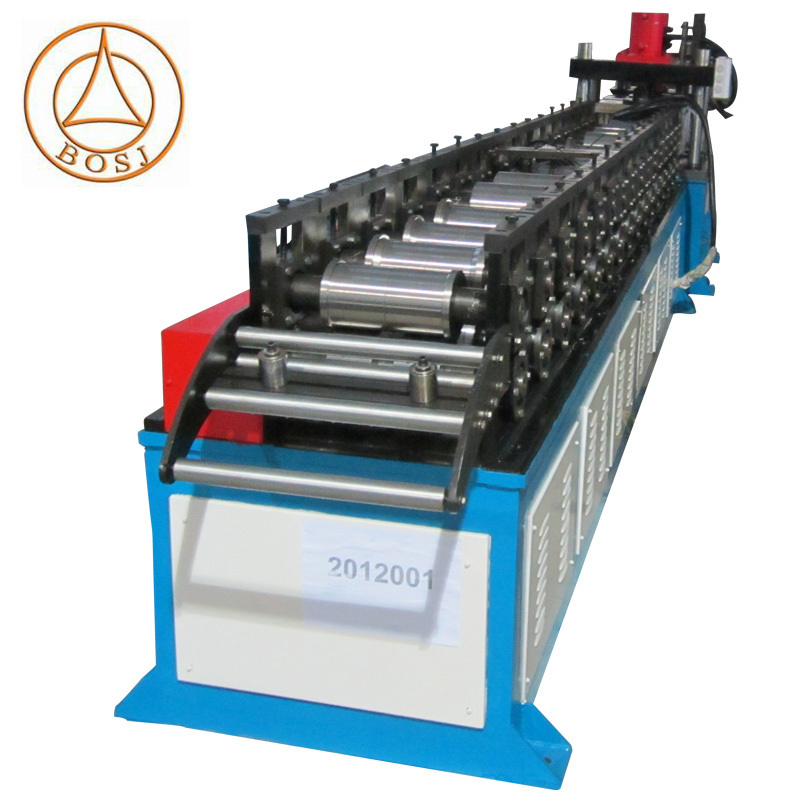

Volume Control Damper VCD frame Roll Forming Making Machine
Equipment is composed of de-coiler ,feed system ,gap and cut off , forming machine,collection table ,electric control system , etc.
Technical parameter of equipment main parts
Auto-decoiler
Load capacity: 2 T
Inner diameter of coil: 490-510mm
Outer diameter≤1200mm
Servo feed and punching unfilled corner parts
a , Servo motor : used Mitsubishi Servo motor , power: 1.0kw
b , Punching unfilled corner die: 4 pillars punching die
c , Material of punching die: Cr12. quenching treatment
Feeding: power 0.37kw
Forming machine
Forming frame
Material of forming mould: GCr15, quenching treatment: rigidity: HRC56-62º
Motor: 7.5kw frequency conversion engine
Electric control: PLC system
Equipment is composed of de-coiler ,feed system ,gap and cut off , forming machine,collection table ,electric control system , etc.
