Certificate Number
|
SHBST2011071111YEC-1
|
|
Organiztion
|
Certificate of compliance
|
|
Product
|

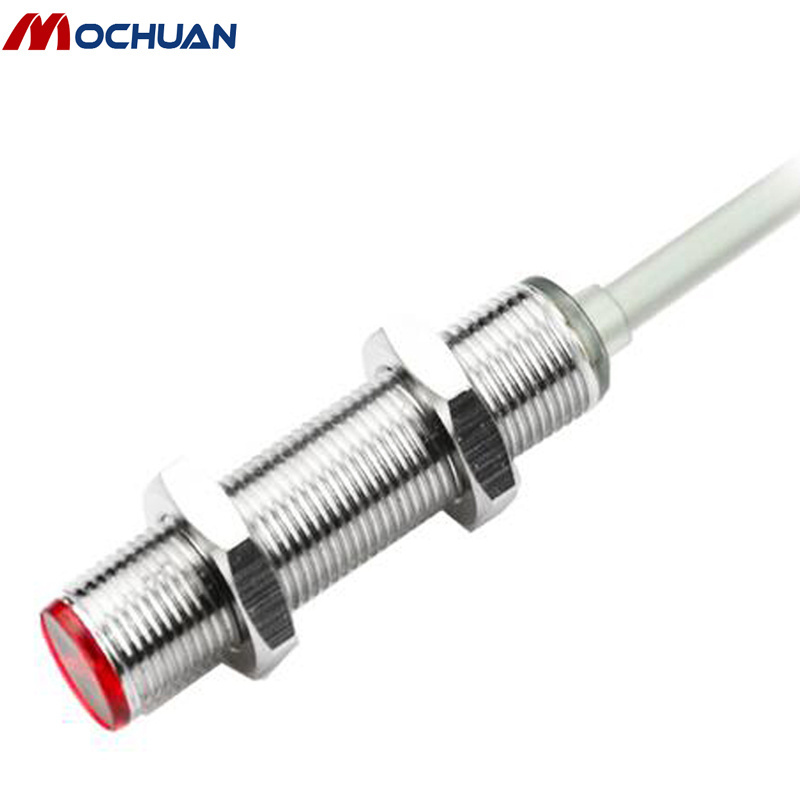

SENSOR
|
|
Test Standard
|
EN61000-6-4:2007
EN61000-3-2:2006+A2:2009
|
|
|
EN61000-3-3:2008
EN61000-6-2:2005
|
|
Date
|
15/07/2011
|
|
Type
|
Dimension
|
M12
|
|
|
|
||||
|
working voltage
|
|
10-30V DC
|
|
|
|
||||
|
light source
|
|
Far Infrared（880nm）
|
|
|
|
||||
|
Conduction pressure drop
|
|
≦2.5V
|
|
|
|
||||
|
maximum current output
|
|
150mA
|
|
|
|
||||
|
response time
|
|
1mS
|
|
|
|
||||
|
short circuit protection
|
|
support
|
|
|
|
||||
|
Polarity reverse protection
|
|
support
|
|
|
|
||||
|
operating temperature
|
|
-25~+55℃
|
|
|
|
||||
|
Protection class
|
|
IP67
|
|
|
|
||||
|
Standard test object
|
|
correlation：A circle with a diameter of 8mm
diffuse reflection：10*10cm white paper
|
|
|
|
||||
|
Material of shell
|
Material of shell
|
Nickel plated copper
|
|
PBT
|
|
||||
|
Connect way
|
Connect way
|
2m PVC(4x0.15m㎡)
|
M12 connector
|
2m PVC(4x0.15m㎡)
|
M12 connector
|
||||
|
Through Beam
5.2m
|
launcher
|
MCHLT-C12-DE
|
MCHLT-C12-DE-E4
|
MCHLT-P12-DE
|
MCHLT-P12-DE-E4
|
||||
|
|
NPN NO
|
MCHLT-C12-NL
|
MCHLT-C12-NL-E4
|
MCHLT-P12-NL
|
MCHLT-P12-NL-E4
|
||||
|
|
NPN OFF
|
MCHLT-C12-ND
|
MCHLT-C12-ND-E4
|
MCHLT-P12-ND
|
MCHLT-P12-ND-E4
|
||||
|
|
PNP NO
|
MCHLT-C12-PL
|
MCHLT-C12-PL-E4
|
MCHLT-P12-PL
|
MCHLT-P12-PL-E4
|
||||
|
|
PNP OFF
|
MCHLT-C12-PD
|
MCHLT-C12-PD-E4
|
MCHLT-P12-PD
|
MCHLT-P12-PD-E4
|
||||
|
Through Beam 10m
|
launcher
|
MCHLT2-C12-DE
|
MCHLT2-C12-DE-E4
|
MCHLT2-P12-DE
|
MCHLT2-P12-DE-E4
|
||||
|
|
NPN NO
|
MCHLT2-C12-NL
|
MCHLT2-C12-NL-E4
|
MCHLT2-P12-NL
|
MCHLT2-P12-NL-E4
|
||||
|
|
NPN OFF
|
MCHLT2-C12-ND
|
MCHLT2-C12-ND-E4
|
MCHLT2-P12-ND
|
MCHLT2-P12-ND-E4
|
||||
|
|
PNP NO
|
MCHLT2-C12-PL
|
MCHLT2-C12-PL-E4
|
MCHLT2-P12-PL
|
MCHLT2-P12-PL-E4
|
||||
|
|
PNP OFF
|
MCHLT2-C12-PD
|
MCHLT2-C12-PD-E4
|
MCHLT2-P12-PD
|
MCHLT2-P12-PD-E4
|
||||
|
diffuse reflection 200mm
|
NPN ON+OFF
|
MCHLD-C12-NS
|
MCHLD-C12-NS-E4
|
MCHLD-P12-NS
|
MCHLD-P12-NS-E4
|
||||
|
|
PNP ON+OFF
|
MCHLD-C12-PS
|
MCHLD-C12-PS-E4
|
MCHLD-P12-PS
|
MCHLD-P12-PS-E4
|
||||
|
Reflector 500mm with filter
|
NPN ON+OFF
|
MCHLR-C12-NS
|
MCHLR-C12-NS-E4
|
MCHLR-P12-NS
|
MCHLR-P12-NS-E4
|
||||
|
|
PNP ON+OFF
|
MCHLR-C12-PS
|
MCHLR-C12-PS-E4
|
MCHLR-P12-PS
|
MCHLR-P12-PS-E4
|
||||
|
Reflection plate 1.5 m
|
NPN ON+OFF
|
MCHLD2-P12-PS-E4
|
MCHLR2-C12-NS-E4
|
MCHLR2-C12-NS-E4
|
MCHLR2-P12-NS-E4
|
||||
|
|
PNP ON+OFF
|
MCHLR2-C12-PS
|
MCHLR2-C12-NS-E4
|
MCHLR2-P12-PS
|
MCHLR2-P12-NS-E4
|
||||
