Can do flame polishing
Broad Transmission Spectrum
Low Thermal Expansion Coefficient
Quartz Rod can work long time with 1100°C
No bubble, no airline
High Corrosion Resistance Transmission of visible light>85%
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Model Number:
-
Rod
-
Silicon Dioxide Component:
-
99.99
-
Transmittance:
-
above 80%
-
Product Name:
-
Quartz glass rod
-
Material:
-
SiO2
-
Work Temperature:
-
1100 Degrees Celsius
-
Length:
-
Customers' Requirements
-
Wall thickness:
-
Accept Custom
-
Density:
-
2.2g/cm3
-
Size:
-
Client Requirement
-
Usage:
-
Industrial
-
Package:
-
Wooden Cases
-
OEM:
-
Accept
Quick Details
-
Type:
-
Clear Quartz Rod
-
Application:
-
optical
-
Outside Diameter:
-
custom
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Model Number:
-
Rod
-
Silicon Dioxide Component:
-
99.99
-
Transmittance:
-
above 80%
-
Product Name:
-
Quartz glass rod
-
Material:
-
SiO2
-
Work Temperature:
-
1100 Degrees Celsius
-
Length:
-
Customers' Requirements
-
Wall thickness:
-
Accept Custom
-
Density:
-
2.2g/cm3
-
Size:
-
Client Requirement
-
Usage:
-
Industrial
-
Package:
-
Wooden Cases
-
OEM:
-
Accept

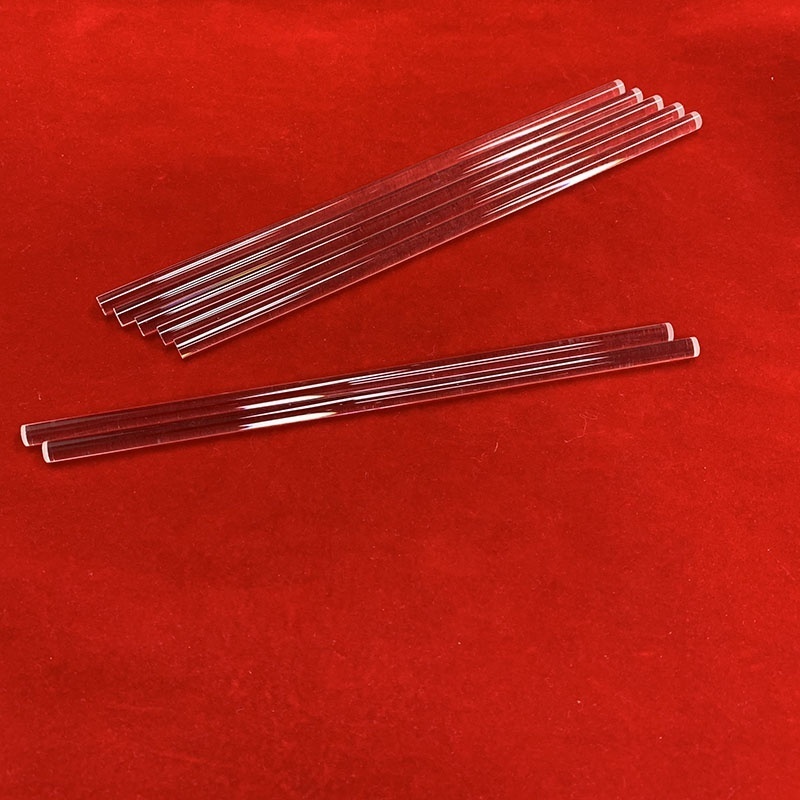

Product Description
|
Product Name
|
Transparent Quartz Glass Rod
|
|
Material
|
99.99% Pure Quartz Crystal
|
|
Color
|
Transparent
|
|
Size
|
OEM: All different sizes can be done according to customer's demand.
|
|
Aplication
|
Widely used in electric light source, semiconductor, Solar, optical communications, military
industry, metallurgy, chemical, environmental protection and other. |
Chemical composition (unit:ppm)
|
Al
|
Fe
|
K
|
Li
|
Cu
|
Na
|
B
|
Ca
|
Mg
|
OH
|
|
17
|
1.6
|
3.8
|
0.74
|
0.1
|
1.8
|
0.02
|
1.7
|
1.5
|
≤150
|
Physical Properties:
|
Property Content
|
Unit
|
Property Index
|
|
|
g/cm³ |
2.21 |
|
Tensile Strength |
Pa(N/㎡) |
4.9×107 |
|
Compression Strength |
Pa |
>1.1×109 |
|
(20℃-300℃)
Coefficient of Thermal Expansion |
cm/cm℃ |
5.5×10-7 |
|
Thermal Conductivity |
W/m℃ |
1.4 |
|
Specific Heat |
J/kg℃ |
680 |
|
Softening Point |
℃ |
1700 |
|
Annealing Point |
℃ |
1210 |
Advantage of Quartz Rod:
Quartz rods are used in the manufacture of semiconductors, electric light sources, semi-conductive communication devices, lasers,optical instruments, laboratory instruments, electrical equipment, medical equipment and chemical instruments for high temperature and corrosion resistance, chemical, electronics, metallurgy, building materials and defense industries. The application is very extensive.
We supply all kind quartz product, containing: quartz glass tube, quartz glass plate, quartz glass crucible, quartz glass cuvette and all kinds quartz labware. If you need sample, please contact us.
We can customize products according to your requirements!
