Quick Details
-
Features:
-
Waterproof
-
Material:
-
Plastic
-
Mounting Hole Diameter:
-
30*22
-
Rating:
-
20A/250VAC or 30A/250VAC
-
Contact Resistance:
-
Max 50mOhm
-
Dielectric Strength:
-
Min 1500AC for 1 min
-
LED Voltage::
-
12V/24V/110V/220V
-
Insulation Resistance::
-
Min 100MOhm
-
Switch Function:
-
ON-OFF/ON-ON/ON-OFF-ON
-
Opeartion Temperature:
-
-25~+80 Centigrade
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Cntopsun/ODM
-
Model Number:
-
KCD4-201
-
Features:
-
Waterproof
-
Material:
-
Plastic
-
Mounting Hole Diameter:
-
30*22
-
Rating:
-
20A/250VAC or 30A/250VAC
-
Contact Resistance:
-
Max 50mOhm
-
Dielectric Strength:
-
Min 1500AC for 1 min
-
LED Voltage::
-
12V/24V/110V/220V
-
Insulation Resistance::
-
Min 100MOhm
-
Switch Function:
-
ON-OFF/ON-ON/ON-OFF-ON
-
Opeartion Temperature:
-
-25~+80 Centigrade
Product Description

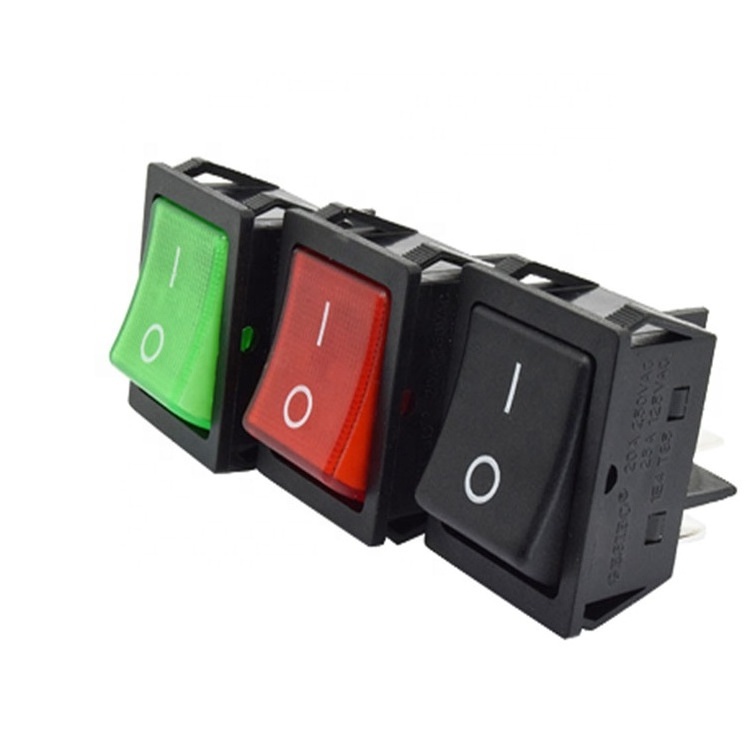

KCD4-201 30x22 20A 250VAC Heavy Duty KCD4 Rocker Switch DPST ON OFF latching with 12V 220V Red Green Blue LED Illuminated
Mounting Hole Diameter: 30x22mm
Switch Function: ON-OFF/ ON-ON/ ON-OFF-ON
Rating: 20A/250VAC
Operation Temperature: -25~80℃
Insulation Resistance: ≥100MΩ
Dielectric Strength: 1500AC for 1min
LED Color: Red/Green/Blue/White/Yellow/No led
LED Voltage: 12V/24V/110V/220V
