Quick Details
-
Model Number:
-
2W025-08-D
-
Brand Name:
-
EPSolid
-
Standard or Nonstandard:
-
Standard
-
name:
-

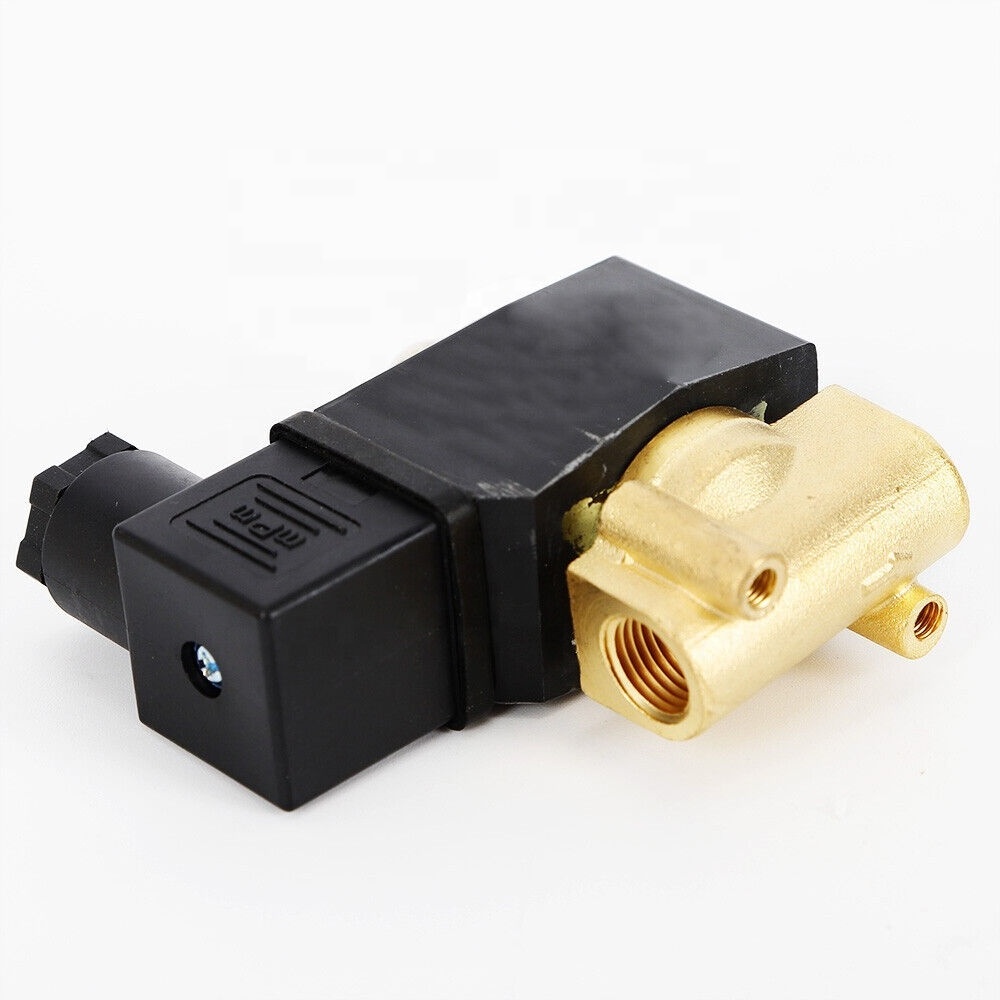

electromagnetic solenoid valve
Quick Details
-
Port Size:
-
1/8"~1/4"
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
2W025-08-D
-
Brand Name:
-
EPSolid
-
Standard or Nonstandard:
-
Standard
-
name:
-
electromagnetic solenoid valve
Specification
| Model | 2W025-06 | 2W025-08 | 2W040-10 | 2WH012-06 | 2WH012-08 | 2WH020-10 |
| Working medium | Air Water Oil Gas |
| Acting type | Direct acting type |
| Control style | Normal close |
| Orifice | 2.5mm | 4mm | 1.2mm | 2mm |
| CV Value | 0.23 | 0.6 | 0.05 | 0.15 |
| Joint size | G1/8 | G1/4 | G3/8 | G1/8 | G1/4 | G3/8 |
| Working pressure | Air,water,oil:0-0.7Mpa | Air,water,oil:0-2.0Mpa |
| Max.pressure | 1.0Mpa | 3.5Mpa |
| Working temperature | -5~80℃(the temperature can reach -5~150℃ if change the seal) |
| Valve body | Brass |
| Seal material | NBR,EPDM,FKM |
Start working at differential pressure, the UW series valve has a completely range of solenoid valves from 1/8" to 2". UW series valve is among the oldest history valves, we have stainless steel valve and brass valve for your reference, both of SS valve and brass valve can be normal close valve and normal open valve. This series solenoid valves are most popular valves used for many conditions especially in the water treatment system.
| Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Working medium | Air, water, oil, gas | ||||||
| Motion pattern | Direct action type | ||||||
| Type |
Normally Closed or Normally Open |
||||||
| Aperture of flow rate(mm) | 16 | 16 | 20 | 25 | 35 | 40 | 50 |
| CV | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Port size | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Operation fluid viscosity | Below 20 CST | ||||||
| Working pressure | Water/Oil:0~5 bar, Air/Gas:0~7 bar | ||||||
| Max.pressure | 10.5 bar | ||||||
| Temperature range | -5~80 degrees centigrade | ||||||
| Standard voltage |
DC12V, DC24V, AC24V, AC36V, AC110V, AC220 V, AC380V |
||||||
| Votage range | Plus or minus 10% | ||||||
| Material of valve body | Brass/stainless steel/plastic | ||||||
| Material of oil seal | NBR,EPDM or FKM | ||||||
