Quick Details
-
Sensing Method:
-
Zirconium Dioxide
-
Temperature Range:
-
-100-250
-
Output type:
-
Voltage: 0-10V DC
-
Heater Voltage:
-
4.55V DC
-
Usage:
-
Continuous Emission Monitoring Systems
Quick Details
-
Place of Origin:
-
United Kingdom
-
Name:
-
Oxygen Sensor system
-
Operating Ranges:
-
0.1 to 25% O2
-
Sensing Method:
-
Zirconium Dioxide
-
Temperature Range:
-
-100-250
-
Output type:
-
Voltage: 0-10V DC
-
Heater Voltage:
-
4.55V DC
-
Usage:
-
Continuous Emission Monitoring Systems

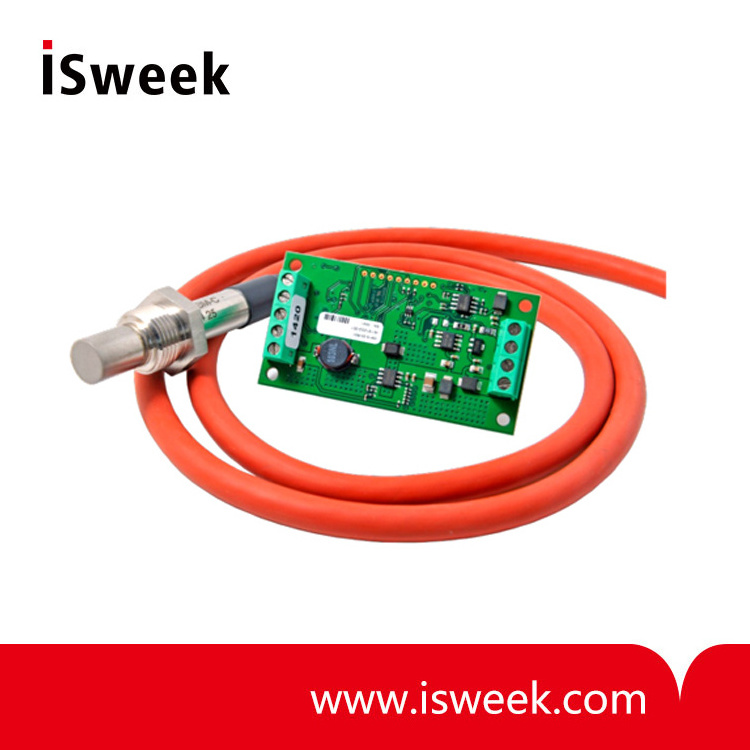

Zirconia Oxygen Sensor System For Continuous Emission Monitoring Systems (CEMS)
O2S-FR-T2-18BM-C-RS485
Zirconia Oxygen Sensor System
Description
The Zirconia Oxygen Sensor System offers a complete solution, removing the need for customers to develop their own electronics. Frequently used in combustion control systems, burning coal, oil, gas and biomass and in oxygen generation systems.
The Zirconia Oxygen Sensor System consists of SST’s fast response (<4s T90) zirconium dioxide (ZrO2) screw fit sensor in conjunction with the OXY-LC oxygen sensor interface board.
O2S-FR-T2-18BM-C-RS485
Zirconia Oxygen Sensor System
FEATURES
• Fast response zirconium dioxide (ZrO2) sensor in conjunction with the OXY-LC oxygen sensor interface board
• Long life, non-depleting technology
• Integral heating element
• High accuracy
• Linear output signal
O2S-FR-T2-18BM-C-RS485
Zirconia Oxygen Sensor System
BENEFITS
• No reference gas required
• No need for temperature stabilisation
• Probe mounting positions available;
28mm
• M18x1.5 screw mounting
O2S-FR-T2-18BM-C-RS485
Zirconia Oxygen Sensor System
TECHNICAL SPECIFICATIONS
|
Supply voltage
RS485 output variant: |
8-28V DC |
| Supply current |
600mA max. at 24V DC
1.2A max. at 12V DC |
| Digital output | RS485 (Modbus RTU) |
| Pump impedance at 700°C | < 6kΩ |
| Permissible gas temperature | -100°C to +250°C |
| Gas flow rate | 0-10m/s |
| Operating pressure limits | 260-1260mbar absolute |
| Mounting thread | M18 x 1.5 |
O2S-FR-T2-18BM-C-RS485
Zirconia O2 Sensor System
OUTPUT VALUES
| Oxygen range (Modbus RTU) | 0.1-100% O2 |
| Accuracy after calibration | 0.5% O2 |
| Output resolution | 0.01% O2 |
| Response time (10-90% step) | < 4s |
| Initial warm up time (till stable output) | 5 - 10mins |
|
Output inactive start up delay (heater warm up)
From Standby to ON mode (RS485 only): |
20s |
Zirconia Oxygen Sensor System For Continuous Emission Monitoring Systems (CEMS)
