Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-

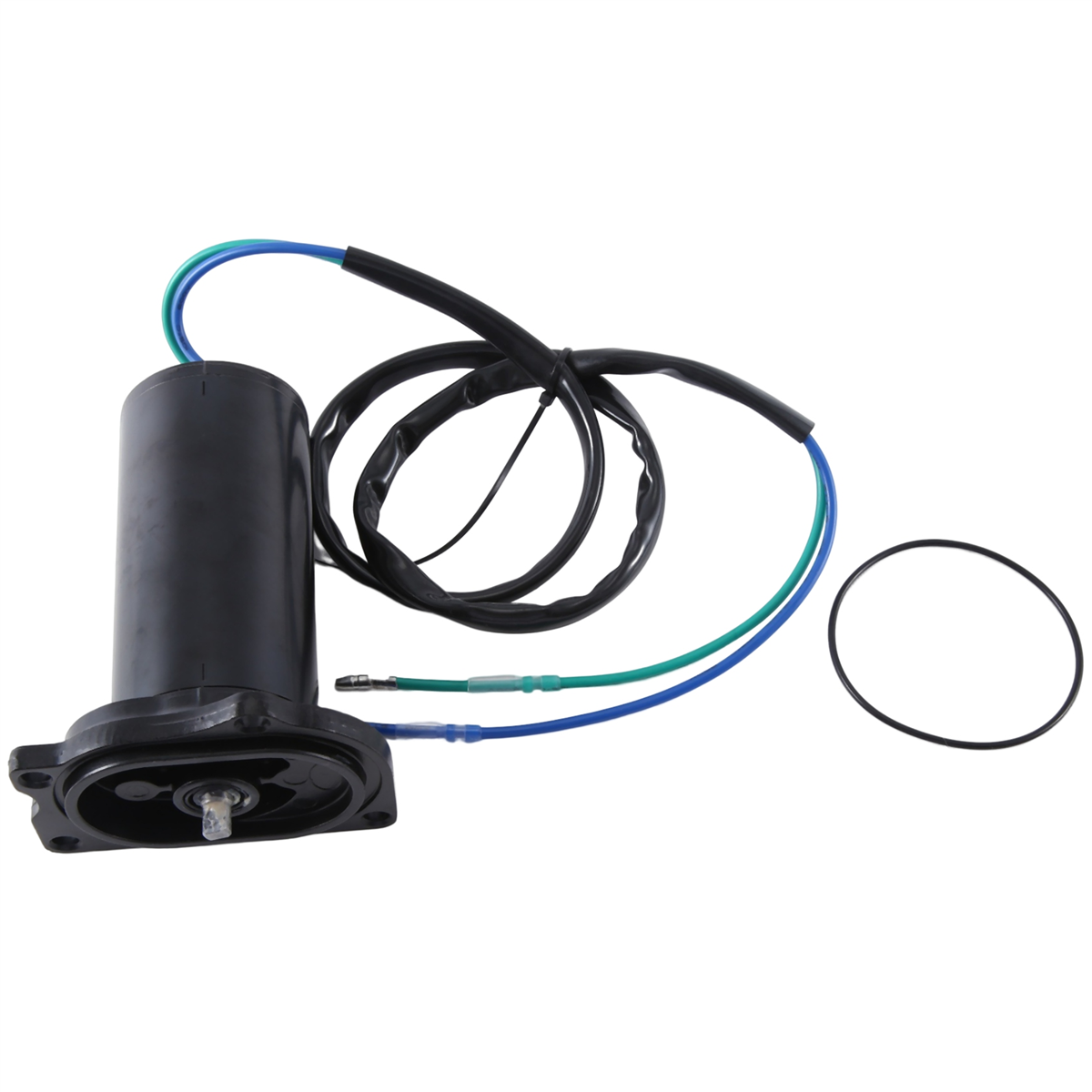

Tilt&Trim Motor
-
Manufacturer:
-
LingHe
-
Item Weight:
-
1.3KG
-
Packing:
-
1PCS/BOXES
-
Warranty:
-
1 Year
-
Voltage:
-
12V
-
OEM:
-
827675A1 /18-6286/430-22034
-
Package Dimensions:
-
9.88X5.43X5.08 inches
-
Maximum Horsepower:
-
75 Horsepower
Quick Details
-
Dimensions (L x W x H) (mm):
-
Field Housing OD: 52 mm / 2.047
-
Brand Name:
-
LingHe
-
Model Number:
-
LH-TTM21
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
Tilt&Trim Motor
-
Manufacturer:
-
LingHe
-
Item Weight:
-
1.3KG
-
Packing:
-
1PCS/BOXES
-
Warranty:
-
1 Year
-
Voltage:
-
12V
-
OEM:
-
827675A1 /18-6286/430-22034
-
Package Dimensions:
-
9.88X5.43X5.08 inches
-
Maximum Horsepower:
-
75 Horsepower
Details Images
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Engine
|
4 Stroke
|
|
Fuel Type
|
Gasoline
|
|
Cylinders
|
2
|
|
Engine Position
|
OUTBOARD
|
|
Dimensions (L x W x H) (mm)
|
Field Housing OD: 52 mm / 2.047 in Overall Length: 134 mm / 5.276 in Shaft OD: 7.2 mm / 0.283 in Shaft Notes: 3.8 mm Slotted
|
|
Brand Name
|
LingHe
|
|
Model Number
|
LH-TTM21
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Product Name
|
Tilt&Trim Motor
|
|
Manufacturer
|
LingHe
|
|
Item Weight
|
1.3KG
|
|
Packing
|
1PCS/BOXES
|
|
Warranty
|
1 Year
|
|
Voltage
|
12V
|
|
OEM
|
827675A1 /18-6286/430-22034
|
|
Package Dimensions
|
9.88X5.43X5.08 inches
|
|
Maximum Horsepower
|
75 Horsepower
|
Fit For
Replaces OEM Numbers
* API Marine PT498NM
* Arco Marine 6255
* Mercury Marine 827675A1
* MES Motorcyle & Marine T1074M, T1074M-OE
* Remy Small Motor RT05033
* Sierra Marine 18-6286
* API Marine PT498NM
* Arco Marine 6255
* Mercury Marine 827675A1
* MES Motorcyle & Marine T1074M, T1074M-OE
* Remy Small Motor RT05033
* Sierra Marine 18-6286
* FORCE 40EL 1995-1999, 40ELPT 1995-1999, 50EL 1995-1999, 50ELPT 1995-1999
* MERCURY MARINE 25.0HP - SN 0G590000 Thru 0G760299 All, 25.0HP - SN 0G760300 Thru 0T408999 All, 25.0HP - SN 0T409000 Thru
1B344298 All, 30.0HP - SN 0G055314 Thru 0G760299 All, 30.0HP - SN 0G760300 Thru 0T979999 All, 30.0HP - SN 0T980000 Thru
0T999999 All, 30.0HP - SN 1B000001 & Up All, 30.0HP / Jet - SN 0G590000 Thru 0G760299 All, 30.0HP / Jet - SN 0G760300 Thru
0T408999 All, 40.0HP - SN 0G231123 Thru 0G760299 All, 40.0HP / 2cyl - SN 0G055314 Thru 0G760299 All, 40.0HP / 2cyl - SN
0G760300 Thru 0T979999 All, 40.0HP / 2cyl - SN 0T980000 Thru 0T999999 All, 40.0HP / 2cyl - SN 1B000001 & Up All, 40.0HP / 3cyl
- SN 0G590000 Thru 0G760299 All, 40.0HP / 3cyl - SN 0G760300 Thru 0T979999 All, 40.0HP / 3cyl - SN 0T980000 Thru 1B209735 All,
45.0HP Bodensee - SN 0G231123 Thru 0G760299 All, 50.0HP - SN 0G231123 Thru 0G760299 All, 50.0HP / 3cyl - SN 0G590000 Thru
0G760299 All, 50.0HP / 3cyl - SN 0G760300 Thru 0T979999 All, 50.0HP / 3cyl - SN 1B000001 & Up All, 55.0HP / 3cyl - SN 0G590000
Thru 0G760299 All, 55.0HP / 3cyl - SN 0G760300 Thru 0T979999 All, 60.0HP / 3cyl - SN 0G590000 Thru 0G760299 All, 60.0HP /
Bigfoot / 3cyl - SN 0G590000 Thru 0G760299 All, All Models All
