Quick Details
-
Dimension(L*W*H):
-
550*670*555mm
-
Weight:
-
200kg
-
Name:
-
Portable ac hose crimping tool harbor freight
-
Crimping range:
-
6-51mm
-
Operating Mode:
-
Manual
-
Crimping force:
-
500T
-
Free dies:
-
10 Sets
-
Max opening diameter:
-
114mm
-
Accuracy:
-
0.01mm
-
Volume of oil tank:
-
1L
-
System Pressure:
-
70 MPa
-
Power:
-
0 kw
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
CYT
-
Voltage:
-
0 V
-
Dimension(L*W*H):
-
550*670*555mm
-
Weight:
-
200kg
-
Name:
-
Portable ac hose crimping tool harbor freight
-
Crimping range:
-
6-51mm
-
Operating Mode:
-
Manual
-
Crimping force:
-
500T
-
Free dies:
-
10 Sets
-
Max opening diameter:
-
114mm
-
Accuracy:
-
0.01mm
-
Volume of oil tank:
-
1L
-
System Pressure:
-
70 MPa
-
Power:
-
0 kw
-
Certification:
-
CE

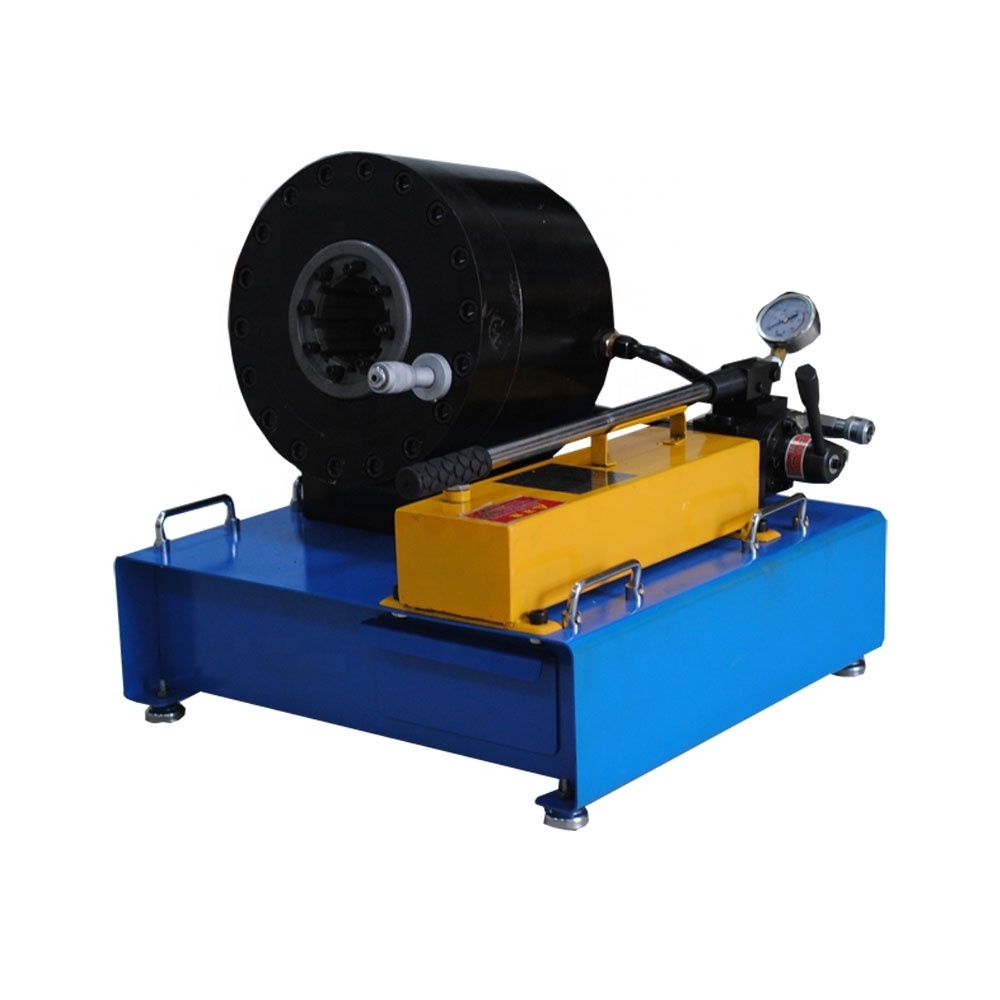

Portable ac hose crimping tool harbor freight
The machine is a portable type machine which is simply designed and convenient for operating and carring.It takes manual pump of extra high pressure as power source.Therefore it's suitable for the outdoor work and production without electric power.
|
Crimping Range
|
Φ6~Φ51
|
|
Quantity of Dies
|
10 Sets
|
|
Item No. Of Dies
|
15.19.23.26.31.36.41.47.55.60
|
|
Accuracy
|
0.01mm
|
|
Volume of oil tank
|
1L
|
|
System Pressure
|
70Mpa
|
|
Power
|
0kw
|
|
Voltage
|
0v
|
|
Buckling Force
|
500T
|
|
Efficiency
|
10pcs/h
|
|
Machine Dimension
|
550*670*555
|
|
Package Dimension
|
650*770*750
|
|
Net Weight
|
200kg
|
|
Gross Weight
|
210kg
|
|
Maximum Open Diameter
|
114mm
|
|
The max open tolerance
|
±30mm
|
Operating Arm
Pressure Gage
1. When crimping, place the joint in the center of the mold as much as possible, and do not press it on the hex nut.
2. Prevent tools and other foreign objects from entering the tube head.
3. Each time after the work is completed, the eight mold bases must be opened to the maximum extent, so that the spring can be opened and the spring is maintained, and the oil cylinder is also in a state of pressure relief to extend the life of the oil seal.
Maintenance of
Portable ac hose crimping tool harbor freight
1.The hydraulic oil of the fuel tank should be replaced when the hydraulic oil manufacturer stipulates the aging time, or visually check the oil level gauge. If the hydraulic oil has been oxidized black, it must be replaced.
2. Always apply anti-wear lubricant to the moving surface of the mold base.
3. For non-pressurizing machine working time, please cover the dust cover to prevent debris from entering the mold base
Packing Details : Portable ac hose crimping tool harbor freight is usually packed by PE film firstly and then wooden case.
Delivery Details : 10-12 days after order of manual hydraulic hose crimping machine.
1.Q:Do you have CE certificate?
A:Yes,the following is our CE certificate.
2.Q:What's the packing of the machine?
A: we use the fumigation wooden case.
3.Q:What mode of payment do you usually accept?
A:Usually we accept T/T in advance.
4.Q:How long does it usually take you to make delivery?
A:within 7 days after receiving your payment,we will send the machine to our
customer.
5.Q:Do you offer other products?
A:Yes,we have rubber hose ,PVC hose , hose fittings and so on.
