Quick Details
-
Voltage:
-
380V
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qiangxin
-
Model Number:
-
QX2000
-
Warranty:
-
1 Year
-
Spray Booth/Paint Booth:
-
Professional Factory
-
Certificate:
-
CE,ISO
-
Customs Code:
-
8419899090
-
Usage:
-
Painting/Baking(optional)
-
Heating System:
-
Infrared lamps/Diesel burner(optional)
-
Filters:
-
Prefilter/High Efficiency Filter/Environmental Activated Carbon Filter
-
Air Fans:
-
3 Sets
-
Color:
-
Red,Blue,White
-
Lighting System:
-
LED Light
-
Customize:
-
Avilable
Quick Details
-
Power:
-
14.5kw
-
External Size:
-
7000*5500*3300mm(L/W/H)
-
Internal Size:
-
6900*3900*2650mm(L/W/H)
-
Voltage:
-
380V
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qiangxin
-
Model Number:
-
QX2000
-
Warranty:
-
1 Year
-
Spray Booth/Paint Booth:
-
Professional Factory
-
Certificate:
-
CE,ISO
-
Customs Code:
-
8419899090
-
Usage:
-
Painting/Baking(optional)
-
Heating System:
-
Infrared lamps/Diesel burner(optional)
-
Filters:
-
Prefilter/High Efficiency Filter/Environmental Activated Carbon Filter
-
Air Fans:
-
3 Sets
-
Color:
-
Red,Blue,White
-
Lighting System:
-
LED Light
-
Customize:
-
Avilable
Product Description
|
Description for car spray booth
|
|
|
|
|||
|
Outside Dimensions(mm)
|
7000*5500*3300(L*W*H)
|
Inside Dimensions(mm)
|
6900*3900*2650(L*W*H)
|
|||
|
Entrance Door Door(mm)
|
3 folds,size is 2850×2,600mm (W×H), with tempered glass embedded into square frame.Equipped with Handle & Lock
|
Personal Door(mm)
|
Size is 700×1700mm(W×H), with tempered glass embedded into square frame. Equipped with Handle & Anti-Explosion Lock
|
|||
|
Total Power
|
14.5 KW
|
Voltage
|
380V/50 or 60Hz/3Ph, etc.
|
|||
|
Wall Panel
|
50mm EPS with colorful steel skin board, anti-flame and heat-insulation, steel
sheet thickness: 0. 476mm |
50mm Rock-wool with colorful steel skin board, anti-flame and heat-insulation, steel sheet thickness: 0. 476mm
|
|
|||
|
Basement
|
Full Grid Plates (Galvanized)* 5 rows, surface galvanised treatment, WIth 2 ramps,each size 630x2,000mm(WxL)
|
0.8mm Galvanized Steel Sheet
|
|
|||
|
Air Make-up System
|
Air-Intake Fan System
|
2*4kw turbo fan installed with centrifugal copper motor; air capacity:25000m3/h
|
|
|||
|
|
Air-Exhaust Fan System
|
1*5.5kw centrifugual copper motor fan; air capacity:
15000m3/h
|
|
|||
|
|
Air Capacity
|
25000m³/h
|
|
|||
|
|
Air Flowing Speed
|
0.25m/s
|
|
|||
|
Purification System
|
Air intake Filter/Prefilter
|
Air inlet with prefilter: dust holding capacity 400g/㎡; class G4; Filtration precision ≥5μm; Flammability (GB/T1759-2006) F1; Temp.resistant <100
|
|
|||
|
|
High efficient Filter
|
Ceiling equipped with CC-G650 type high-efficiency filter: dust holding capacity 600g/㎡; class F5; Filtration precision ≥1μm;
Flammability (GB/T1759-2006) F1; Temp.resistant<100 |
|
|||
|
|
Air-Exhaust Filter
|
Outlet with filter cotton: dust holding capacity 550g/㎡; Class according(DIN en779) G2、G3、G4; Filtration precision ≥5μm; Temp.resistant<100
|
|
|||
|
Heating System
|
Heating Exchanger
|
Heating Exchanger*1unit,made of 1.5mm stainless steel SUS304,round type multi-cycle,radiatorpipe,equipped with safe anti-explosion
hole,1M stainless steel chimney, 3M long bended galvanised steel chimney & 1 pc of rain shield. |
|
|||
|
|
Heating Burner
|
Diesel Burner*1unit (Italy RIELLO, G20), Heating capacity: 260,000Kcal/H
Belimo NMU230 20NM electric damper |
|
|||
|
|
Max. Heating Temperature:75℃
|
|
|
|||
|
Lighting System
|
Ceiling Light
|
8 Units, 8*4=32 pcs, 18w LED lamp, with Light Fixtures, anti-explosion designed
|
|
|||
|
|
|
|
|
|||
|
|
Illumination
|
≥1000LUX
|
|
|||
|
Control System
|
Switched Control Panel
|
Button type control box, with main switch
Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc. |
|
|||

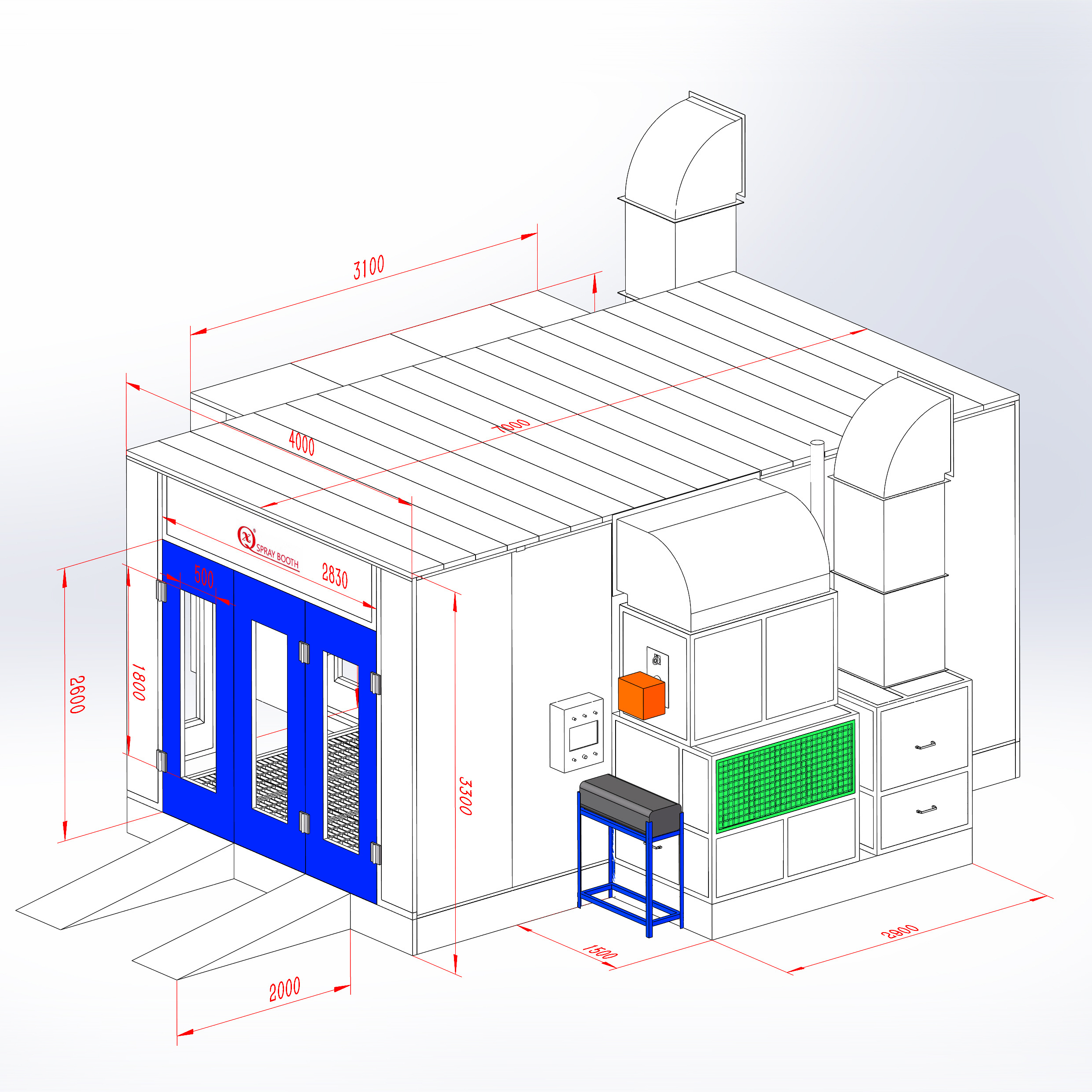

Front side of car spray booth
Bevel of spraying and baking booth
Side view of paint and bake room
Product Details
Package&Shipping
One set car spray booth with 21-22CBM 3 Tons can be loaded in 20 feet container.
