Quick Details
-
Brand Name:
-
JC Power
-
Model Number:
-
MPK80-100-JC
-
Work Time (h):
-
The local illumination time
-
Max PV Power:
-
4160W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE
-
Warranty:
-
3 years
-
Protection:
-
Temperature
-
OEM:
-
Accepted
-
Display:
-
Color LCD
-
Communication:
-
RS485/WiFi (optional)/GPRS (optional)
-
Battery type:
-
Lead-acid/Lithium/LiFePO4 Battery
-
Product name:
-

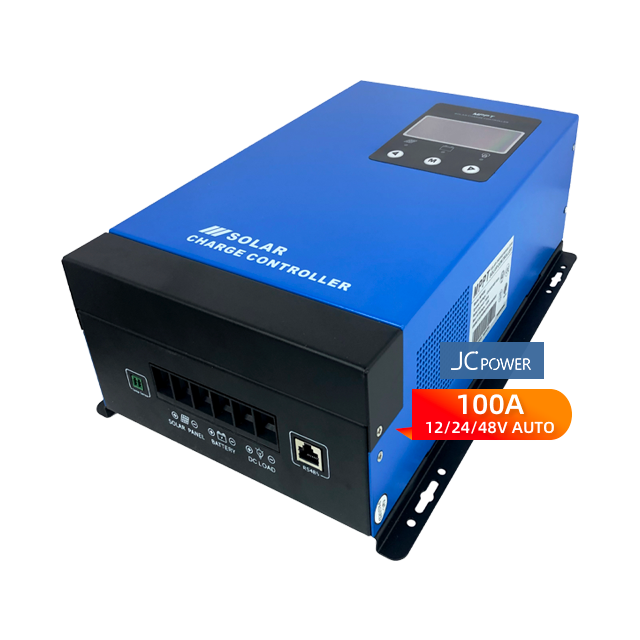

MPPT Hybrid Solar Charge Controller
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
System voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Rated Current:
-
50A/60A/80A/100A
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Solar System Controller
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JC Power
-
Model Number:
-
MPK80-100-JC
-
Work Time (h):
-
The local illumination time
-
Max PV Power:
-
4160W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE
-
Warranty:
-
3 years
-
Protection:
-
Temperature
-
OEM:
-
Accepted
-
Display:
-
Color LCD
-
Communication:
-
RS485/WiFi (optional)/GPRS (optional)
-
Battery type:
-
Lead-acid/Lithium/LiFePO4 Battery
-
Product name:
-
MPPT Hybrid Solar Charge Controller
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
System voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Rated Current:
-
50A/60A/80A/100A
Products Description
Hefei Jingchi New Energy Co., Ltd.
JC Power is an international high-tech growth enterprise, specializing in the R & D and sales of solar panels, solar inverters,controllers and pv solar power generation and battery storage systems, and providing one-stop solutions for pv products.
|
Model
|
MPK2-40
|
|
MPK2-60
|
|
MPK2-80
|
|
MPK2-100
|
|
||||||||
|
INPUT
|
|
|
|
|
|
|
|
|
||||||||
|
Maximum PV open circuit voltage
|
150V (at the lowest temperature)
138V (at standard temperature of 25℃)
|
|
|
|
|
|
|
|
||||||||
|
Minimum PV voltage
|
20V/40V/60V/80V
|
|
|
|
|
|
|
|
||||||||
|
Rated charge current
|
30A
|
40A
|
50A
|
60A
|
60A
|
80A
|
80A
|
100A
|
||||||||
|
OUTPUT
|
|
|
|
|
|
|
|
|
||||||||
|
System voltage
|
12V/24/36/48V AUTO
|
|
|
|
|
|
|
|
||||||||
|
Rated discharge current
|
15A
|
20A
|
25A
|
30A
|
40A
|
40A
|
50A
|
50A
|
||||||||
|
Own consumption
|
≤35mA
|
|
|
|
|
|
|
|
||||||||
|
MPPT highest accuracy
|
99%
|
|
|
|
|
|
|
|
||||||||
|
Maximum charging efficiency
|
97%
|
|
|
|
|
|
|
|
||||||||
|
Charging control mode
|
Multi-stage (MPPT, Absorption, Float, Equalization, CV)
|
|
|
|
|
|
|
|
||||||||
|
Float charge
|
13.8V/27.6V/41.4V/55.2V
|
|
|
|
|
|
|
|
||||||||
|
Absorption charge
|
14.4V/28.8V/43.2V/57.6V
|
|
|
|
|
|
|
|
||||||||
|
Equalization charge
|
14.6V/29.2V/43.8V/58.4V
|
|
|
|
|
|
|
|
||||||||
|
Load disconnection (LVD)
|
10.8V/21.6V/32.4V/43.2V
|
|
|
|
|
|
|
|
||||||||
|
Load reconnection (LVR)
|
12.6V/25.2V/37.8V/50.4V
|
|
|
|
|
|
|
|
||||||||
|
Load control mode
|
Normal, light control, light and timing control, timing control, reverse light control
|
|
|
|
|
|
|
|
||||||||
|
Light control point voltage
|
5V/10V/15V/20V
|
|
|
|
|
|
|
|
||||||||
|
Battery type
|
GEL, SLD, FLD AND USR (default), LifePO4, Lithium batteries customization
|
|
|
|
|
|
|
|
||||||||
|
APPEARANCE & ENVIRONMENT
|
|
|
|
|
|
|
|
|
||||||||
|
Human interface
|
LCD with backlight, 3 buttons
|
|
|
|
|
|
|
|
||||||||
|
Cooling mode
|
AL alloy heat sink and cooling fan
|
|
|
|
|
|
|
|
||||||||
|
Wiring
|
High current copper terminal ≤25mm2 (3AWG)
|
|
|
|
|
|
|
|
||||||||
|
Temperature probe
|
Line length 3m
|
|
|
|
|
|
|
|
||||||||
|
Communication mode
|
RS485, RJ45 port
|
|
|
|
|
|
|
|
||||||||
|
Working temperature range
|
-20 ~ +55 ℃
|
|
|
|
|
|
|
|
||||||||
|
Storage temperature range
|
-30 ~ +80 ℃
|
|
|
|
|
|
|
|
||||||||
|
Humidity
|
10% - 90% no condendation
|
|
|
|
|
|
|
|
||||||||
|
Product Size
|
250*190*95mm
|
|
280*210*100mm
|
|
350*230*112mm
|
|
350*230*112mm
|
|
||||||||
|
Product Weight
|
2.3kg
|
|
3.5kg
|
|
4.6kg
|
|
4.6kg
|
|
||||||||
