Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
2.2kw
-
Weight:
-
75 KG
-
Dimension(L*W*H):
-
48*52*104CM
-
Name:
-
Universal crusher grinding machine
-
Material:
-
Steel Stainless
-
Raw material:
-
Grain/herb/Rice/sugar ,ect
-
Application:
-
Grain Processing
-
Type:
-
Automatic
-
Capacity:
-
10-700kg/h
-
Grinding size:
-
10-120mesh
-
Speed:
-
4200r/min
-
weight:
-
75kg
-
Whatsapp:
-
0086-18737189043
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hanchuang
-
Production Capacity:
-
10-120
-
Voltage:
-
220V/380V
-
Power:
-
2.2kw
-
Weight:
-
75 KG
-
Dimension(L*W*H):
-
48*52*104CM
-
Name:
-
Universal crusher grinding machine
-
Material:
-
Steel Stainless
-
Raw material:
-
Grain/herb/Rice/sugar ,ect
-
Application:
-
Grain Processing
-
Type:
-
Automatic
-
Capacity:
-
10-700kg/h
-
Grinding size:
-
10-120mesh
-
Speed:
-
4200r/min
-
weight:
-
75kg
-
Whatsapp:
-
0086-18737189043
commercial grain hammer mill pulverizer wheat milling machine rice herb powder grinder
+8618737189043
Introduction of rice crusher machine
This machine has extensive application and is widely used for pharmaceutical industry, chemical industry, food stuff industry, grain industry and so on.
This machine uses the relative motion between movable and fixed teeth disc, and the raw materials is grinded by the comprehensive actions such as impacted by teeth, friction, impact between raw materials, finally the raw material are crushed. Its features are simple and solid structure, stable running, high grinding efficiency. The crushed raw material can be powder can be got through exchanging screen with different mesh. Its inner w discharged through the grinding chamber. Moreover, different size of granual or all is processed finely, so it is smooth and level, which can overcome the shortcoming existed in the old model such as roughness, accumulated powder. It makes the production of medicines, foodstuff and chemicals and so on in conformity with the requirements of state standard and GMP.
Water cooling device, and conveyer screw can be equipped according to customer’s needs.
Working principle
The electrical motor of the grinderdrives the main shaft to rotate at a high speed and spin off the material into the grinder, The material is ground between the moving plate and the fixed plate by striking, shearing and grinding, The ground material is carried by the air flow through the screen to the collecting bag. The size of the particle can beadjusted by changing the screen with different screen holes .
Parameters of sugar crusher machine
|
Model |
HC-200 |
HC-300 |
HC-400 |
HC-500 |
HC-600 |
|
Material |
304 stainless steel |
||||
|
Voltage(V) |
220/380 |
380 |
380 |
380 |
380 |
|
Power(kw) |
2.2 |
5.5 |
7.5 |
11 |
22 |
|
Speed (r/min) |
4200 |
||||
|
Fineness of processed powder(mesh) |
10-120 |
||||
|
Capacity(kg/h) |
10-120 |
30-200 |
50-300 |
70-500 |
100-700 |
|
Dimension(cm) |
48*52*104 |
75*60*126 |
78*70*135 |
80*90*155 |
120*100*200 |
|
Weight(kg) |
75 |
180 |
260 |
320 |
400 |
Details of grinding machine
Application of grain grading machine

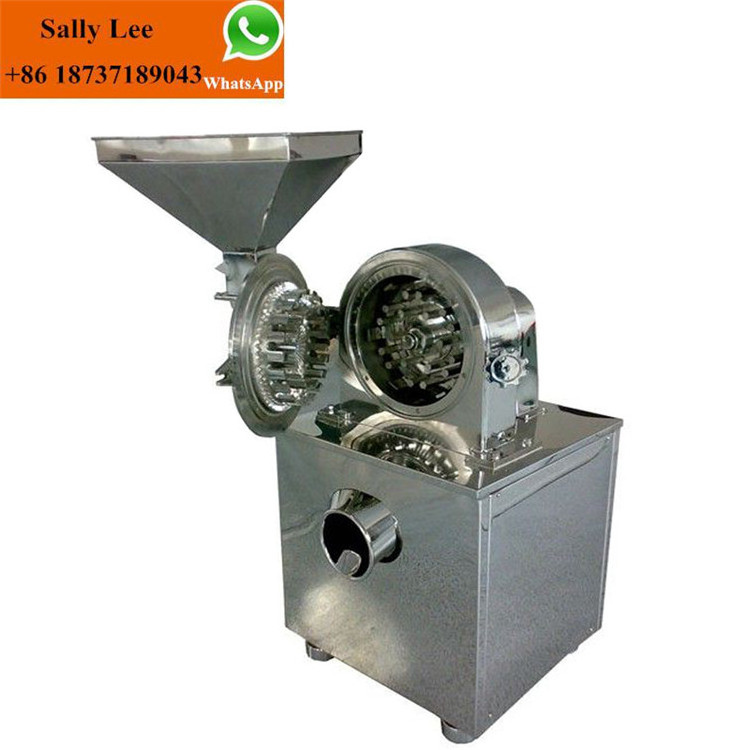

Machine picture:
Packaging & Shipping
1. Testing Machine before package
2. Package : Inside plastic bag, outside wooden case.
3. Shipping: By sea, By air.
By sea: if customer not urgently the machine, we advice by sea, even though by sea took time is long, but by sea reduce much money about the freight, and it is good for customer if the machine is heavy and big size.
By air: it is faster than by sea, but its freight is higher much than by sea, so this kind of type always suggest for light, small size and urgently demand machine.
Pre-sale service
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service :
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
