The best quality Wuhan Raycus fiberlaser generator, Raycus brand lasersource, with a normal working life of100.000 hours. You can also chooseMax or IPG
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, BMP, DXF, DXP, PLT, Other, Dwg
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CKD
-
Dimension(L*W*H):
-
102*77*158cm
-
Weight (KG):
-
110 KG
-
Core Components:
-
laser source
-
Laser source:
-
Optical Fiber
-
Wavelength:
-
1064nm
-
Laser Power:
-
20W/30W/50W/100W
-
Power supply:
-
220V/50Hz
-
Software:
-
JCZ EZCAD
-
Function:
-
Engraving Metal Materials
-
Accessories:
-
Rotary table if in need
-
Marking format:
-
110*110/200*200/300*300mm
-
Marking Speed:
-
5000mm/s
-
Marking Area:
-
110mm*110mm
Quick Details
-
Engraving Area:
-
300*300mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
5000mm/s
-
Graphic Format Supported:
-
AI, BMP, DXF, DXP, PLT, Other, Dwg
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CKD
-
Dimension(L*W*H):
-
102*77*158cm
-
Weight (KG):
-
110 KG
-
Core Components:
-
laser source
-
Laser source:
-
Optical Fiber
-
Wavelength:
-
1064nm
-
Laser Power:
-
20W/30W/50W/100W
-
Power supply:
-
220V/50Hz
-
Software:
-
JCZ EZCAD
-
Function:
-
Engraving Metal Materials
-
Accessories:
-
Rotary table if in need
-
Marking format:
-
110*110/200*200/300*300mm
-
Marking Speed:
-
5000mm/s
-
Marking Area:
-
110mm*110mm

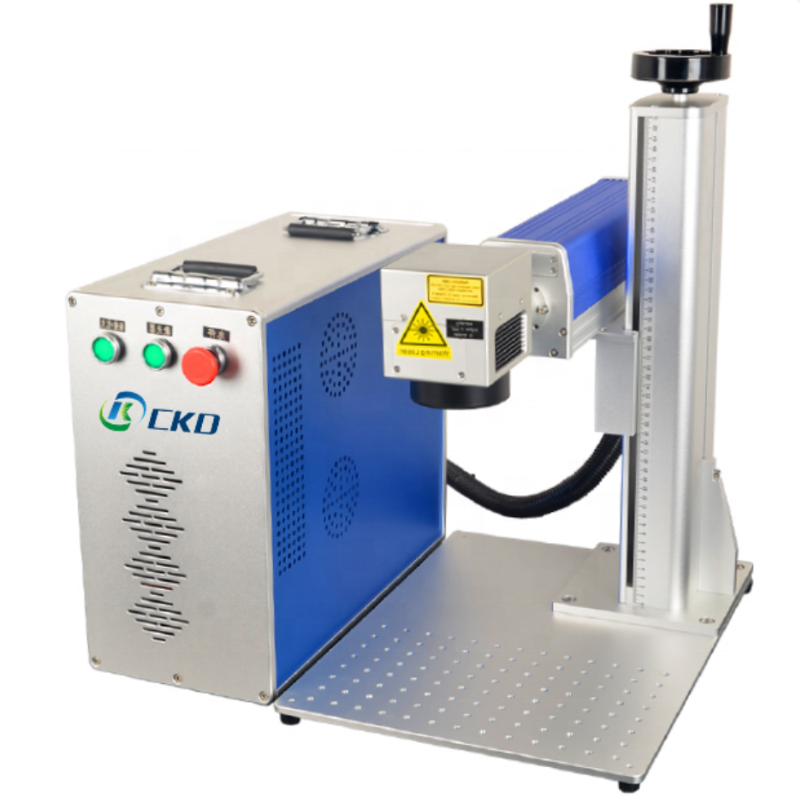

Fiber Laser Marking Machine 30W-200W Power Metal Laser Engraving Machine for Jewelry Knife
Product Description
Product Description
The split type fiber laser marking machine is a professional laser marking equipment that integrates optical, mechanical, and electronic technologies. It uses imported key components, has a novel design, unique structure, convenient operability, high-frequency modulation, high marking speed and accuracy, and stable performance. This device is mainly used for permanent marking of various metal and non-metal materials, with a laser wavelength of 1064nm, a laser power of 20W, a modulation frequency of 20KHz to 80KHz, a maximum scanning speed of 7000mm/s, a repeated positioning accuracy of 0.001mm, and a marking range of 110mm x 110mm. In addition, it also has safety features such as overcurrent protection, over temperature protection, and over voltage protection, and can work continuously for more than 16 hours.
Product Structure
*
Ruler: A measuring tool, often used for precision measurement.
* Galvo System: A system of galvanometers that control the deflection of the laser beam.
* Elevating Lens: A lens that can be raised or lowered to adjust the focus or working distance.
* Lifting Hand: A manual control or mechanism used to adjust the height of components like the lens or galvo system.
* Control Panel: An interface with buttons, switches, and/or a display for operating the machine.
* Heat Emission Hole: Openings designed to facilitate the release of heat from the machine.
* Control Cabinet: An enclosure that houses the electronic controls and components of the machine.
* Working Table: The surface on which the material or workpiece to be marked is placed.
* Rotary Axis: An axis that allows for rotational movement of the workpiece for marking around its circumference.
* Galvo System: A system of galvanometers that control the deflection of the laser beam.
* Elevating Lens: A lens that can be raised or lowered to adjust the focus or working distance.
* Lifting Hand: A manual control or mechanism used to adjust the height of components like the lens or galvo system.
* Control Panel: An interface with buttons, switches, and/or a display for operating the machine.
* Heat Emission Hole: Openings designed to facilitate the release of heat from the machine.
* Control Cabinet: An enclosure that houses the electronic controls and components of the machine.
* Working Table: The surface on which the material or workpiece to be marked is placed.
* Rotary Axis: An axis that allows for rotational movement of the workpiece for marking around its circumference.
Laser Source
Galvo Head
Scanner head has the goodrunning stability, high positioningaccuracy,fast marking speed, stronganti-interference ability
F-theta Len
s
Lens from Singapore,1064nm f-254mmhighest light transmission make sure nopower reduction,The default match is110*110mm, you can choose thespecification according to yourrequirements
Ruler
RulerHigh precision sizeMore precise and detailed
Control Button
Humanized control systemn,easyto oper-ate,safe and convenient.
dust proof design
|
Material/Application Type
|
Description and Suitability
|
|
Metal Materials
|
Common metals (iron, copper, magnesium, aluminum) and precious metals (gold, silver, titanium, platinum) can be marked.
|
|
Metal Oxides
|
Capable of marking various metal oxide materials.
|
|
High-Hardness Alloys
|
Suitable for engraving high-hardness alloy materials.
|
|
Oxides
|
Marks can be applied to oxide materials.
|
|
Electroplated Materials
|
Appropriate for marking materials with electroplating layers.
|
|
Coated Materials
|
The surface of coated materials can be marked.
|
|
ABS Plastics
|
Suitable for marking on engineering plastics such as ABS.
|
|
Epoxy Resin
|
Marking can be done on materials like epoxy resin.
|
|
Ink Materials
|
Capable of marking on ink materials.
|
|
Engineering Plastics
|
Suitable for surface marking on a variety of engineering plastics.
|
|
Deep Marking
|
Q-Pulse lasers are suitable for applications requiring deeper marking due to high pulse energy.
|
|
Black Marking on Anodized Aluminum
|
MOPA lasers enable precise marking and are suitable for creating black marks on anodized aluminum.
|
|
Color Marking on Stainless Steel
|
MOPA lasers are also suitable for creating colored marks on stainless steel and other materials.
|
Product Advantages
1. High photoelectric conversion efficiency: Compared to other types of lasers, fiber lasers have higher photoelectric conversion efficiency, which means that there is less loss in the process of converting electrical energy into laser energy, thereby saving energy and reducing operating costs.
2. Good beam quality: The beam quality produced by the fiber laser marking machine is superior to other types of lasers, which makes the marking lines more precise and improves the clarity and aesthetics of the marking.
3. Wide application range: Fiber laser marking machine can mark various metal and non-metal materials, including ordinary metals, rare metals, metal oxides, high hard alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, engineering plastics, etc. This demonstrates its color adaptability and versatility.
4. Fine marking and special material marking: The pulse width and repetition frequency of MOPA fiber lasers are independently adjustable, allowing for flexible modulation of pulse waveforms. They are suitable for fine marking and special materials such as alumina blackening and stainless steel coloring.
5. High stability and reliability: Q-Pulse (Q-switched) fiber lasers and MOPA fiber lasers both exhibit high stability under
long-term operation, which is crucial for industrial grade applications that require 24/7 continuous operation.
6. Easy to operate and maintain: The design of the laser marking machine allows users to operate through software, and some components such as LD modules can be replaced on-site, which simplifies the maintenance process and reduces downtime.
7. Security: The document mentions multiple safety measures, such as avoiding direct laser contact with the eyes, prohibiting unrelated reflections and scattered objects from approaching the equipment, etc. This indicates that the fiber laser marking machine has taken operational safety into consideration in its design.
8. Strong environmental adaptability: Although the document specifically mentions not to operate in damp or explosive gas environments, an appropriate operating environment can ensure the long-term stable operation of the machine, which reflects its adaptability to different working environments.
2. Good beam quality: The beam quality produced by the fiber laser marking machine is superior to other types of lasers, which makes the marking lines more precise and improves the clarity and aesthetics of the marking.
3. Wide application range: Fiber laser marking machine can mark various metal and non-metal materials, including ordinary metals, rare metals, metal oxides, high hard alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, engineering plastics, etc. This demonstrates its color adaptability and versatility.
4. Fine marking and special material marking: The pulse width and repetition frequency of MOPA fiber lasers are independently adjustable, allowing for flexible modulation of pulse waveforms. They are suitable for fine marking and special materials such as alumina blackening and stainless steel coloring.
5. High stability and reliability: Q-Pulse (Q-switched) fiber lasers and MOPA fiber lasers both exhibit high stability under
long-term operation, which is crucial for industrial grade applications that require 24/7 continuous operation.
6. Easy to operate and maintain: The design of the laser marking machine allows users to operate through software, and some components such as LD modules can be replaced on-site, which simplifies the maintenance process and reduces downtime.
7. Security: The document mentions multiple safety measures, such as avoiding direct laser contact with the eyes, prohibiting unrelated reflections and scattered objects from approaching the equipment, etc. This indicates that the fiber laser marking machine has taken operational safety into consideration in its design.
8. Strong environmental adaptability: Although the document specifically mentions not to operate in damp or explosive gas environments, an appropriate operating environment can ensure the long-term stable operation of the machine, which reflects its adaptability to different working environments.
Specifications
|
Laser Power
|
20W/30W/50W/100W
|
|
Repeatability
|
±0.002
|
|
Pulse Duration
|
2-500ns
|
|
Beam Quality M²
|
<2
|
|
Mark Range
|
200x200mm/110x110mm/300x300mm
|
|
Marking Speed
|
≤5000mm/s
|
|
Laser Model
|
JPI MOPA 20W
|
|
Cooling Method
|
Built-in air cooling
|
|
Rotary Axis
|
D80
|
|
Power Consumption
|
≤500W
|
|
Laser Wavelength
|
1064nm
|
|
Operating System
|
Win7/Win8/Win10
|
|
Pulse Repetition
|
1-4000kHz
|
|
Minimum Line Width
|
0.03mm
|
Sample
Customer Visits And Services
Certifications
Factory
Product Packaging
FAQ
Q1: Could I visit your factory?
A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from
bao'an International airport to our factory.
Q2: How many years do you do this business?
A2: From 2008.
Q3: Does your factory have the design & development capacities, we need customized products?
A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.
We can make customized products especially for you; Please kindly contact us for more details.
Q4: What is payment terms?
A4: 100% T/T advanced.
Q5: About shiping?
A5: 3-10 days after payment for standard products, please consult our sales for customized products.
Q6: How about your after service?
A6: Our engineers who has long time professional experience and sales will help you within 24h.
Q7: Do you have patents or core technology?
A7: Yes, for details, please contact our sales.
Q8: Where have you sold your products?
A8: Europe, Americas, Africa, and Asia.
A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from
bao'an International airport to our factory.
Q2: How many years do you do this business?
A2: From 2008.
Q3: Does your factory have the design & development capacities, we need customized products?
A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.
We can make customized products especially for you; Please kindly contact us for more details.
Q4: What is payment terms?
A4: 100% T/T advanced.
Q5: About shiping?
A5: 3-10 days after payment for standard products, please consult our sales for customized products.
Q6: How about your after service?
A6: Our engineers who has long time professional experience and sales will help you within 24h.
Q7: Do you have patents or core technology?
A7: Yes, for details, please contact our sales.
Q8: Where have you sold your products?
A8: Europe, Americas, Africa, and Asia.
