Quick Details
-
Production Capacity:
-
5-30 bags/min
-
Weight (KG):
-
200
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soonfer Machine
-
Dimension(L*W*H):
-
1100(L)*700(W)*1600(H)mm
-
Product name:
-
Screw counting packing machine
-
Main Function:
-
Counting Forming Filling Sealing Packing
-
Film width:
-
Max.320mm
-
Bag length:
-
50-180mm
-
Bag width:
-
40-150mm
-
Bag type:
-
Back sealing bag, 3/4 side seal bag.
-
Dimension:
-
1100(L)*700(W)*1600(H)mm
-
Machine weight:
-
200kg
-
Machine material:
-
Stainless steel / SS304
-
Power:
-
220V, 50Hz, 3kw
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, counting
-
Packaging Type:
-
Bags, Film, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Production Capacity:
-
5-30 bags/min
-
Weight (KG):
-
200
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soonfer Machine
-
Dimension(L*W*H):
-
1100(L)*700(W)*1600(H)mm
-
Product name:
-
Screw counting packing machine
-
Main Function:
-
Counting Forming Filling Sealing Packing
-
Film width:
-
Max.320mm
-
Bag length:
-
50-180mm
-
Bag width:
-
40-150mm
-
Bag type:
-
Back sealing bag, 3/4 side seal bag.
-
Dimension:
-
1100(L)*700(W)*1600(H)mm
-
Machine weight:
-
200kg
-
Machine material:
-
Stainless steel / SS304
-
Power:
-
220V, 50Hz, 3kw

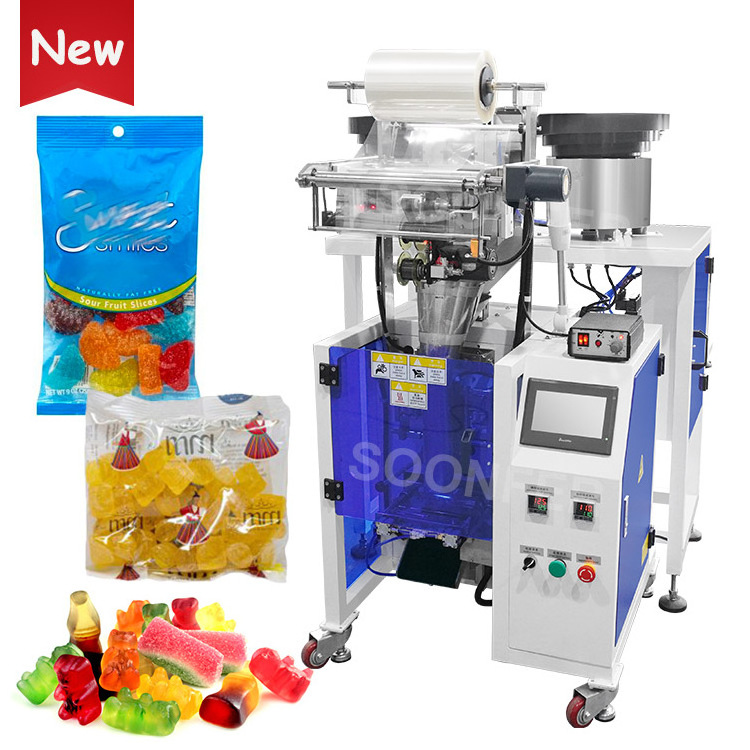

Good quality automatic hard candy packing machine back seal sachet bag small bear gummy candy counting packaging machine
Plastic/Rubber Parts
: wall anchor, rubber o-rings, toys, building bricks, small plastic parts.
Hardware Parts
: pin, bolt, diode, hex key, screws, nuts, washers, hardware components, metal parts etc.
Daily necessities
: bottle caps, medicine bottles, gummy bears, furniture fittings, door handle, hinge, etc.
Others
: small hardware or plastic parts, regular shape or irregular shape of parts.
Main Features
1. Can achieve automatic disposing, counting, measuring, filling and packing. The counting quantity is adjusted freely. The counting precision is tested more than 99.9%.
2. Using intelligent PLC control, the machine operates efficiently and stably.
3. Adopting optical fiber counting method and mechanical counting is optional. Counting device can be controlled by cylinder or solenoid switch.
4. When the hopper is empty the machine will give an alarm or stop.
5. Using brand electrical components, the quality is stable and reliable, and the service life is long.
|
Packing speed
|
5-30 bags/min
|
|
Bag length
|
50-180mm
|
|
Bag width
|
40-150mm
|
|
Film width
|
Max.320mm
|
|
Packaging material
|
OPP/CPP, OPP/PE, PET/PE, aluminized film, etc.
|
|
Air pressure
|
0.4-0.6Mpa
|
|
Machine size
|
1100(L)*700(W)*1600(H)mm
|
|
Machine weight
|
200kg
|
|
Power
|
220V, 50/60Hz, 3kw
|
The number of vibration plates can be customized according to customer needs, and is suitable for mixed packaging of 1-40 varieties of materials.
It is suitable for packaging films of various materials. The installation and replacement of packaging films is simple and convenient.
All use Infrared fiber for counting, its accuracy rate is 99.9%.
Intelligent PID independent temperature control is adopted, and the sealing temperature can be adjusted to suit different packaging materials.
The knife seat is driven by an air cylinder, which effectively prevents the packaging material from sticking to the knife, and the bag is tightly sealed without leakage.
Instructions and operating videos
are prepared for you
Foshan Soonfer Intelligent Equipment Co., Ltd. is located in Nanhai District, Foshan City, Guangdong Province, China. It is a technology-based enterprise focusing on the research and development, design, manufacture, sales and service of automatic packaging equipment.
The founder and team of the company have nearly 10 years of experience in R&D, production, sales and maintenance of packaging equipment. After years of development, the company has more than 20 product categories, as well as a number of certificates and technical patents, including TUV factory certification and CE export certification, TrustPass quality supplier, pilot valve patents, PSA pressure swing adsorption system patents, etc.
FAQ
Q1. How to find a machine suitable for my product?
Please tell us your requirement, such as the product weight, the bottle type and size or the expected productivity.
Q2: How can we make sure about the machine quality after placing the order?
Q3: What is your after sales services?
We offer you high quality machines with 1 year warranty and supply life-long technical support. And normal machine is properly adjusted before dispatch. The machine could be use immediately after simple installation. Free training advices and technical support will be sent to you via manual instruction or videos.
Q4: We are afraid you won't send us the machine after payment?
Please note that we have 14 years experience in this industry and have offical bussines license and certificates. At the same time, we could place the order through Alibaba Trade Assurance which could gurantee your interest.
Please tell us your requirement, such as the product weight, the bottle type and size or the expected productivity.
Q2: How can we make sure about the machine quality after placing the order?
Before delivery, we will send you some pictures and videos to you for confirmation, and also you could arrange for quality
checking by yourself or third party inspection organization.
Q3: What is your after sales services?
We offer you high quality machines with 1 year warranty and supply life-long technical support. And normal machine is properly adjusted before dispatch. The machine could be use immediately after simple installation. Free training advices and technical support will be sent to you via manual instruction or videos.
Q4: We are afraid you won't send us the machine after payment?
Please note that we have 14 years experience in this industry and have offical bussines license and certificates. At the same time, we could place the order through Alibaba Trade Assurance which could gurantee your interest.
