Quick Details
-
Max. Resolution:
-
203 dpi (8 dots/mm)
-
Brand Name:
-
GODEX
-
Model Number:
-
G500U
-
Place of Origin:
-
Taiwan, China
-
Color:
-
Black
-
Interface:
-
USB
-
Print style:
-
Black And White
-
Dot Matrix Printer Type:
-
Ticket printers
-
Printing Method:
-
Thermal Transfer & Direct Thermal Printing
-
Application:
-
Department Stores
Quick Details
-
Max Paper Size:
-
4.25" (108 mm)
-
Black Print Speed:
-
5IPS (127 mm/s)
-
Color Print Speed:
-
Null
-
Max. Resolution:
-
203 dpi (8 dots/mm)
-
Brand Name:
-
GODEX
-
Model Number:
-
G500U
-
Place of Origin:
-
Taiwan, China
-
Color:
-
Black
-
Interface:
-
USB
-
Print style:
-
Black And White
-
Dot Matrix Printer Type:
-
Ticket printers
-
Printing Method:
-
Thermal Transfer & Direct Thermal Printing
-
Application:
-
Department Stores
Godex G500U thermal label and barcode printer 108mm printing width can support to print Jewelry tag and clothing tag sticker mac

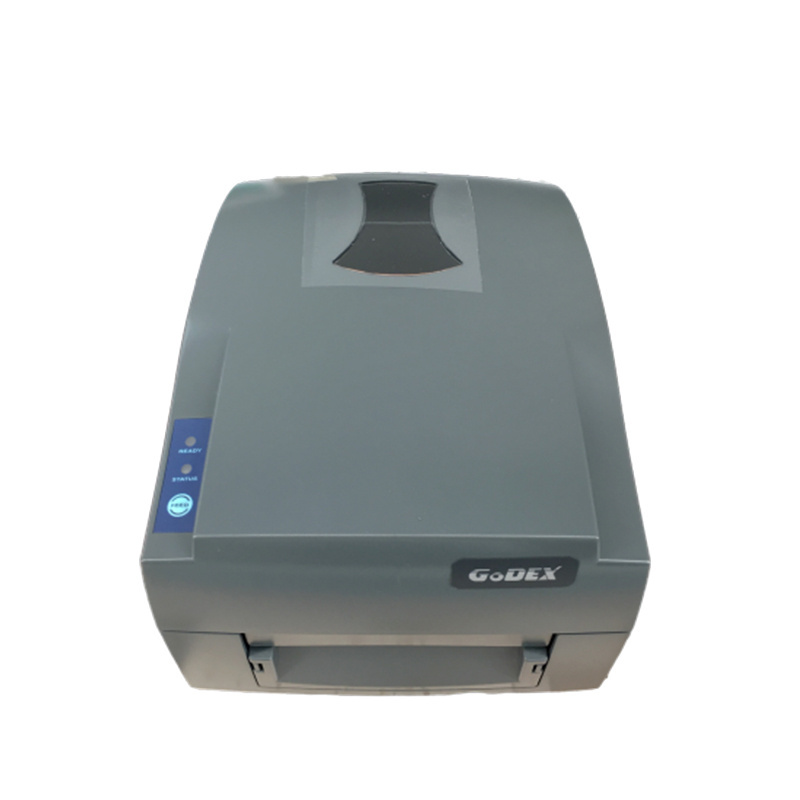

Product picture show
Specifications
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 5IPS (127 mm/s) |
| Print Width | 4.25" (108 mm) |
| Print Length | Min. 0.16" (4 mm)**; Max. 68" (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 8MB Flash (4MB for user storage) / 16MB SDRAM |
| Sensor Type | Adjustable reflective sensor. Fixed transmissive sensor, central aligned |
| Media |
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1" (25.4 mm) Min. - 4.64" (118 mm) Max. Thickness: 0.003" (0.06 mm) Min. - 0.01" (0.25 mm) Max. Label roll diameter: Max. 5" (127 mm) Core diameter: 1", 1.5", 3" (25.4 mm, 38.1 mm, 76.2 mm) |
| Ribbon |
Types: Wax, wax/resin, resin
Length: 981` (300 m) Width: 1.18" Min - 4.33" (30 mm - 110 mm) Max Ribbon roll diameter.: 2.67" (68 mm) Core diameter: 1" (25.4 mm) |
| Printer Language | EZPL, GEPL, GZPL auto switch |
| Software |
Label design software: QLabel-IV (for EZPL only), GoLabel (for EZPL only)
Driver: Windows 2000, XP, Vista, 7, 8,Windows Server 2003 & 2008 DLL: Windows 2000, XP and Vista |
| Resident Fonts |
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Download Fonts |
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Barcodes |
1-D Bar codes:
Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1 DataBar 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code |
| Code Pages |
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode (UTF8, UTF16) |
| Graphics |
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode (UTF8, UTF16) |
| Interfaces |
USB + Parallel Port
USB + Serial Port + Ethernet |
| Control Panel |
Two bi-color status-LEDs: Ready, Status
Control key: FEED |
| Power | Auto Switching 100-240VAC, 50-60Hz |
| Environment |
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity |
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing. |
| Agency Approvals | CE(EMC), FCC Class A, CB, cUL, CCC |
| Dimension |
Length: 11.2" (285 mm)
Height: 6.8" (171 mm) Width: 8.9" (226 mm) |
| Weight | 6 lbs (2.72Kg) ,excluding consumables |
| Options |
Cutter Module
Label Dispenser External label roll holder for 10" (250 mm) O.D. label rolls External label rewinder |
Warranty
1 year factory warranty
