- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Holy Laser
-
Marking Head Brand:
-
customize
-
Weight (KG):
-
200 KG
-
Marking Area:
-
100mm*100mm, 150*150mm
-
Core Components:
-
Laser Source
-
Laser Power:
-
3W/5W/10W/15W
-
Laser source:
-
JPT, Inngu, etc
-
Marking Speed:
-
7000mm/s-20000mm/s
-
Marking Depth:
-
0.01-2mm
-
Power supply:
-
AC220V +10% / 50HZ
-
After-sales Service Provided:
-
Video Technical Support
-
Applicable Material:
-
Metal Non-metal Materials
-
After Warranty Service:
-
Technical Support
-
Keywords:
-
uv cup laser engraving machine
-
Machine type:
-
Standard Desktop
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, JPG,PNG
-
Laser Type:
-
UV
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Holy Laser
-
Marking Head Brand:
-
customize
-
Weight (KG):
-
200 KG
-
Marking Area:
-
100mm*100mm, 150*150mm
-
Core Components:
-
Laser Source
-
Laser Power:
-
3W/5W/10W/15W
-
Laser source:
-
JPT, Inngu, etc
-
Marking Speed:
-
7000mm/s-20000mm/s
-
Marking Depth:
-
0.01-2mm
-
Power supply:
-
AC220V +10% / 50HZ
-
After-sales Service Provided:
-
Video Technical Support
-
Applicable Material:
-
Metal Non-metal Materials
-
After Warranty Service:
-
Technical Support
-
Keywords:
-
uv cup laser engraving machine
-
Machine type:
-
Standard Desktop
Product Overview

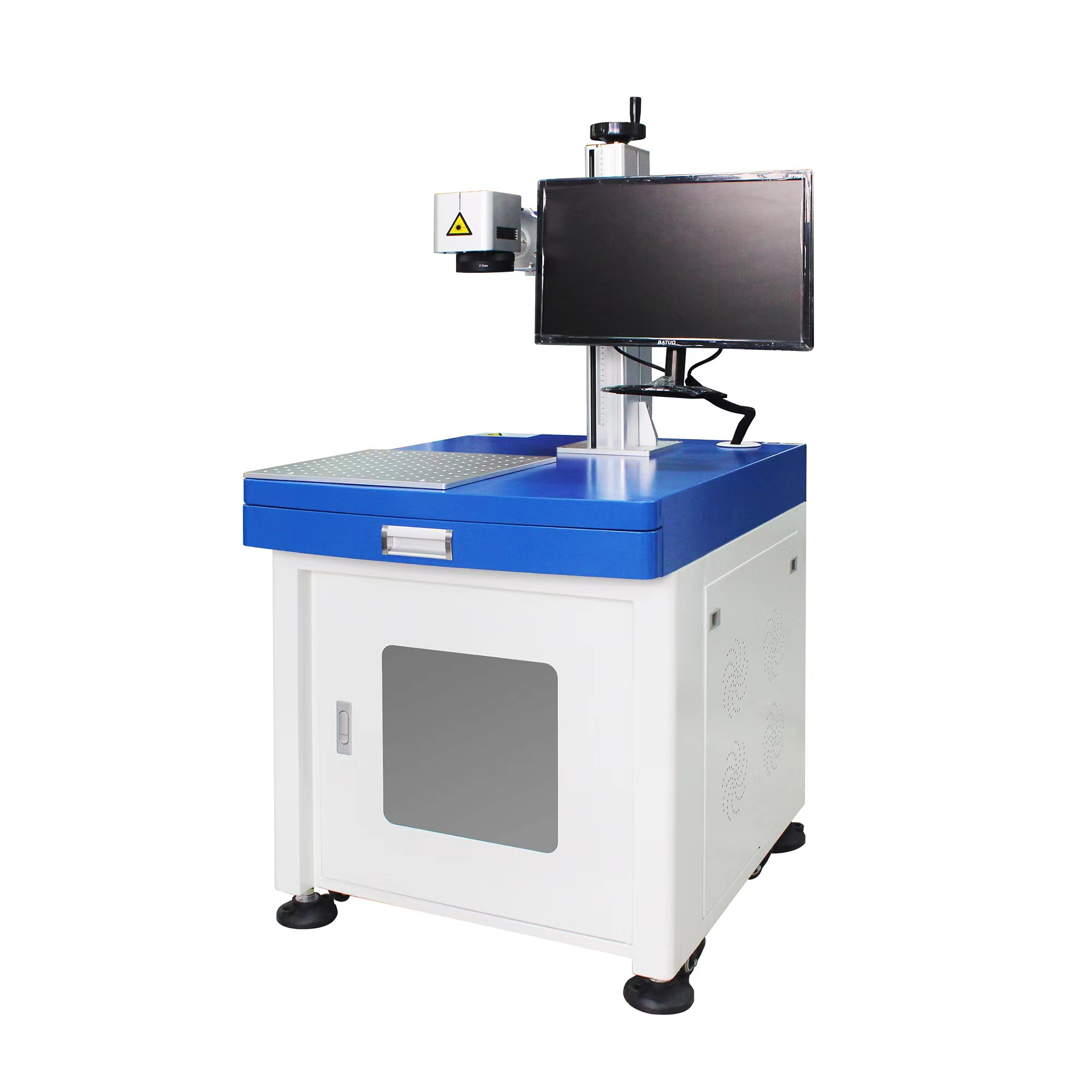

HSGP-355L
UV marking sand blasting machine
Surface carving of glass and crystal products, such as mobile phone screen, LCD screen, optical devices, automobile glass, etc
FEATURES AT A GLANCE
1. Smaller beam and better focusing quality;
2. Most materials can absorb ultraviolet laser, and special materials UV and PC can also be marked, so they have a wider range of applications;
3. It belongs to cold light source processing, with very small heat affected area, no thermal effect and no material burning problem;
4. No consumables, no pollution, no toxicity, fast marking speed and high efficiency;
5. The whole machine has stable performance and low power consumption.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
|
1
|
Laser power
|
3W / 5W / 10W / 15W (optional)
|
|
|
|
2
|
Laser wavelength
|
355nm
|
|
|
|
3
|
Printing depth
|
≤ 0.01-1.2mm, adjustable according to the material
|
|
|
|
4
|
The minimum character
|
0.01mm
|
|
|
|
5
|
Power
|
AC220 50Hz 5A
|
|
|
|
6
|
Cooling mode
|
air cooling or water cooling
|
|
|
|
7
|
Laser module life
|
25000 (hours)
|
|
|
|
8
|
Beam quality
|
㎡≤ 1.5
|
|
|
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Q: What’s the package?
A: We have 3 layers package: The outside, we adopt plywood case, which is fumigation free. In the middle is covered with thick
sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe
transportation.
Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
For running machine, we have menus and videos to show you for training. And we also will training you on line. Most of customers
training to run the machine like this, very little customer come factory for training.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response wthin 24 hours as quickly as we can to solve it for you.
A: We have 3 layers package: The outside, we adopt plywood case, which is fumigation free. In the middle is covered with thick
sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe
transportation.
Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
For running machine, we have menus and videos to show you for training. And we also will training you on line. Most of customers
training to run the machine like this, very little customer come factory for training.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response wthin 24 hours as quickly as we can to solve it for you.
