* Weichai engine and high-efficiency fuel injection pump features high torque, equipped with Weichai 93 sand filter,high
performances, high parts universality, and low maintenance cost.
* The core“transmission and torque converter”are fully self-made with features of digital design and precision casting, the torque
converter efficiency reaches more than 90%, and the operating efficiency is higher (above 5%) than competitors under the same
engine power
* The engine covers 150-170 horsepower, one –button switching and fuel-efficient.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
shantui
-
Model Number:
-
SD16, SD16R, SD16E, SD16D, SD16F
-
Dimension(Long * Breadth * High):
-
6104*3388*3032 mm
-
Color:
-
Yellow-color
-
warranty:
-
Video technical support
-
Product name:
-
Bulldozer SD16 crawler bulldozer machine 160hp bulldozer price
-
After-sales Service:
-
Field installation, commissioning and training
Quick Details
-
Machine Weight:
-
17000 KG
-
Dozing Capacity:
-
4.5m³
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
shantui
-
Model Number:
-
SD16, SD16R, SD16E, SD16D, SD16F
-
Dimension(Long * Breadth * High):
-
6104*3388*3032 mm
-
Color:
-
Yellow-color
-
warranty:
-
Video technical support
-
Product name:
-
Bulldozer SD16 crawler bulldozer machine 160hp bulldozer price
-
After-sales Service:
-
Field installation, commissioning and training
Products Description
Shantui's best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g. desert, swamp, forest, high altitude, etc.The SD16 provides high performance with strong reliability, with Shantui's trademark value.
* The ergonomic hexahedral cab features large space and excellent visual field.
* The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
* The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
* The safety walking passage system of the machine guarantees the driver’s safety.
* The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
* The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
* The safety walking passage system of the machine guarantees the driver’s safety.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
* With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the
working device can be controlled by single joystick.
* The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort,
and high working efficiency.
* The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high
flexibility and mobility and applicability for diversified working conditions.
working device can be controlled by single joystick.
* The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort,
and high working efficiency.
* The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high
flexibility and mobility and applicability for diversified working conditions.
* Intelligent large-screen display for automatic fault diagnosis and real-time protection of equipment.
* Equipped with Weichai 93 sand filter, with good durability and long replacement cycle.
* Fuel filter, oil filter centralized arrangement, one-stop maintenance.
* The lubrication points of the key parts are taken out and the maintenance is more convenient.
* Equipped with Weichai 93 sand filter, with good durability and long replacement cycle.
* Fuel filter, oil filter centralized arrangement, one-stop maintenance.
* The lubrication points of the key parts are taken out and the maintenance is more convenient.
Technical Specifications
|
Engine
|
Model & type
|
Shangchai SC11CB184G2B1/Weichai WD10G178E25;
water-cooled, in-line, 4-stroke injection direct |
|
|
||
|
|
Horsepower
|
Gross power: 131/175/1850 kW/HP/rpm //
Net power: 120/160/1850 kW/HP/rpm |
|
|
||
|
|
Number of cylinders
|
6—126 x 130 mm (bore x stroke)
|
|
|
||
|
|
Piston displacement
|
9.726 L
|
|
|
||
|
|
Min. fuel consumption
|
214 g/kW·h
|
|
|
||
|
|
Maximum torque
|
765 N·m@1300 rpm
|
|
|
||
|
Power
transmission system |
Torque converter
|
3-element, 1 stage, 1 phase
|
|
|
||
|
|
Transmission
|
Planetary gear type, power-shift, forced lubrication
|
|
|
||
|
|
Main drive
|
Spiral bevel gear, single-stage speed reduction,
splash lubrication |
|
|
||
|
|
Steering clutch
|
Lubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake
|
|
|
||
|
|
Steering brake
|
Lubricated, floating band structure, foot brake
with hydraulic booster |
|
|
||
|
|
Final drive
|
2-stage speed reduction of spur gear, splash lubrication
|
|
|
||
|
Travel speed
|
Gear
|
1st
|
2nd
|
3rd
|
||
|
|
Forward
|
0~3.29 km/h
|
0~5.82 km/h
|
0~9.63 km/h
|
||
|
|
Reverse
|
0~4.28 km/h
|
0~7.59 km/h
|
0~12.53 km/h
|
||
|
Undercarriage
system |
Type
|
Sprayed beam, suspended structure of equalizer
|
|
|
||
|
|
Carrier rollers
|
2 each side
|
|
|
||
|
|
Track rollers
|
6 each side
|
|
|
||
|
|
Track type
|
Assembled, single-grouser
|
|
|
||
|
|
Width of track shoes
|
510 mm
|
|
|
||
|
|
Pitch
|
203.2 mm
|
|
|
||
|
Hydraulic
System |
Maximum pressure
|
14 MPa
|
|
|
||
|
|
Pump type
|
Gear pump
|
|
|
||
|
|
Discharge
|
243 L/min
|
|
|
||
|
|
Bore of
working cylinder × no. |
110 mm × 2
|
|
|
||
|
Blade
|
Blade Type
|
Straight-tilt
|
Angle
|
U- Blade
|
||
|
|
Dozing capacity
|
4.5 m 3
|
4.4 m 3
|
5.0 m 3
|
||
|
|
Efficiency
(Theoretical value 40 m) |
225 m 3 /h
|
225 m 3 /h
|
250 m 3 /h
|
||
|
|
Blade width
|
3388 mm
|
3970 mm
|
3556 mm
|
||
|
|
Blade height
|
1149 mm
|
1040 mm
|
1120 mm
|
||
|
|
Maximum drop
below ground |
540 mm
|
530 mm
|
540 mm
|
||
|
|
Lifting height of blade
|
1095 mm
|
1110 mm
|
1095 mm
|
||
|
Riipper
(Optional) |
Maximum digging depth
of 3-shank ripper |
572 mm
|
|
|
||
|
|
Maximum lift
above ground |
592 mm
|
|
|
||
|
|
Weight of 3-shank ripper
|
1667 kg
|
|
|
||
More Types
|
SD16
|
|
|
|
Engine Model
|
Weichai WD10G178E25
|
|
|
Net Power
|
120 kW/160HP/1850 rpm
|
|
|
Operating Weight
|
17 T
|
|

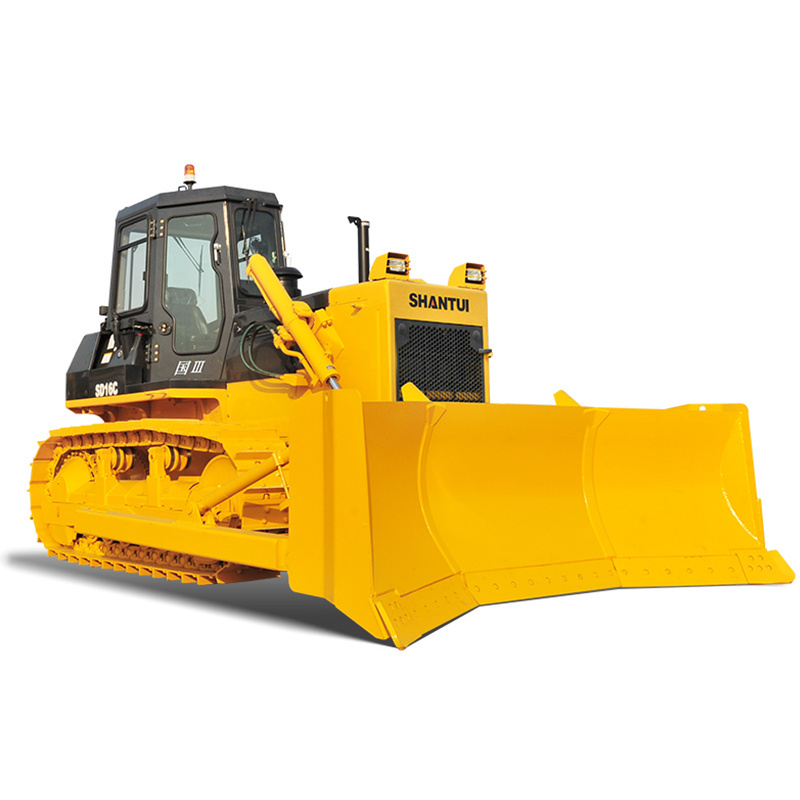

SD16C Coal Bulldozer
SD16C coal bulldozer is researched and developed in response to the demands of special engineering environments and is suitable for the operations of bulk materials in power plants and ports.
Technical Features
It’s an essential large mechanical equipment for the bulk material operation sites, including power plants and large ports.
The standard coal blade features super-large capacity and super-high productivity and durability to handle the high strength workload in power plants and ports and the outstanding durability of the blade is guaranteed by the application of the high strength box-type structure and high performance material.
Performance parameters
Length × width × height (mm) (excluding ripper): 5427×3900×3032
Operating weight(t) (excluding ripper): 17.37
Engine model: WD10G178E25/ SC11CB184G2B1
Net power/rated speed (kW/rpm): 120/1850
Ground pressure(Mpa):0.056
Blade type: Coal blade
Blade capacity(m3): 6.04
Applicable working conditions :Operations of bulk materials in power plants and ports.
SD16C coal bulldozer is researched and developed in response to the demands of special engineering environments and is suitable for the operations of bulk materials in power plants and ports.
Technical Features
It’s an essential large mechanical equipment for the bulk material operation sites, including power plants and large ports.
The standard coal blade features super-large capacity and super-high productivity and durability to handle the high strength workload in power plants and ports and the outstanding durability of the blade is guaranteed by the application of the high strength box-type structure and high performance material.
Performance parameters
Length × width × height (mm) (excluding ripper): 5427×3900×3032
Operating weight(t) (excluding ripper): 17.37
Engine model: WD10G178E25/ SC11CB184G2B1
Net power/rated speed (kW/rpm): 120/1850
Ground pressure(Mpa):0.056
Blade type: Coal blade
Blade capacity(m3): 6.04
Applicable working conditions :Operations of bulk materials in power plants and ports.
SD16L Super-Wetland Bulldozer
SD16L super-wetland bulldozer is developed in response to the operation demands of swamp and wetland conditions and is applicable for the operations in soft soil, wetland, mud, and swamp areas. It’s an essential mechanical equipment for the operations of soft sites (such as water conservancy projects).
Technical Features
The super-wide triangular tracks can prevent the entrapment of machine during operations in soft material sites (such as soft soil, wetland, and swamp). For the blade, the large width-height ratio can better scrape the soft soil to adapt to the soft soil of various swamp sites and the special design ensures higher operating efficiency.
Performance parameters
Length × width × height (mm) (excluding ripper): 5262×4150×3074
Operating weight(t) (excluding ripper): 18.46
Engine model: WD10G178E25/ SC11CB184G2B1
Net power/rated speed (kW/rpm): 120/1850
Ground pressure(Mpa): 0.027
Blade type: Straight tilting blade
Blade capacity: 3.8 for straight tilting blade
Applicable working conditions: Earthwork operations in soft soil, wetland, and swamp areas.
SD16L super-wetland bulldozer is developed in response to the operation demands of swamp and wetland conditions and is applicable for the operations in soft soil, wetland, mud, and swamp areas. It’s an essential mechanical equipment for the operations of soft sites (such as water conservancy projects).
Technical Features
The super-wide triangular tracks can prevent the entrapment of machine during operations in soft material sites (such as soft soil, wetland, and swamp). For the blade, the large width-height ratio can better scrape the soft soil to adapt to the soft soil of various swamp sites and the special design ensures higher operating efficiency.
Performance parameters
Length × width × height (mm) (excluding ripper): 5262×4150×3074
Operating weight(t) (excluding ripper): 18.46
Engine model: WD10G178E25/ SC11CB184G2B1
Net power/rated speed (kW/rpm): 120/1850
Ground pressure(Mpa): 0.027
Blade type: Straight tilting blade
Blade capacity: 3.8 for straight tilting blade
Applicable working conditions: Earthwork operations in soft soil, wetland, and swamp areas.
SD16R Sanitation Bulldozer
SD16R sanitation bulldozer is developed in response to the operation demands of sanitation treatment sites in domestic cities and is applicable for the landfill, leveling, semi-compacting, and stacking operations in waste yards as well as the traction of steel garbage chute and treatment tank station.
Technical Features
The equipped 8.3m3 sanitation blade features powerful cutting force and durability and can efficiently handle all kinds of working faces and the operation tasks for sanitation treatment sites. The unique heightened part on the top of the blade can prevent the ingress of handled material into rear side of blade.It's an ideal operation machine for sanitation treatment sites, wetlands, and swamps.
Performance parameters
Length × width × height (mm) (excluding ripper): 5262×4150×3074
Operating weight(t) (excluding ripper) : 17.7
Engine model: WD10G178E25/ SC11CB184G2B1
Net power/rated speed (kW/rpm): 120/1850
Ground pressure(Mpa) :0.027
Blade type: Sanitation blade
Blade capacity(m3): 8.3 for sanitation blade
Applicable working conditions: Landfill, leveling, semi-compacting, and stacking operations.
SD16R sanitation bulldozer is developed in response to the operation demands of sanitation treatment sites in domestic cities and is applicable for the landfill, leveling, semi-compacting, and stacking operations in waste yards as well as the traction of steel garbage chute and treatment tank station.
Technical Features
The equipped 8.3m3 sanitation blade features powerful cutting force and durability and can efficiently handle all kinds of working faces and the operation tasks for sanitation treatment sites. The unique heightened part on the top of the blade can prevent the ingress of handled material into rear side of blade.It's an ideal operation machine for sanitation treatment sites, wetlands, and swamps.
Performance parameters
Length × width × height (mm) (excluding ripper): 5262×4150×3074
Operating weight(t) (excluding ripper) : 17.7
Engine model: WD10G178E25/ SC11CB184G2B1
Net power/rated speed (kW/rpm): 120/1850
Ground pressure(Mpa) :0.027
Blade type: Sanitation blade
Blade capacity(m3): 8.3 for sanitation blade
Applicable working conditions: Landfill, leveling, semi-compacting, and stacking operations.
SD16TL Mechanical Super-Wetland Bulldozer
SD16TL mechanical super-wetland bulldozer is developed in response to the operation demands of swamp and wetland conditions and is an ideal construction machine for soft soil, wetland, mud, and swamp areas.
Technical Features
The super-wide triangular tracks can prevent the entrapment of machine during operations in soft material sites (such as soft soil, wetland, and swamp).
Performance parameters
Length × width × height (mm) (excluding ripper): 5262×4150×3074
Operating weight(t) (excluding ripper):18.4
Engine model: WD10G178E25
Net power/rated speed (kW/rpm): 120/1850
Ground pressure(Mpa) 0.027
Blade type: Straight tilting blade
Blade capacity: 3.8 for straight tilting blade
Applicable working conditions: Operations in soft soil, wetland, mud, and swamp areas.
SD16TL mechanical super-wetland bulldozer is developed in response to the operation demands of swamp and wetland conditions and is an ideal construction machine for soft soil, wetland, mud, and swamp areas.
Technical Features
The super-wide triangular tracks can prevent the entrapment of machine during operations in soft material sites (such as soft soil, wetland, and swamp).
Performance parameters
Length × width × height (mm) (excluding ripper): 5262×4150×3074
Operating weight(t) (excluding ripper):18.4
Engine model: WD10G178E25
Net power/rated speed (kW/rpm): 120/1850
Ground pressure(Mpa) 0.027
Blade type: Straight tilting blade
Blade capacity: 3.8 for straight tilting blade
Applicable working conditions: Operations in soft soil, wetland, mud, and swamp areas.
