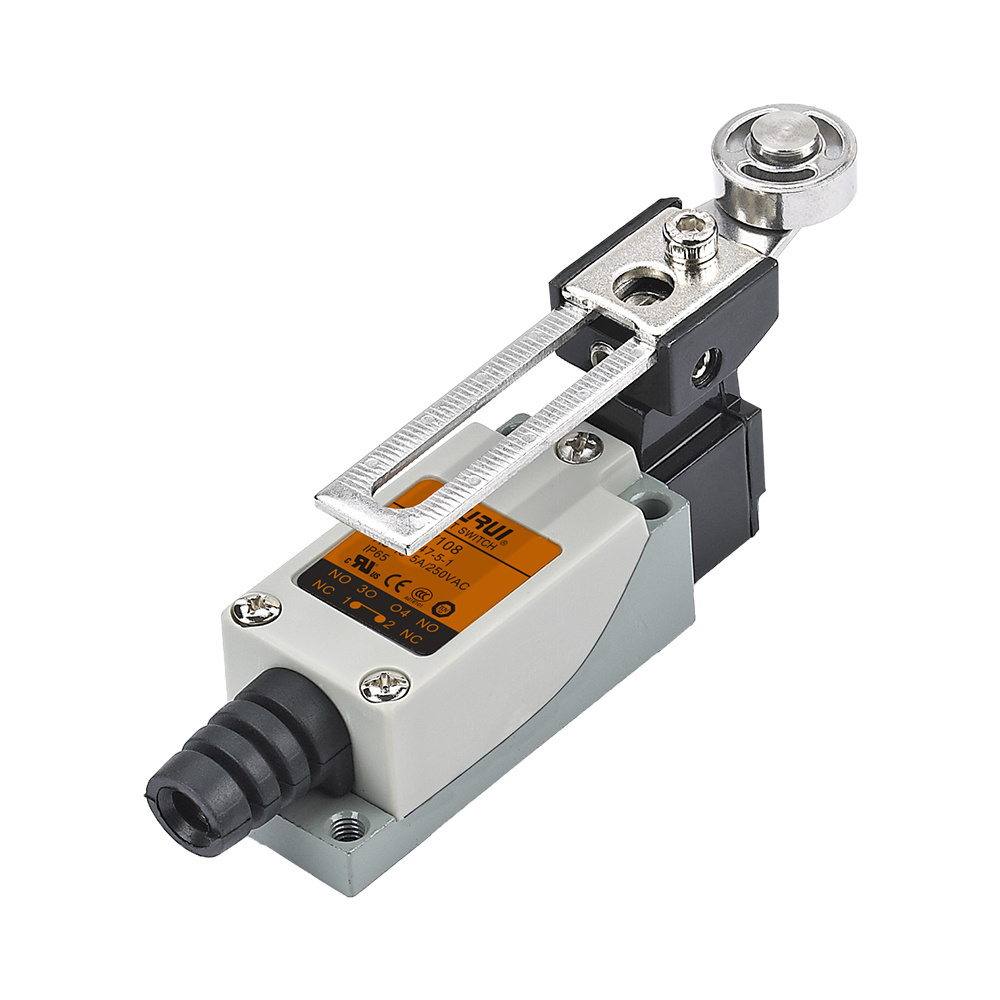

Quick Details
-
Model Number:
-
XZ-8/108
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20-+60℃
-
Max. Current:
-
250VAC
-
Material Body:
-
Zinc metal alloy
-
Certification:
-
UL, TUV, CE, CCC
Quick Details
-
Max. Voltage:
-
5A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XZ-8/108
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20-+60℃
-
Max. Current:
-
250VAC
-
Material Body:
-
Zinc metal alloy
-
Certification:
-
UL, TUV, CE, CCC
- Strong structure, made of zinc metal alloy and plastics, easy to contact line;
- Small size,water and oil resistant;
- Double way switch,double spring inner switch;
- Widely used in mechanical equipment, automatic machine, instrument, electro motion tool etc.
|
Item |
Data |
|
Rating load |
5A/250VAC |
|
Operation speed |
5mm-50cm/s |
|
Operation frequency |
Mechanical 120times/min |
|
Electrical 30 times/min |
|
|
Contact resistance |
≤25mΩ |
|
Insulation resistance |
≥100MΩ |
|
Withstand voltage |
Non-connection wire 1000VAC |
|
Every terminal 1500VAC |
|
|
Operating life |
Electrical 100,000 above |
|
Mechanical 1000,000 above |
|
|
Protection degree |
IP65 |
|
Operating temperature |
-25°C~+60°C |
|
Operating humidity |
≤85% |
| Models | XZ-8/108 |
| OF max. | 800g(7.84N) |
| RF min. | 60g(0.59N) |
| PT max. | 30° |
| OT min. | 60° |
| MD max. | 15° |
| OP | None |
| TT | 90° |
