Quick Details
-
Place of Origin:
-
China
-
Product Name:
-
concrete paving block making machine
Quick Details
-
Type:
-
Paving Block Making Machine
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
100set/month
-
Place of Origin:
-
China
-
Product Name:
-
concrete paving block making machine
Product Description

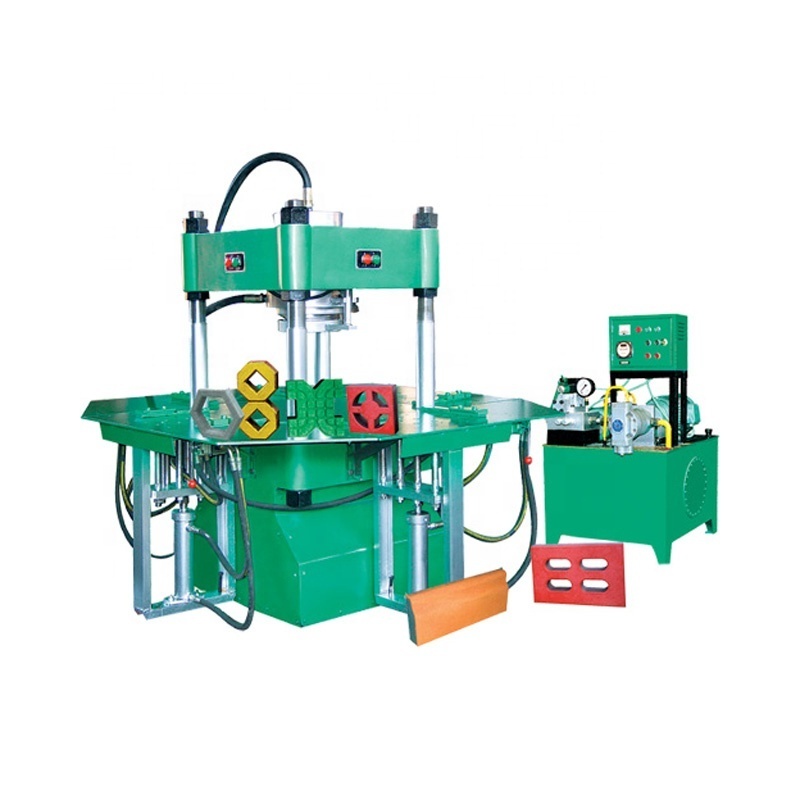

concrete paving block making machine WX-150B, also known as a street color brick machine, the raw material can be sand, slag, industrial residue etc., bricks can be pressed to finished cement bricks. The machine can make different kinds of paving bricks like color bricks, paving stone bricks, lawn bricks, water permeable bricks etc.by different mould.These bricks can pave road, street, plaza to improve and beautify urban ecological environment to protect water and soil from losses.
Technology Parameters
| Hydraulic Pressure | 150Tons |
| The oil pump pressure | 31.5MPa |
| Voltage | 220v/380v |
| Total Power | 18.5KW |
| Dimension of host machine | 1900mmx1900mmx1860mm |
| Total Weight | 2500kg |
| Max Specification | 500mmx500mmx50mm |
| Workshop Area | 60m2 |
| Output Capacity | 2500-5500pcs/day(Road face brick) |
| 1500-2500pcs/day(Curbs brick) |
Basic Scheme
| NO. | Name | Quantity |
| 1 | Brick main machine | 1 Set |
| 2 | Control box | 1 Set |
| 3 | Hydraulic station | 1 Set |
| 4 | Concrete mixer | 1 Set |
| 5 | Standard mould | 1 Set |
| 6 | Brick trolley | 1Set |
| 7 | Tools | 1 Set |
Paver Brick Samples
