Quick Details
-
Voltage:
-
220V/50Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Printyoung
-
Dimensions(L*W*H):
-
1730mm*880mm*1250mm
-
Weight:
-
610 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max. printing area:
-
454 X 345mm
-
Max. paper:
-
470 X 365mm
-
PS plate:
-
470 X 380 X 0.15mm
-
Paper weight:
-
28-255g/m2
-
Ink roller:
-
10pcs (2 forme rollers)
-
Dampening roller:
-
4pcs (1 forme rollers)
-
Feed sheet:
-
Suction/cross feed
-
Speed:
-
1000-8000pcs/h
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
single color
-
Voltage:
-
220V/50Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Printyoung
-
Dimensions(L*W*H):
-
1730mm*880mm*1250mm
-
Weight:
-
610 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max. printing area:
-
454 X 345mm
-
Max. paper:
-
470 X 365mm
-
PS plate:
-
470 X 380 X 0.15mm
-
Paper weight:
-
28-255g/m2
-
Ink roller:
-
10pcs (2 forme rollers)
-
Dampening roller:
-
4pcs (1 forme rollers)
-
Feed sheet:
-
Suction/cross feed
-
Speed:
-
1000-8000pcs/h

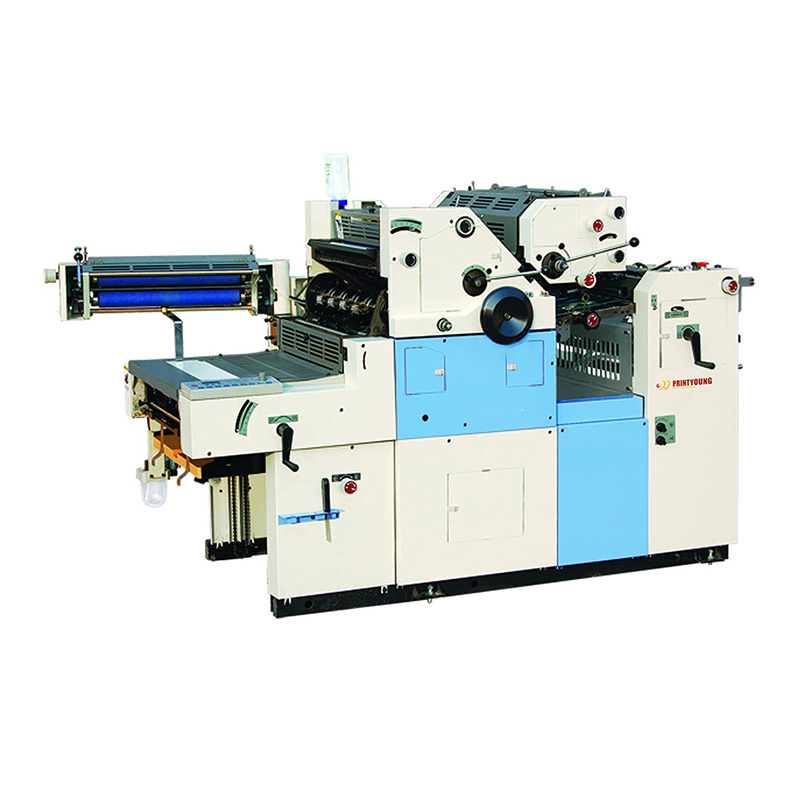

PRY47-II , 56-II Automatic flyer printing machine
Simultaneous operations for offset printing, letter-press printing, number printing(NP), creasing, perforating and slitting and satallite second colour device can be attached to the main unit.
The functions of paper feeding, production running, counting, number advancing, powder spray, anti-static are controlled by PLC.
Main properties:
1,Easy to handle: Water supplying,ink supplying and impression coming on can be handled by one lever.Sheet-feeding and powder-spray can be controlled by switches on the front panel.
2, Accurate registration and easy to adjust: Front guide and pulling guide that uses pulling wheel on each side are adopted.Lateral position of feeder board and vertical position of plate can be finely adjusted.
3, Seperation of water and ink: The water supply and ink supply systems are seperated.The amount of water and ink can easily be adjusted match the different jobs.
Technical Parameter:
|
model |
PRY47-II |
PRY47-III |
|
Max. printing area |
454 X 345mm |
454 X 345mm |
|
Max. paper |
470 X 365mm |
470 X 365mm |
|
PS plate |
470 X 380 X 0.15mm |
470 X 380 X 0.15mm |
|
Rubber blanket |
470 X 420mm |
470 X 420mm |
|
Paper weight |
28-255g/m2 |
28-255g/m2 |
|
Feed sheet |
Suction/cross feed |
Suction/cross feed |
|
Dampening |
Mollenton |
Mollenton |
|
Ink roller |
10pcs (2 forme rollers) |
14pcs(3 forme rollers) |
|
Dampening roller |
4pcs (1 forme rollers) |
5pcs (2 forme rollers) |
|
Register device |
Wheel side pull lay |
Wheel side pull lay |
|
Speed |
1000-8000pcs/h |
1000-8000pcs/h |
|
Main motor |
0.75kw |
0.75kw |
|
Air pump motor |
0.55kw |
0.55kw |
|
Power |
220v/50hz |
220v/50hz |
|
Size |
1730 X 880 X 1250mm |
1730 X 880 X 1250mm |
|
weight |
610kg |
660kg |
|
model |
PRY56-II |
PRY56-III |
|
Max. printing area |
550 X 375mm |
550 X 375mm |
|
Max. paper |
560 X 400mm |
560 X 400mm |
|
PS plate |
560 X 420 X 0.15mm |
560 X 420 X 0.15mm |
|
Rubber blanket |
560 X 440mm |
560 X 440mm |
|
Paper weight |
28-255g/m2 |
28-255g/m2 |
|
Feed sheet |
Suction/cross feed |
Suction/cross feed |
|
Dampening |
Mollenton |
Mollenton |
|
Ink roller |
10pcs (2 forme rollers) |
14pcs (3 forme rollers) |
|
Dampening roller |
4pcs (1 forme rollers) |
5pcs (2 forme rollers) |
|
Register device |
Wheel side pull lay |
Wheel side pull lay |
|
Speed |
1000-8000pcs/h |
1000-8000pcs/h |
|
Main motor |
1.1kw |
1.1kw |
|
Air pump motor |
0.55kw |
0.55kw |
|
Power |
220v/50hz |
220v/50hz |
|
Size |
1730 X 980 X 1250mm |
1730 X 980 X 1250mm |
|
weight |
720kg |
800kg |
