Quick Details
-
Material:
-
stainless steel, Stainless Steel
-
Product name:
-
Weld inspection ruler
-
Color:
-
Silver
-
Type:
-
WG002
-
Usage:
-
Weld Gap
-
Weight:
-
0.06kg
-
Packing:
-
Plastic Bag or Box
-
MOQ:
-
1pcs
-
Payment Term:
-
T/T
Quick Details
-
Place of Origin:
-
Jiangsu, China, Changzhou,Jangsu,China
-
Brand Name:
-
DEM
-
Model Number:
-
WG002
-
Material:
-
stainless steel, Stainless Steel
-
Product name:
-
Weld inspection ruler
-
Color:
-
Silver
-
Type:
-
WG002
-
Usage:
-
Weld Gap
-
Weight:
-
0.06kg
-
Packing:
-
Plastic Bag or Box
-
MOQ:
-
1pcs
-
Payment Term:
-
T/T
Products Description

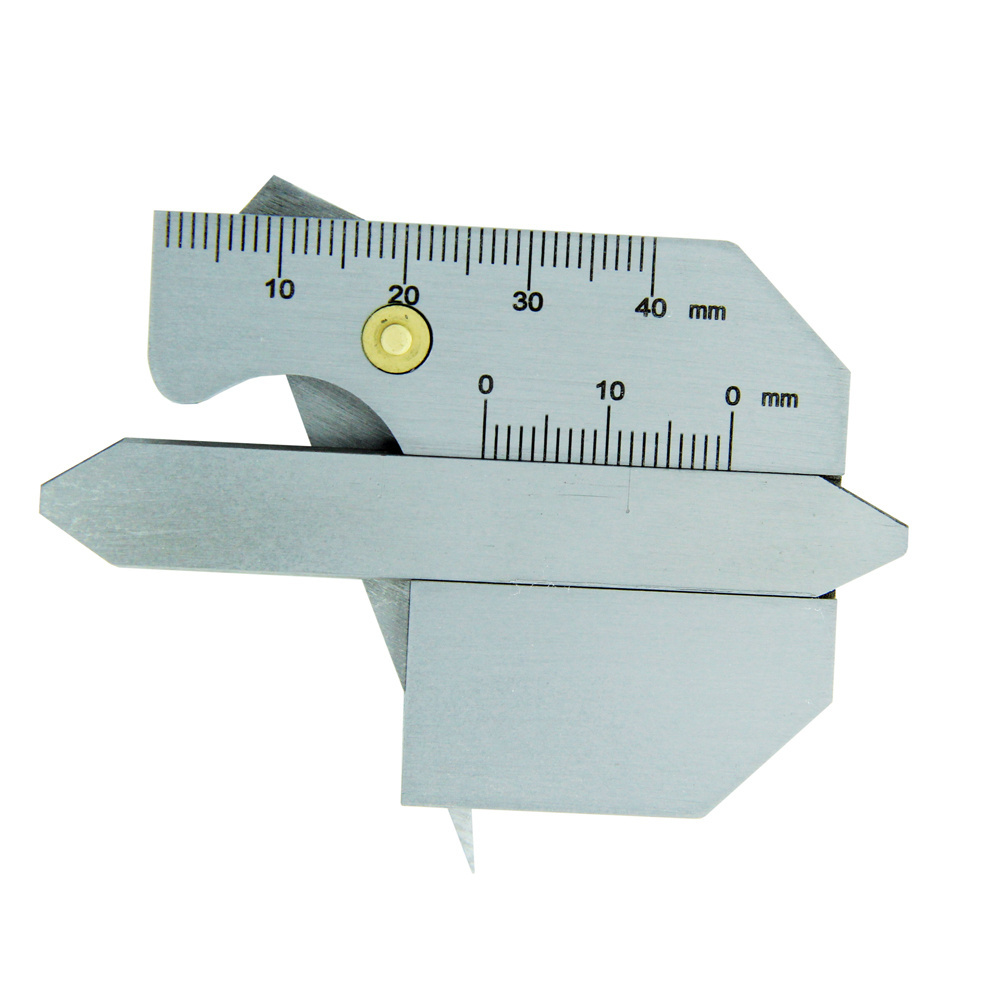

The product mainly consists of a main scale, a slider and a multi-purpose gauge. It is a weld detention gage used to detect the bevel angle of weldments, the height of various weld lines, weldment gaps and the plate thickness of weldments.
It is suitable for manufacturing boilers, bridges, chemical machinery, and ships and for inspecting the welding quality of
pressure vessels.
This product is made of stainless steel, with reasonable structure and beautiful appearance, which is easy to use.
It is suitable for manufacturing boilers, bridges, chemical machinery, and ships and for inspecting the welding quality of
pressure vessels.
This product is made of stainless steel, with reasonable structure and beautiful appearance, which is easy to use.
Measurement Range
|
Measuring Items
|
|
Range
|
Tolerance for Indicating Value
|
|
|
Welding Thickness
|
|
0-40
|
±0.2
|
|
|
Weld Line Height
|
Multi-purpose Gauge
|
0-20
|
±0.3
|
|
|
|
Slider
|
0-20
|
±0.2
|
|
|
Weld Gap
|
|
1-3
|
±0.2
|
|
|
Weldment Bevel Angle
|
|
0°-90°
|
30′
|
|
Instructions for Use
The edge scale can be used as straight steel ruler to detect the thickness of 0-40mm sheets.
The slider is used to measure the height of fillet welds. The indicator on the slider corresponding to the scale on the main scaleis the height of the fillet weld.
The multi-purposed gauge is used to measure the height of butt weld lines. The indicator on the multi-purpose gauge correspondingto the scale on the main scale is the height of the butt weld line.
The slider is used to measure the height of fillet welds. The indicator on the slider corresponding to the scale on the main scale is the height of the fillet weld.
The slider is used to measure the height of fillet welds. The indicator on the slider corresponding to the scale on the main scale is the height of the fillet weld.
In measuring the height of 45-degree-angle weld lines, the indicator on the slider corresponding to the scale on the main scale is the height of the 45-degree-angle weld line.
In measuring the height of 45-degree-angle weld lines, the indicator on the slider corresponding to the scale on the main scale is the height of the 45-degree-angle weld line.
In measuring the gap of weldments, the indicator on the multi-purpose gauge corresponding to the scale on the main scale is the gap of the weldment.
