Quick Details
-
Power:
-
85KW, 85kw
-
Weight:
-
4500 KG
-
Dimension(L*W*H):
-
25*0.8*1.2m
-
Product name:
-
Production Line of Pet Food Making Machine
-
Function:
-
Producing Pet Balanced Food
-
Capacity:
-
100-500kg/h
-
Material:
-
Stainless Steel Ss304/201/316
-
Final product:
-
pet food
-
Energy:
-
electric or gas
-
Motor:
-
Chinese Famous Brands
-
Advantage:
-
Automatic \ Energy Saving \ Fine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DELON
-
Voltage:
-
380V--50HZ
-
Power:
-
85KW, 85kw
-
Weight:
-
4500 KG
-
Dimension(L*W*H):
-
25*0.8*1.2m
-
Product name:
-
Production Line of Pet Food Making Machine
-
Function:
-
Producing Pet Balanced Food
-
Capacity:
-
100-500kg/h
-
Material:
-
Stainless Steel Ss304/201/316
-
Final product:
-
pet food
-
Energy:
-
electric or gas
-
Motor:
-
Chinese Famous Brands
-
Advantage:
-
Automatic \ Energy Saving \ Fine
Product Introduction

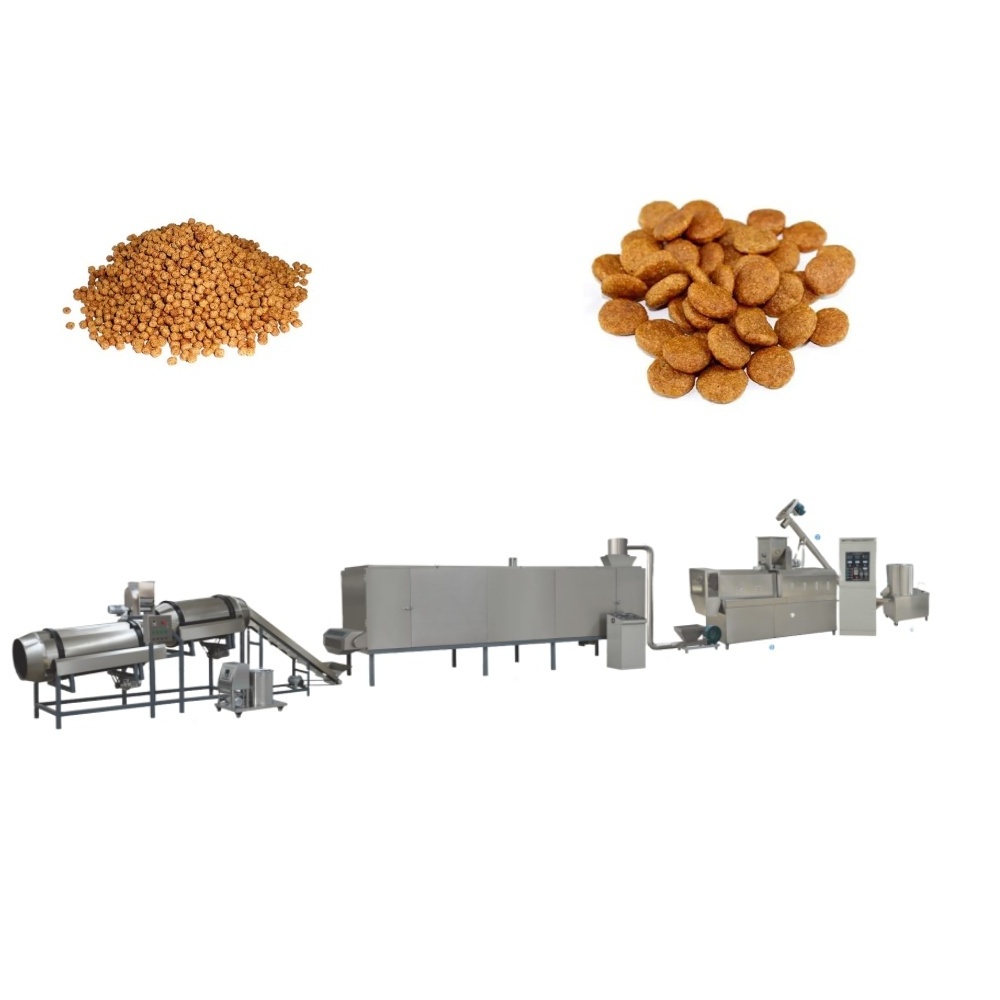

Automatic Dry pet Food Production Line of Animal Feed Making Machine
Pet food line is assigned to pet food with innovative shapes, unique taste and color, and to scientific nutrition proportion and easy to digest and other features to adapt to the constantly evolving pet food market. Taste of varied shapes andmeet the needs of all kinds of pet food. Pet food production line by mixing powder, double screw extruder, air machine, drying and seasoning line composition.
Product Picture
Double-screw hoister
Installed power：55kw/h
size：4.5*1.2*2.3m
yield：100-150kg/h
Introduction to the device：
The rotary cutting system adopts variable frequency speed regulation, with strong power, smooth operation, and energy-saving.
Automatic lubrication and forced cooling ensure the operation of the extruder and extend its lifespan.The screw is made of alloy material, with high strength, wear resistance, and extended service life.
Equipped with screw extrusion systems with different structures and length to diameter ratios to meet process requirements.
Automatic lubrication and forced cooling ensure the operation of the extruder and extend its lifespan.The screw is made of alloy material, with high strength, wear resistance, and extended service life.
Equipped with screw extrusion systems with different structures and length to diameter ratios to meet process requirements.
Automatic Dry pet Food Production Line of Animal Feed Making Machine
Dyer
Installed power：42kw/h
size：5.1*1.2*2.1m
yield：150-200kg/h
Introduction to the device：
The oven has a wide range of applications and can dry various puffed foods or other materials such as strips, blocks, and granules. Users can also choose drying ovens with different layers, lengths, and heat sources according to material requirements.The oven adopts a double pitch roller chain drive, with a back and forth drying process and smooth operation.
yield：150-200kg/h
Introduction to the device：
The oven has a wide range of applications and can dry various puffed foods or other materials such as strips, blocks, and granules. Users can also choose drying ovens with different layers, lengths, and heat sources according to material requirements.The oven adopts a double pitch roller chain drive, with a back and forth drying process and smooth operation.
Automatic Dry pet Food Production Line of Animal Feed Making Machine
Flavoring machine
Installed power：35kw/h
size：5.1*1.5*2m
yield：150-200kg/h
Introduction to the device：
Used for seasoning, it can make the surface of the product smooth and can use various energy sources such as fuel, gas, and coal.
yield：150-200kg/h
Introduction to the device：
Used for seasoning, it can make the surface of the product smooth and can use various energy sources such as fuel, gas, and coal.
The Equipment Parameters
|
Model
|
DL70-II
|
DL85-II
|
DL90-II(Gas style drying)
|
|
Input Voltage
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
Power Consumpution
|
76.65 kw
|
97.05 kw
|
116 kw
|
|
Production capacity
|
180-220KG/H
|
300-500KG/H
|
600-1000KG/H
|
|
Size
|
19000mm
|
21000mm
|
25000mm
|
