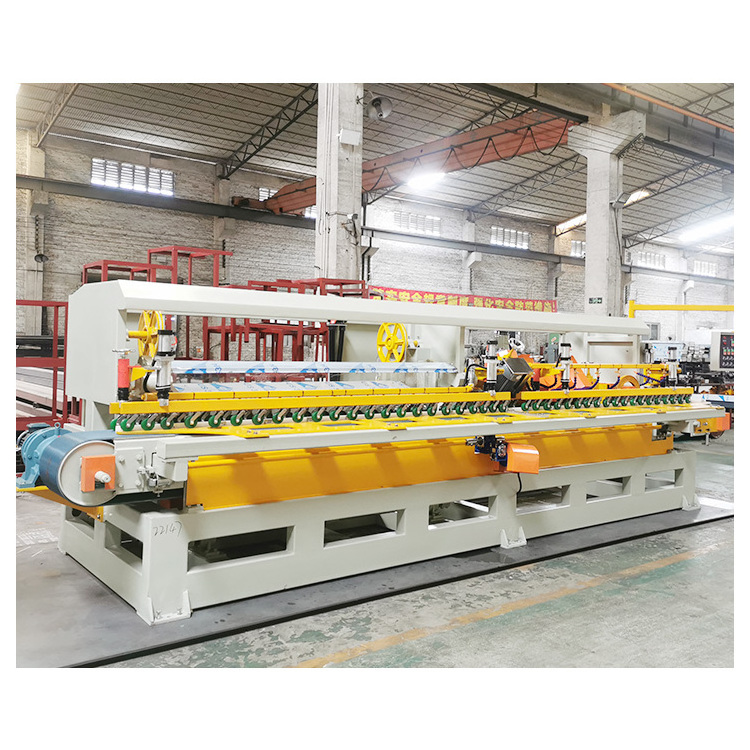

14 grinding heads automatic ceramic tiles arc edge polishing machines stone edge profile machine With Factory price discount

FOB Reference Price: Get Latest Price

≥1 Sets

US $17500

≥5 Sets

US $16999

≥10 Sets

US $15999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: High Speed

Place of Origin:: Guangdong, China

Brand Name:: BAOTAO

Voltage:: 380V/50Hz

Dimension(L*W*H):: 6000*2200*1800MM

Weight:: 6200 kg

Marketing Type:: Hot Product 2022

Function:: edging, chamfering grinding bullnose,polishing,slotting

Application:: Stone Marble Granite Quartz Sandstone

Max Cutting Length:: 1200mm

Water consumption:: 490L/Min

Air consumption:: 55L/Min

Electricity consumption:: 23kw/h

Quick Details

Type:: Stone Polishing Machine

Power:: 37.5KW

Cutting thickness (max):: 25mm

Production Capacity:: High Speed

Place of Origin:: Guangdong, China

Brand Name:: BAOTAO

Voltage:: 380V/50Hz

Dimension(L*W*H):: 6000*2200*1800MM

Weight:: 6200 kg

Marketing Type:: Hot Product 2022

Function:: edging, chamfering grinding bullnose,polishing,slotting

Application:: Stone Marble Granite Quartz Sandstone

Max Cutting Length:: 1200mm

Water consumption:: 490L/Min

Air consumption:: 55L/Min

Electricity consumption:: 23kw/h

Clients Worldwide:

Turkey

Thailand

Albania

Machine Functions:

Machine Technical Parameters:

Technical Data	unit	6 heads	10 heads	14 heads
Nos. of Polish Wheel	pcs	6	10	14
Dia. Of Polish Wheel	mm	Φ125/100	Φ125/100	Φ125/100
Nos. of grind Wheel	pcs	3	5	5/6
Dia. Of grind Wheel	mm	Φ125-200
Nos. of Grooves	pcs	1-4	1-4	1-4
Dia. of Groove Wheel	mm	Φ150	Φ150	Φ150
Working width	mm	90-1200	90-1200	90-1200
Working Thickness	mm	6-20	6-20	6-20
Processing Speed	m/min	0.5-2	2-4	3-6
Power Supply	380V / 415V / 220V 3PH 50HZ
Total Power	KW	15	23	27
Air Consumption	L/MIN	32	32	32
Water Consumption	L/MIN	490	490	490
Dimensions(LWH)	meter	4.1 2.3 1.7	5.221.8	6.02.21.8
total weight	KG	2600	4000	6200
