Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
KS-01-101C
-
Item:
-
12MM 2 Pin OFF ON Electronic Metal Key Lock Switch
-
Rating:
-
0.5A 250VAC / 0.5A 24VDC
-
Material:
-
Zinc
-
Handle Material:
-
Plastic
-
Function:
-
ON-OFF
-
Housing Color:
-
Silver
-
Mounting Hole Size:
-
12MM
-
Total Length:
-
23.5MM
-
Free Sample:
-
Available
-
Electrical Life:
-
5,000 times
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
0.5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
KS-01-101C
-
Item:
-
12MM 2 Pin OFF ON Electronic Metal Key Lock Switch
-
Rating:
-
0.5A 250VAC / 0.5A 24VDC
-
Material:
-
Zinc
-
Handle Material:
-
Plastic
-
Function:
-
ON-OFF
-
Housing Color:
-
Silver
-
Mounting Hole Size:
-
12MM
-
Total Length:
-
23.5MM
-
Free Sample:
-
Available
-
Electrical Life:
-
5,000 times
Product Description
|
Item
|
12MM 2 Pin OFF ON Electronic Metal Key Lock Switch
|
|
|
||
|
Rating
|
0.5A 250VAC / 0.5A 24VDC
|
|
|
||
|
Pin
|
2 Pin
|
|
|
||
|
Position
|
2 Position
|
|
|
||
|
Withstand Voltage
|
AC500V(50Hz) 1min 2mA
|
|
|
||
|
Contact resistance
|
≤100mΩ
|
|
|
||
|
Insulation resistance
|
≥500mΩ(500VAC)
|
|
|
||
|
Key position
|
Key Removalbe Both Position
|
|
|
||
|
Operating Temperature
|
-25℃~+85℃
off on electronic metal key lock switch
|
|
|
||

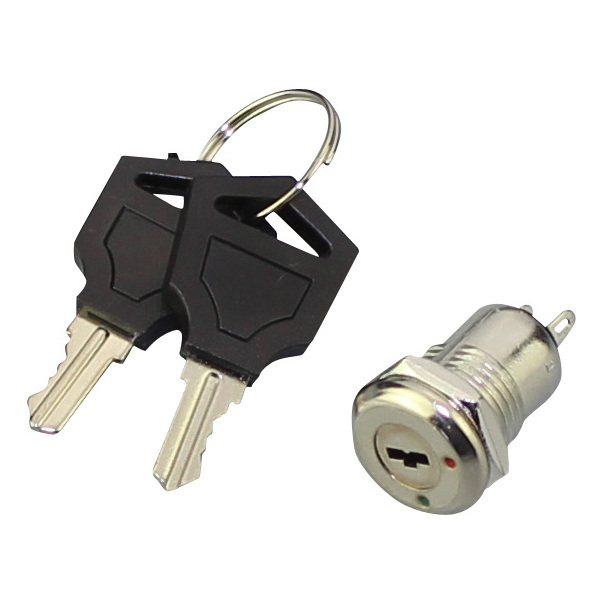

Product Show
A quality product containing parts manufactured from brass, steel and alloy materials.
The barrel is finished in chrome with a polished bezel.
The lock is a separate item with a chrome finished body that fits into the barrel, after mounting, in any one of four positions. The tumblers of the lock are made from brass, steel and bronze.
The barrel is 12mm diameter across the threads.
Overall length of lock when assembled is 23.5mm.
