Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
HJL CABLE
-
Model Number:
-
H1Z2Z2-K PV1-F
-
Voltage level:
-
AC 0.6/1KV ,DC 1.8KV
-
Conductor cross-sectional area:
-
2.5mm² 4mm² 6mm² 10mm²
-
certification:
-
TUV
-
Color:
-
Black /Red
-
Number of Cores:
-
Single / Twin
-
Working temperature:
-
-40℃ to + 120℃
-
Standard:
-
EN 50618 /2PfG 1169
Quick Details
-
Insulation Material:
-
Halogen-free cross-linked compound
-
Conductor Material:
-
Class 5 flexible tinned copper conductor
-
Jacket:
-
Halogen-free cross-linked, flame retardant compound
-
Place of Origin:
-
China
-
Brand Name:
-
HJL CABLE
-
Model Number:
-
H1Z2Z2-K PV1-F
-
Voltage level:
-
AC 0.6/1KV ,DC 1.8KV
-
Conductor cross-sectional area:
-
2.5mm² 4mm² 6mm² 10mm²
-
certification:
-
TUV
-
Color:
-
Black /Red
-
Number of Cores:
-
Single / Twin
-
Working temperature:
-
-40℃ to + 120℃
-
Standard:
-
EN 50618 /2PfG 1169
Products Description
Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Impact tested - Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
|
Type
|
Photovoltaic Solar H1Z2Z2-K Cable
|
|
Conductor
|
Class 5 flexible tinned copper conductor
|
|
Insulation
|
Halogen-free cross-linked compound
|
|
Sheath
|
Halogen-free cross-linked, flame retardant compound
|
|
Voltage Rating Uo/U
|
AC: 1000/1000V DC: 1500/1500V
|
|
Maximum Voltage (Umax)
|
1800V
|
|
Test Voltage
|
6.5kV AC
|
|
Temperature Rating
|
Fixed: -40°C to +90°C
|
|
Minimum Bending Radius
|
5 x overall diameter
|
|
Maximum Conductor Temperature
|
+120°C (for 20000h)
|
|
Standards
|
EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7,EN 60068-2-78, EN 50395
|
|
Certification
|
TUV
|
|
Nominal
cross-section
|
Nominal overall
diameter
|
Nominal
weight
|
Maximum dc
resisitance
|
Current carrying
capacity
|
|
(mm2)
|
(mm)
|
(kg/km)
|
(ohms/km)
|
(A)
|
|
1.5
|
4.61
|
36
|
13.7
|
30
|
|
2.5
|
5.24
|
46
|
8.21
|
41
|
|
4
|
6.02
|
62
|
5.09
|
55
|
|
6
|
6.87
|
82
|
3.39
|
70
|
|
10
|
10.40
|
125
|
1.95
|
98
|
|
16
|
12.34
|
190
|
1.24
|
132
|
|
25
|
15.76
|
285
|
0.795
|
176
|
|
35
|
18.11
|
385
|
0.565
|
218
|

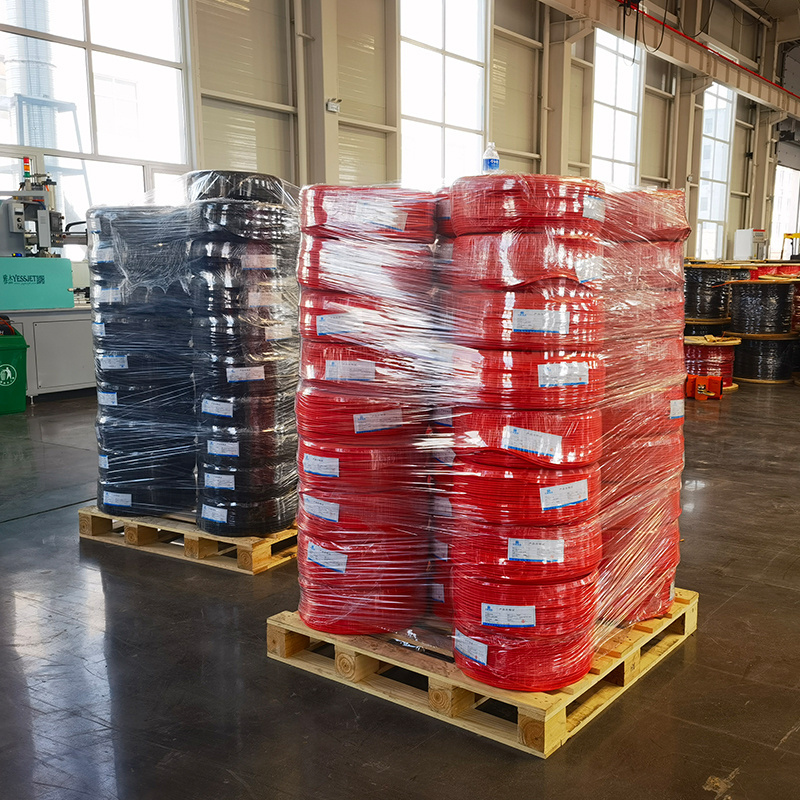

Product packaging
