Quick Details
-
Model Number:
-
7007.03A
-
Type:
-
Capacitive switch
-
Power:
-
30W 60W
-
Sensing Range:
-
Touch Sensor For Led Mirror
-
Brand:
-
LGDD/OEM/ODM
-
Product name:
-
Smart Mirror Touch sensor
-
Model:
-
7007.03A
-
Material:
-
PCB+Plastic Housing
-
Certificate:
-
CE RoHS ISO9001
-
IP:
-
IP44 Waterproof
-
Package:
-
Individual with anti - static Bag
-
Working lifetime:
-
Long, Cycle test >10,000 times approved by lab
-
Power supply:
-
30W 60W 12V 24V
-
Certification:
-
CE Rohs
Quick Details
-
Voltage:
-
220-240V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LGDD
-
Model Number:
-
7007.03A
-
Type:
-
Capacitive switch
-
Power:
-
30W 60W
-
Sensing Range:
-
Touch Sensor For Led Mirror
-
Brand:
-
LGDD/OEM/ODM
-
Product name:
-
Smart Mirror Touch sensor
-
Model:
-
7007.03A
-
Material:
-
PCB+Plastic Housing
-
Certificate:
-
CE RoHS ISO9001
-
IP:
-
IP44 Waterproof
-
Package:
-
Individual with anti - static Bag
-
Working lifetime:
-
Long, Cycle test >10,000 times approved by lab
-
Power supply:
-
30W 60W 12V 24V
-
Certification:
-
CE Rohs
Products Description
Description：

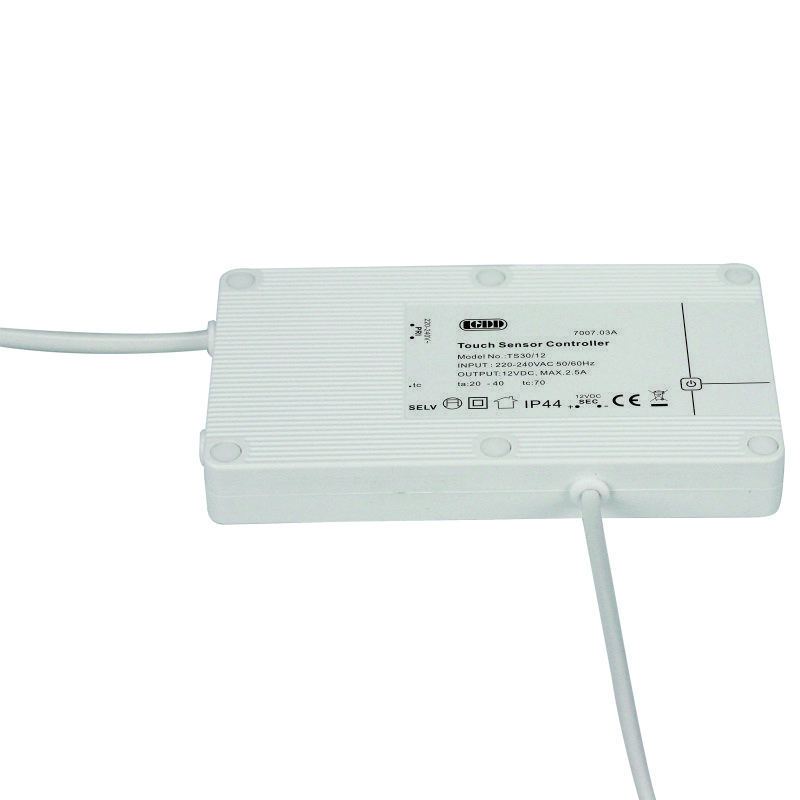

The Single Touch Sensor Integrated Box is specially designed for LED mirrors, highly integrated with LED driver and sensor switch, to simplify the installation, reduce assembly steps and lower LED mirrors' final price.
The shell achieves IP44 waterproof and dustproof, so no extra protection is needed for bathroom mirror application. The ultra-thin shell design, makes the mirror surface as close as possible to the installation wall. The product approved by CE, passed IP44 and 10,000 switch life tests, ensures a long-term safe use of the product.
Key Feature：
1.Single Touch key with backlight
2. High touch sensitivity, High capacity of anti-interference.
3. Easy to assemble with bracket
4. Passed IP44 and 10,000 switch life tests
Performance Parameters：
|
Model
|
Input Voltage
|
A Output Voltage
|
Rated Power
|
Power factor
|
Standby Power
|
Dimension(mm)
|
|
7007.03A
|
220-240V
|
12-24VDC
|
30W
|
0.95
|
≤0.5W
|
155*85*20
|
|
|
220-240V
|
12-24VDC
|
60W
|
0.95
|
≤0.5W
|
|
