Quick Details
-
Brand Name:
-
Mday
-
Model Number:
-
ST-D121BW-1/2/3/4
-
Mechanical Life:
-
100,000 Times
-
Keyword:
-
remote control touch wifi smart switch
-
Max power:
-
600W/gang
-
APP:
-
Smart Life Tuya Smart
-
Wireless Type:
-
IEEE802.11b/g/n 2.4GHz
-
Rated Power:
-
Resistive Load: 400W
-
Frequency:
-
50/60Hz
-
Voice Control:
-
Amazon Alexa Echo Google Home
-
Logo:
-
Customization Avaible
-
Payment Term:
-
TT WU PAYPAL
-
Material:
-
Tempered Glass Panel
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Mday
-
Model Number:
-
ST-D121BW-1/2/3/4
-
Mechanical Life:
-
100,000 Times
-
Keyword:
-
remote control touch wifi smart switch
-
Max power:
-
600W/gang
-
APP:
-
Smart Life Tuya Smart
-
Wireless Type:
-
IEEE802.11b/g/n 2.4GHz
-
Rated Power:
-
Resistive Load: 400W
-
Frequency:
-
50/60Hz
-
Voice Control:
-
Amazon Alexa Echo Google Home
-
Logo:
-
Customization Avaible
-
Payment Term:
-
TT WU PAYPAL
-
Material:
-
Tempered Glass Panel
Our Service
"M.DAY " OFFER YOU:
>> FACTORY DIRECT PRICE.
>>NICE QUALITY.
>>QUICK SHIPPING WITHIN 10 DAYS.
>>SMALL ORDER WELCOME.
>>OEM SUPPORT.
>>PAYMENT BY PAYPAL/TT/ALIBABA TRADE ASSURANCE.
>>PROFESSIONAL R & D TEAM.
Product Paramenters
|
Series
|
ST-D121BW Series
|
|
|
|
|||
|
Wire Request
|
With Neutral Wire, No Need Capacitance
|
|
|
|
|||
|
Cats. No.
|
ST-D121BW-1
|
ST-D121BW-2
|
ST-D121BW-3
|
ST-D121BW-4
|
|||
|
Type
|
1 gang
|
2 gang
|
3 gang
|
4 gang
|
|||
|
Power Rating
|
600W
|
2*600W
|
3*600W
|
4*600W
|
|||
|
Max. Current
|
10A
|
|
|
|
|||
|
Input Voltage
|
100-240VAC 50/60Hz
|
|
|
|
|||
|
Mechanical Life
|
100,000times
|
|
|
|
|||
|
Wireless Type
|
BLE + 2.4GHz WiFi (IEEE 802.11b/g/n)
|
|
|
|
|||
|
Standby Power
|
0.5W
|
|
|
|
|||
|

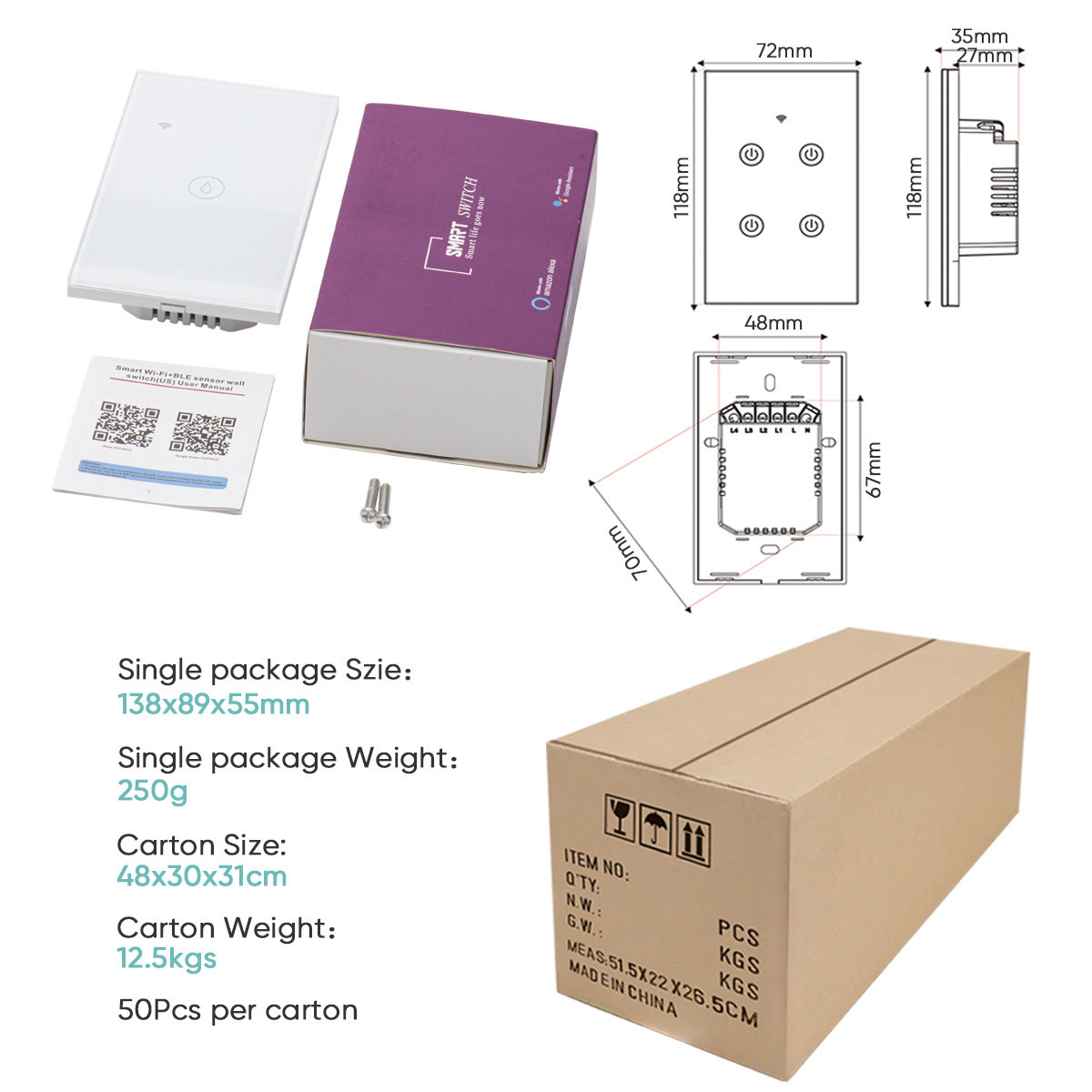

Dimension
|
118*72*35mm
|
|
|
|
|||
|
Color
|
White/Black/Golden/Gray , other colours can be customized .
|
|
|
|
|||
|
Material
|
Tempered crystal glass + 94V-0 ABS/PC
|
|
|
|
|||
|
Package Include
|
1x Smart Light Switch +1x Installation Guide + 2x Screws
|
|
|
|
|||
Products Description
Features:
Mday WiFi 220V 1/2/3/4 Gang 1 Way Crystal Glass Panel Wall Light Touch Switch US AU Standard Tuya Smart Switch
Free APP-
Using the free 'Smart Life' APP, you can schedule a lamp to turn on at sunset,or turn on a fan before you arrive by scheduling.
Voice Control-
Compatible with smart life Tuya app Amazon Alaxa ,Google home assistant and IFTTT in IOS or Android ,control your home appliances by simply giving voice commands to Amazon Alexa or Google Assistant .
Timing Function-
Schedule switch automatically power electronics on and off based on specific time you set ; Power saving eliminate wasteful standby power and prevent overcharging and overheating save on your electric bills and extend product life.
Remote Control-
Intelligent control in all directions, c
ontrol your household appliances via your phone whenever and wherever you are after downloading the FREE APP Smart Life as long as there is a network.
Replace the traditional version-
WiFi Smart Light Switch uses your existing home WiFi network to provide wireless control of your lights from anywhere,no hub required,it can easy replace the traditional 1/2/3/4 gang switches directly. The smart light switch also a normal switch,simply touch the switch to toggle your lights on or off.
Lighting up anywhere anytime ;smart timing on/off light;family sharing control function ;safety wet hand control switch.
Product Show
Installation Instructions
Installation Step1:
Open the panel by screw driver.
Installation Step2:
Connect wires and tighten the screws.
Installation Step3:
Use the two screws to fix switch to wall
Installation Step4:
Cover the panel ,and connect the power
Note:
Always switch off the main electric supply during installation ,and ,if you test the switch by touching the pad directly(without panel),take power off for min ,10mins after test ,then put on the panel and use .
Packing & Delivery
1PC per box
Size/Box: 138x89x55mm
50Pcs per carton.
Size/Carton: 48x30x31cm
