Quick Details
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
2400 - 4800 r.p.m
-
Place of Origin:
-
Jiangsu, China, Jiangsu,China
-
Brand Name:
-
KUAYUE, Kuayue
-
Voltage:
-
Customized, 220v/380v/440v
-
Dimension(L*W*H):
-
Customizable
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
New Product
-
Application Industries:
-
Manufacturing Plant, Food & Beverage Factory, Farms, Chemical Industry
-
Output(kg/h):
-
10-2000 kg/h
-
Output Size(mesh):
-
10-120 mesh
-
Range of Spindle speed(r.p.m):
-
2400-5800 r.p.m
-
Weight(kg):
-
300 kg
-
Feeding Size(mm):
-
1-50 mm
Quick Details
-
Output (kg/h):
-
30 - 1500 kg/h
-
Feeding Size (mm):
-
3 - 20 mm
-
Output Size (mesh):
-
10 - 120 mesh
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
2400 - 4800 r.p.m
-
Place of Origin:
-
Jiangsu, China, Jiangsu,China
-
Brand Name:
-
KUAYUE, Kuayue
-
Voltage:
-
Customized, 220v/380v/440v
-
Dimension(L*W*H):
-
Customizable
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
New Product
-
Application Industries:
-
Manufacturing Plant, Food & Beverage Factory, Farms, Chemical Industry
-
Output(kg/h):
-
10-2000 kg/h
-
Output Size(mesh):
-
10-120 mesh
-
Range of Spindle speed(r.p.m):
-
2400-5800 r.p.m
-
Weight(kg):
-
300 kg
-
Feeding Size(mm):
-
1-50 mm
Product Description
Introduction

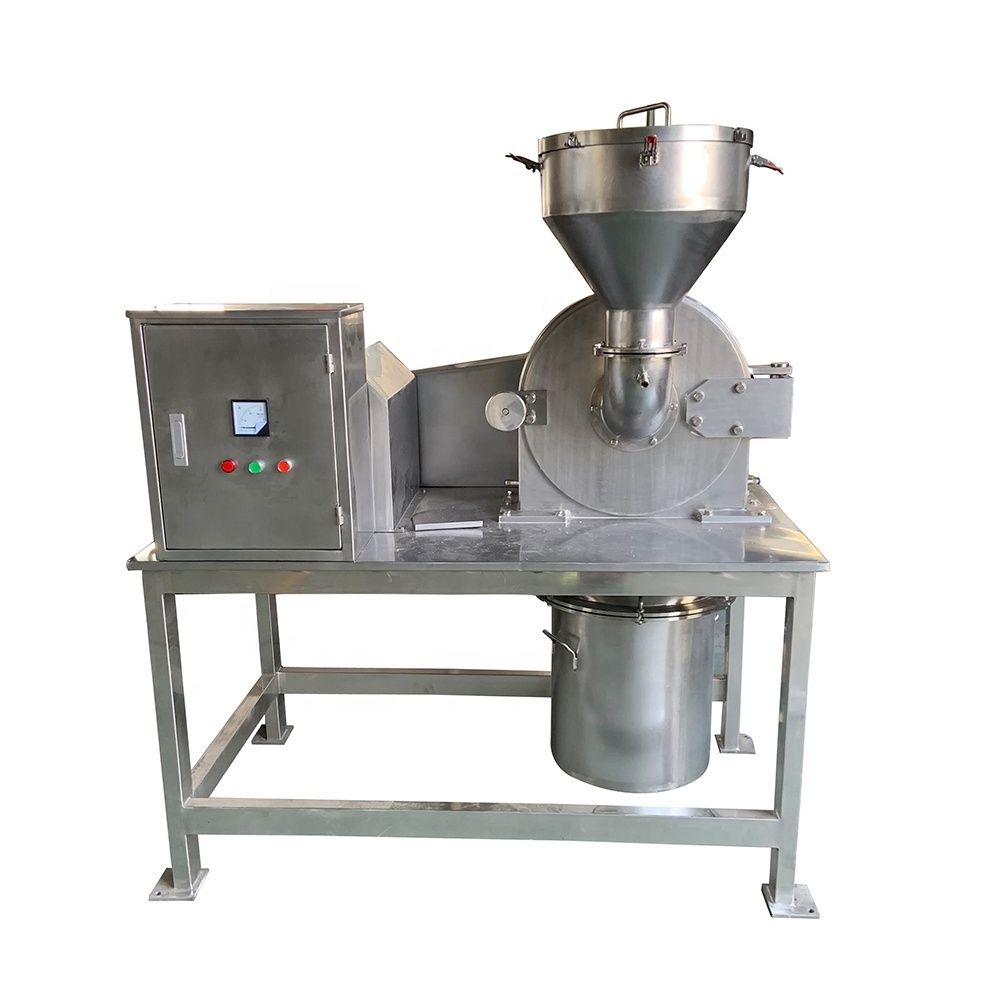

Universal pulverizer is a kind of grinding processing machinery, the working principle is to use the movable tooth disc and fixed tooth disc of high-speed relative movement, so that the crushed objects by the impact of teeth, the composite action of friction and material impacting each other is pulverized. The universal grinder has simple structure, strong, stable operation and good crushing effect. The crushed material can be discharged directly from the main mill cavity. The universal grinder is applicable to agriculture, food, chemical, alloy, metallurgy and other industries, is the supporting equipment of micro-grinding process, it is not subject to material viscosity, hardness, softness and fiber, etc. , it can play a good role in crushing any material.
Features
1. Uniform Fineness: (finished product pass rate ≥98%) , can smooth screening
2. High Output: the series can produce 2000Kg/h, and according to customer needs can be tailored to produce larger non-standard
equipment to meet the use of high-output customer requirements
3. Application: suitable for crushing all kinds of grains, sugar, plastic, and so on
4. Dedusting method: simple dedusting and Pulse dedusting
5. Material: All Stainless Steel
6. Operating system: normal buttons
7. Crushing methods: gear plate, air-cooled, hammer, turbine
Specification
|
Model
|
WF-20B
|
WF-30B
|
WF-40B
|
WF-60B
|
WF-80B
|
||||
|
Production Capacity (kg)
|
30~80
|
80~200
|
200~400
|
400~800
|
500~1000
|
||||
|
Feeding size(mm)
|
<6
|
<10
|
<10
|
<10
|
<10
|
||||
|
Crushing fiteness
(mesh)
|
10-120
|
|
|
|
|
||||
|
Motor power(kw)
|
4
|
5.5
|
7.5
|
18.5
|
22
|
||||
|
Spindle speed(rpm)
|
3800
|
3400
|
2800
|
2800
|
2400
|
||||
|
Weight(kg)
|
300
|
400
|
500
|
800
|
1100
|
||||
|
Overall dimension
(L*W*H)(mm)
|
550*550*1300
|
650*650*1400
|
750*750*1650
|
900*900*1800
|
1100*1100*2100
|
||||
Details Images
Packing & Delivery
wooden case or container for Powder Pulverizer.
