Quick Details
-
Position:
-
3
-
Function:
-
(L-1) PULSE , OFF, L-3
-
Suitable:
-
Juicer, Fan, Heater, Blender, etc.
-
Sample:
-
Free samples
-
Temperature:
-
105℃
-
Certification:
-
CQC, TUV, CB, UL, ROHS
-
Service:
-
OEM/ODM
-
MOQ:
-
1000
-
Lead time:
-
15-20 days
Quick Details
-
Max. Voltage:
-
120V.AC./250V.AC.
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
rotary switch for blender
-
Position:
-
3
-
Function:
-
(L-1) PULSE , OFF, L-3
-
Suitable:
-
Juicer, Fan, Heater, Blender, etc.
-
Sample:
-
Free samples
-
Temperature:
-
105℃
-
Certification:
-
CQC, TUV, CB, UL, ROHS
-
Service:
-
OEM/ODM
-
MOQ:
-
1000
-
Lead time:
-
15-20 days

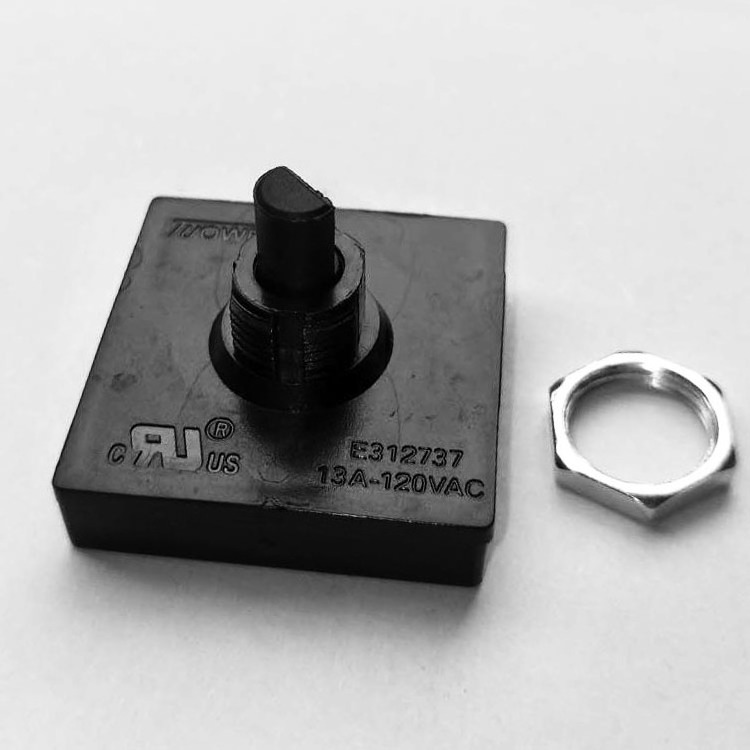

13A powerful 3 Position 1 speed pulse mixer rotary switch for blender
Ite m No.:B3200-445AF
|
Technical Parameter |
|
|
Electrical Rating |
13A-120V AC, 10(3)A-250V |
| Function | (L-1) PULSE , OFF, L-3 |
|
Rotary angle |
4 5°C |
|
Install way |
Nut mounted |
|
HZ |
60/50 |
| Load | Res/ Mot |
| Temp(C) | 105°C |
| Pol/Thr | 1/2 or M |
| PP/Circuit | --/A |
| Endur | 10K |
| SPCOA | 22-14AWG UL1015 |
|
Material: |
|
|
Cover: PC
Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC
|
|
| Rotary: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Movable Contract: Copper | |
| Terminals: Brass | |
| Base: PC Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
| Electric Heater, blower, humidifier, massage equipment, juicer, electric ovens, electric cookers, heaters and other home appliances. | |
B3200 series have many different function circuits as below:
| NO. | Position 1 | Position 2 | Position 3 | Position 4 | Position 5 |
|
1 |
L-1 | L-2 | L-3 | ||
| 2 | OFF | L-1 | L-2 | L-3 | |
| 3 | OFF | L-1 |
L-2 |
L-3 | OFF |
| 4 | OFF | L-2 | L-1-2 | L-1-2-3 | |
| 6 | OFF | L-2 | L-1-2 | L-2-3 | |
| 7 | OFF | L-1 | L-1-2 | ||
| 11 | L-1(pulse) | OFF | L-3 | L-1 | |
| 13 | OFF | L-1 | L-2 | ||
| 19 | OFF | L-1-4 | L-2-4 | L-3-4 | |
| 21 | OFF | L-4 | L-1 | L-2 | L-3 |
| 29 | OFF | L-2 | L-1-2 | L-2-3 | L-1-2-3 |
| 33 | OFF | L-1-3 | L-1-2 | L-2-3 | |
| 45 | L-1(pulse) | OFF | L-3 | ||
| 47 | OFF | L-1-3 | L-1-2 | ||
| 54 | L-1-2 | OFF | L-1-3 | ||
| 70 | OFF | L-3 | L-1 | ||
| 78 | L-1-2(pulse) | OFF | L-3 | L-1-2 |
