Quick Details
-
Model Number:
-
Gr2
-
Grade:
-
Gr2
-
Ti (Min):
-
99.99%
-
Strength:
-
410
-
Material:
-
Grade 2 Pure Titanium
-
Standard:
-
ASTM Standard B348
-
Shape:
-
Customs Made
-
MOQ:
-
1KG
-
Size:
-
Cusomized
-
Packed:
-
Wooden Case or Nornal Packing
-
PAYMENT:
-
T/T L/C PayPal Western Union
-
Technology:
-
Cold Rolled
-
Delivery date:
-
3-7days
-
Density:
-
4.51g/cm3
Quick Details
-
Application:
-
Industry
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JLE
-
Model Number:
-
Gr2
-
Grade:
-
Gr2
-
Ti (Min):
-
99.99%
-
Strength:
-
410
-
Material:
-
Grade 2 Pure Titanium
-
Standard:
-
ASTM Standard B348
-
Shape:
-
Customs Made
-
MOQ:
-
1KG
-
Size:
-
Cusomized
-
Packed:
-
Wooden Case or Nornal Packing
-
PAYMENT:
-
T/T L/C PayPal Western Union
-
Technology:
-
Cold Rolled
-
Delivery date:
-
3-7days
-
Density:
-
4.51g/cm3

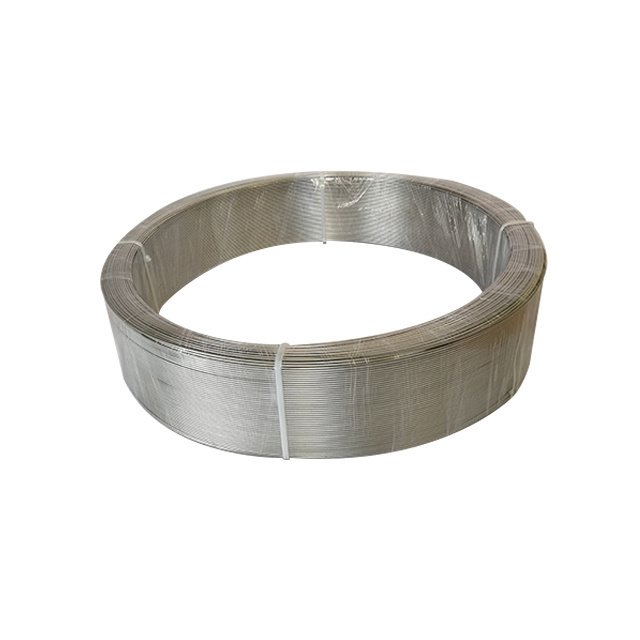

Gr2 pure titanium wire price per gram
|
Item |
Titanium wire |
|
Material |
Pure Titanium and alloy |
|
Grade |
GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12 |
|
Standard |
GB,ASTM, BS, BSW, ISO ASTM B863 ASTM B348 ASTM F67 ASTM F136 |
|
Size |
Dia(0.06--6) *L |
|
Specification |
Dia 0.03-6.0mm |
|
Certification |
ISO9001:2008 |
|
MOQ |
5 kilograms |
|
Process |
Bar billets-hot rolling-drawing-annealing-strength-pickling |
|
Surface |
Polishing, picking, acid washed, black oxide |
|
Type |
Straight , spool ,coil |
|
Application |
Welded wire, welded wire, glasses etc |
|
Wire Gauge |
0.1-8.0mm |
|
Type |
Straight, Coil, Spool |
|
Surface Treatment |
Pickling Polished |
|
Application |
Chemical equipment, such as pipes, heat exchangers, evaporators, heaters, reaction kettles et |
Chemical Composition
|
Grade |
N |
C |
H |
Fe |
O |
Al |
V |
Pa |
Mo |
Ni |
Ti |
|
Gr1 |
0.03 |
0.08 |
0.015 |
0.2 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr2 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr3 |
0.05 |
0.08 |
0.015 |
0.3 |
0.35 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr4 |
0.05 |
0.08 |
0.015 |
0.5 |
0.4 |
/ |
/ |
/ |
/ |
/ |
|
|
Gr5 |
0.05 |
0.08 |
0.015 |
0.4 |
0.2 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
|
Gr7 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
|
Gr9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
|
Gr12 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
Tensile Requirements
|
Grade |
Tensile strength(min) |
Yield Strength(min) |
Elongation(%) |
||
|
ksi |
MPa |
ksi |
MPa |
||
|
Gr1 |
35 |
240 |
20 |
138 |
24 |
|
Gr2 |
50 |
345 |
40 |
275 |
20 |
|
Gr3 |
65 |
450 |
55 |
380 |
18 |
|
Gr4 |
80 |
550 |
70 |
483 |
15 |
|
Gr5 |
130 |
895 |
120 |
828 |
10 |
