Quick Details
-
Hose Inner Diameter:
-
20 mm
-
Air Consumption:
-
8-10m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BE-Focus
-
Voltage:
-
380v
-
Power:
-
5.5
-
Dimension(L*W*H):
-
1520*900*1200
-
Weight:
-
600 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Keywords:
-
Dry and Wet Mix Shoecrete Machine
-
Application:
-
Construction
-
Rated voltage:
-
380v
-
Color:
-
Customer's Requirement
-
Motor Power:
-
6 m³/h
-
Applicable materials:
-
construction works
-
Water Cement Ratio:
-
0.4-0.45
-
Operating Air Pressure:
-
0.2~0.4MPa
-
Service:
-
24 hour Online After-sale Service
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Max. Conveying Distance:
-
30m
-
Max Aggregate Size:
-
15mm
-
Hose Inner Diameter:
-
20 mm
-
Air Consumption:
-
8-10m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BE-Focus
-
Voltage:
-
380v
-
Power:
-
5.5
-
Dimension(L*W*H):
-
1520*900*1200
-
Weight:
-
600 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Keywords:
-
Dry and Wet Mix Shoecrete Machine
-
Application:
-
Construction
-
Rated voltage:
-
380v
-
Color:
-
Customer's Requirement
-
Motor Power:
-
6 m³/h
-
Applicable materials:
-
construction works
-
Water Cement Ratio:
-
0.4-0.45
-
Operating Air Pressure:
-
0.2~0.4MPa
-
Service:
-
24 hour Online After-sale Service
Production Show

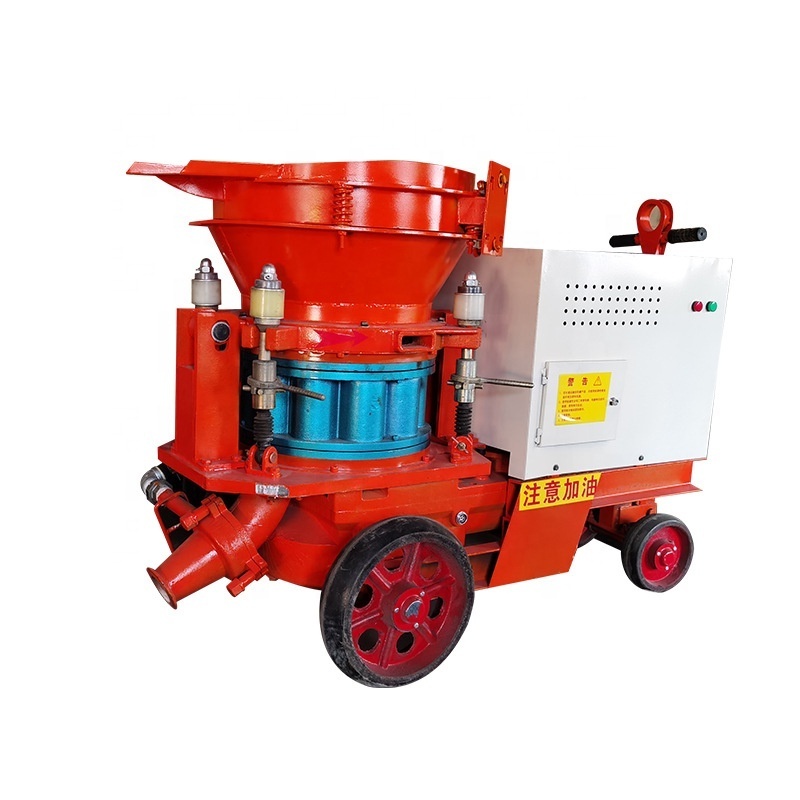

Dry concrete spraying equipment is the most ideal equipment for concrete bolt spraying construction, wet spraying, and wet spraying. It is widely used in the construction of anchor and shotcrete support for tunnels, culverts, and underground projects. The uniquely manufactured rubber bushing block on the hydrocyclone facilitates the delivery of the mixture. Stable performance, convenient maintenance, energy saving, long service life, environmental protection, and improved coating quality.
|
Model
|
PZ-6
|
PZ-7
|
|
throughput
|
6m3/h
|
7m3/h
|
|
working pressure
|
0.2Mpa-0.4Mpa
|
0.2Mpa-0.4Mpa
|
|
Air consumption
|
8-10m3/min
|
8-10m3/min
|
|
Motor power
|
5.5KW
|
7.5KW
|
|
Woltage
|
380V
|
380V
|
|
transmission distance
|
200M
|
200M
|
|
Transmission height
|
20M
|
20M
|
|
Maximum aggregate size
|
20mm
|
20mm
|
|
Outlet diameter
|
51mm
|
57mm
|
|
Weight
|
600KG
|
850KG
|
|
size
|
1520*900*1200mm
|
1600*900*1200mm
|
