Quick Details
-
Design Style:
-
Modern
-
Surface Treatment:
-
Anodized, Brushed, Mirror, PE Coated, Printing, PVDF Coated
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
huarui
-
Model Number:
-
st-036
-
Product name:
-
stone veneer honeycomb panel
-
Finish:
-
marble,granite,travertine,sandstone,onxy
-
Finish thickness:
-
3-6mm
-
Feature:
-
A2 fireproof,stable,lighteweight
-
Standard thickness:
-
15mm,20mm,25mm,30mm etc
-
Substrate panels:
-
Aluminum honeycomb panel,fiberglass honeycomb panel
-
Keyword:
-
lightweight, easy to install, energy saving
Quick Details
-
Warranty:
-
More than 5 years
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building,school,mall,airport, curtain wall cladding
-
Design Style:
-
Modern
-
Surface Treatment:
-
Anodized, Brushed, Mirror, PE Coated, Printing, PVDF Coated
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
huarui
-
Model Number:
-
st-036
-
Product name:
-
stone veneer honeycomb panel
-
Finish:
-
marble,granite,travertine,sandstone,onxy
-
Finish thickness:
-
3-6mm
-
Feature:
-
A2 fireproof,stable,lighteweight
-
Standard thickness:
-
15mm,20mm,25mm,30mm etc
-
Substrate panels:
-
Aluminum honeycomb panel,fiberglass honeycomb panel
-
Keyword:
-
lightweight, easy to install, energy saving
fiberglass honeycomb panels backing stone veneer honeycomb wall cladding
| Product description |

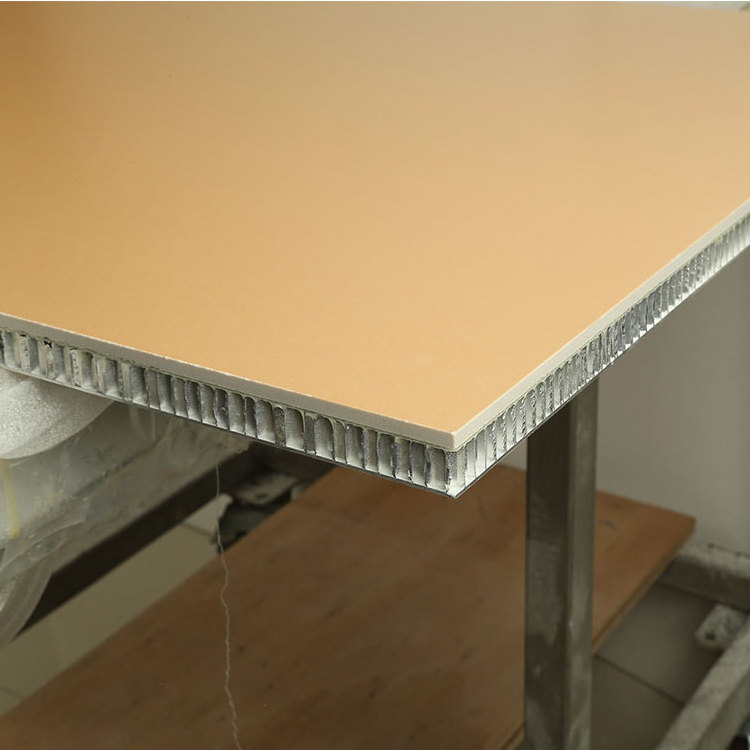

Stone honeycomb panel is sandwich structure made of thin stone veneer reinforced with aluminum honeycomb panel or fiberglass honeycomb panels. The stone veneer can be made from almost any stone available. It has good performance as lightweight,high strength,large format cladding,design flexibility for external and internal wall cladding.
| Structure | Face finish | 3-6mm Porcelain sheet/natural stone veneer |
| Adhesive | epoxy resin | |
| Substrate panels | Aluminum honeycomb panel,fiberglass honeycomb panel | |
| Honeycomb core material | Aluminum honeycomb ( 1 / 4 ” ,3/8 ”cell size , aluminum foil 0.04 to 0.08mm ) | |
| Specification | Standard thickness(mm) | 15mm,20mm,25mm,30mm etc |
| Max size ( marble) | 1500*3000mm | |
| Max size ( granite ) | 1200*2400mm | |
| Edge design | Open/close/solid ( on your request ) | |
| Feature |
| Application |
