QT4-15 blocks making machine automatic brick block maker machine concrete Block Maker for sale

QT4-15 blocks making machine automatic brick block maker machine concrete Block Maker for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $14000

≥2 Sets

US $13750

≥5 Sets

US $13400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brick size:: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm

Place of Origin:: Shandong, China

Brand Name:: Sancidalo

Voltage:: 220V/380V/440V

Dimension(L*W*H):: 4200*1920*2400mm

Marketing Type:: Hot Product 2021

Weight (KG):: 5200 kg

After-sales Service Provided:: Engineers available to service machinery overseas

Weight:: 3.15T

Vibration frequency:: 50~70Hz

Molding cycle:: 15s

Vibration force:: 45KN

Control system:: Hyraulic PLC conctrol

Pallet size:: 880*580*20/25mm

Products:: hollow block,slab,paver,interlock,solid,curbstone

Keywords:: Block Maker for sale

Raw material:: cement, sand, crushed stone, fly ash, etc.

Quick Details

Type:: Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine

Brick Raw Material:: CONCRETE

Production Capacity (Pieces/8 hours):: 5600-20000 pcs/day

Brick size:: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm

Place of Origin:: Shandong, China

Brand Name:: Sancidalo

Voltage:: 220V/380V/440V

Dimension(L*W*H):: 4200*1920*2400mm

Marketing Type:: Hot Product 2021

Weight (KG):: 5200 kg

After-sales Service Provided:: Engineers available to service machinery overseas

Weight:: 3.15T

Vibration frequency:: 50~70Hz

Molding cycle:: 15s

Vibration force:: 45KN

Control system:: Hyraulic PLC conctrol

Pallet size:: 880*580*20/25mm

Products:: hollow block,slab,paver,interlock,solid,curbstone

Keywords:: Block Maker for sale

Raw material:: cement, sand, crushed stone, fly ash, etc.

Product Description

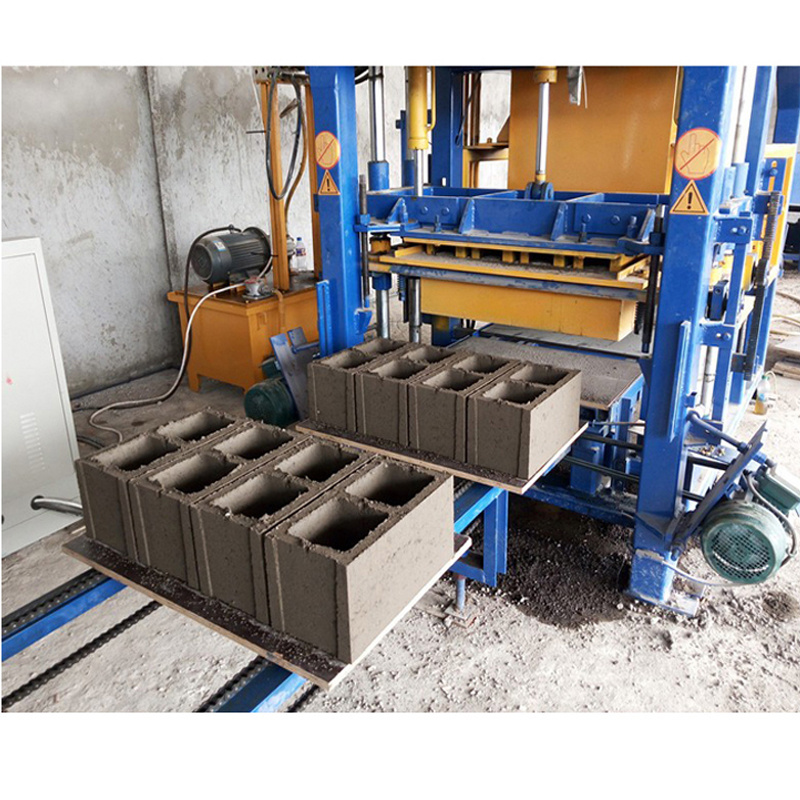

QT4-15 Concrete Block Making Machine Block Maker For Sale In Nigeria
1. Fully automatic with PLC Block Maker for sale

2. Hydraulic working method , protect machine form damage and working stable. Blocks high density and strength

3. Produce hollow block, solid brick, paver brick, interlocking brick, curbstone etc.

4. Automatic pallet feeding, material feeding, blocks conveying etc. saving labor force.

5. High cost performance, low price .

6. This qt4-15 Block Maker for sale is on SALES PROMOTIONS in March

7. Video link on Youtube: https://youtu.be/lDEjRp4KSh4

https://www.youtube.com/watch?v=C3vSiNes28k&list=PLO7bL0B6AQNjEOin5mEJFYupS9IHwtQho&index=64

https://youtu.be/crBpLd9VyNM

https://youtu.be/bvMRGWtdy9k

Dimension of host machine	4200x1920xx4000mm
Pallet size	880580 25/20mm
Total power	15.7kw
Whole line	27.05kw
Weight	Weight
Whole line power	40kw
Vibration method	Mould and platform vibration
Molding cycle	15~20s
Intensity of pressure	15-20Mpa
Mixer	JD500 with lifting hopper
Stacker	single row

Equiped concrete mixer

Name: JD500 concrete mixer with lifting hopper

Mixer diameter: 1.5m

Power: 11kw

Feeding volume: 800L

Discharging volume: 500L

Capacity: >=20cbm/h

Max. aggregate diameter: 60/40

Quantity of mixing blade: 28

Revolving speed: 4

Dimension: 3620×2210×3985mm

Discharging height: 658

Weight: 1240kgs

Stacker(Stacking machine)
Using to stack the blocks pallet by pallet
We provide your 2 sets trolley help you delivery the pallet from stacker to drying area.

Dimension: 2100x1800x2300mm

Weight: 0.45Ton

Power: 1.5kw

Detailed Images

1. There are some photos of this Block Maker for sale workshop and warehouse.

2. Our factory usually prepare several sets of host brick machine in stock as the busy season, so we are short delivery time.

3. We are doing SALES PROMOTIONS of this qt4-15 i n MARCH with lowest price, kindly contact me to get more details.

Bricks Capacity

This Block Maker for sale could produce Various kinds of Hollow, Solid, Interlocking, Paver brick, Curbstone, Habiterra etc. with changing moulds.

Packing&Shipping

1. Shipping marks: N/M
2. Packing: Nude in 1x40HQ container
3. Terms of payment: 30% prepayment by T/T,the balance before delivery.
4. Delivery period: 30 days after receipt of the prepayment.
5. Terms of delivery: From our factory to Qingdao Port,China
6. Guarantee:A warranty period for the Machine is 12 months from the date of delivery.
