Quick Details
-
Capacity:
-
1 ton
-
Power supply:
-
3 Phase AC 380V 50HZ/according to client's request
-
Standard Lifting Height:
-
3-30m
-
Control Method:
-
Remote Control Optional
-
Travelling Speed:
-
fixed hook type or slow 11m/min,fast 21m/min
-
Chain:
-
FEC G80chain
-
OEM:
-
Avaiable
-
Net Weight:
-
65/53kg
-
Color:
-
customized Color Acceptable
-
Keywords:
-
Chain Sling
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hubei, China
-
After-sales Service Provided:
-
Online support
-
Capacity:
-
1 ton
-
Power supply:
-
3 Phase AC 380V 50HZ/according to client's request
-
Standard Lifting Height:
-
3-30m
-
Control Method:
-
Remote Control Optional
-
Travelling Speed:
-
fixed hook type or slow 11m/min,fast 21m/min
-
Chain:
-
FEC G80chain
-
OEM:
-
Avaiable
-
Net Weight:
-
65/53kg
-
Color:
-
customized Color Acceptable
-
Keywords:
-
Chain Sling
-
Certification:
-
CE

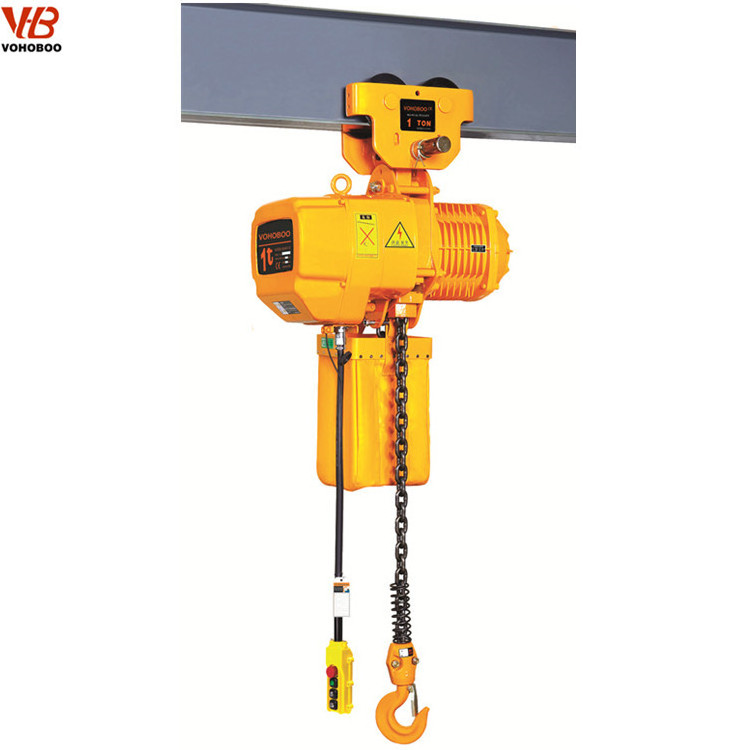

HHBB Electric chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the most important parts of the machine is chain and brake system.
Product parameters:
| single or double lifting speed based on client's request | |||||||||||
| Model | 0.5-01 | 01-01 | 01-02 | 1.5-01 | 02-01 | 02-02 | 2.5-01 | 03.-01 | 03-02 | 03-03 | 05-02 |
| Capacity(T) | 0.5 | 1 | 1 | 1.5 | 2 | 2 | 2.5 | 3 | 3 | 3 | 5 |
| Lifting speed(m/min) | 7.2/2.4 | 6.9/2.3 | 3.6/1.2 | 8.8/2.9 | 6.6/2.2 | 3.3/1.1 | 5.6/1.8 | 5.6/1.8 | 3.3/1.1 | 2.2/0.8 | 2.8/0.9 |
| Power supply | 3-phase 380V 50Hz/according to client;s request | ||||||||||
| Travelling speed (m/min) | fixed hook type or slow 11m/min,fast21m/min | ||||||||||
| Net weight(kg) | 47 | 65 | 53 | 108 | 108 | 73 | 115 | 115 | 131 | 85 | 145 |
Advantages:
1. We are professional with electric chain hoist with rich production experience over 10 years.
2. Electric chain hoist capacity from 500kg to 30T , hook type or trolley type .
3. All the electric chain hoist have CE certification .
4. Electric chain hoist with light but hard shell.
5. G80 chain with good quality.
6. Hook be hot forged with perfect strength , hard to break.
7. Push button, remote control with high quality.
8. Electric chain hoist can be equipped with rain cover , travel limiter , overload limiter.
9. Single speed or dual speed as your required.
10. Three phase electric chain hoist : voltage from 220V -690V , 50/60HZ , 3 phase , and we can also produce single phase chain hoist.
11. Color can be made as your required : blue , yellow , orange , red , etc.
12. OEM available.
