Quick Details
-
Brand Name:
-
Ipandee
-
Model Number:
-
MS96H50
-
Work Time (h):
-
24h
-
Max PV Power:
-
5200W
-
Max PV Voltage:
-
300VDC
-
Certificate:
-
CE, FCC, ROHS
-
Warranty:
-
2 years
-
Product name:
-

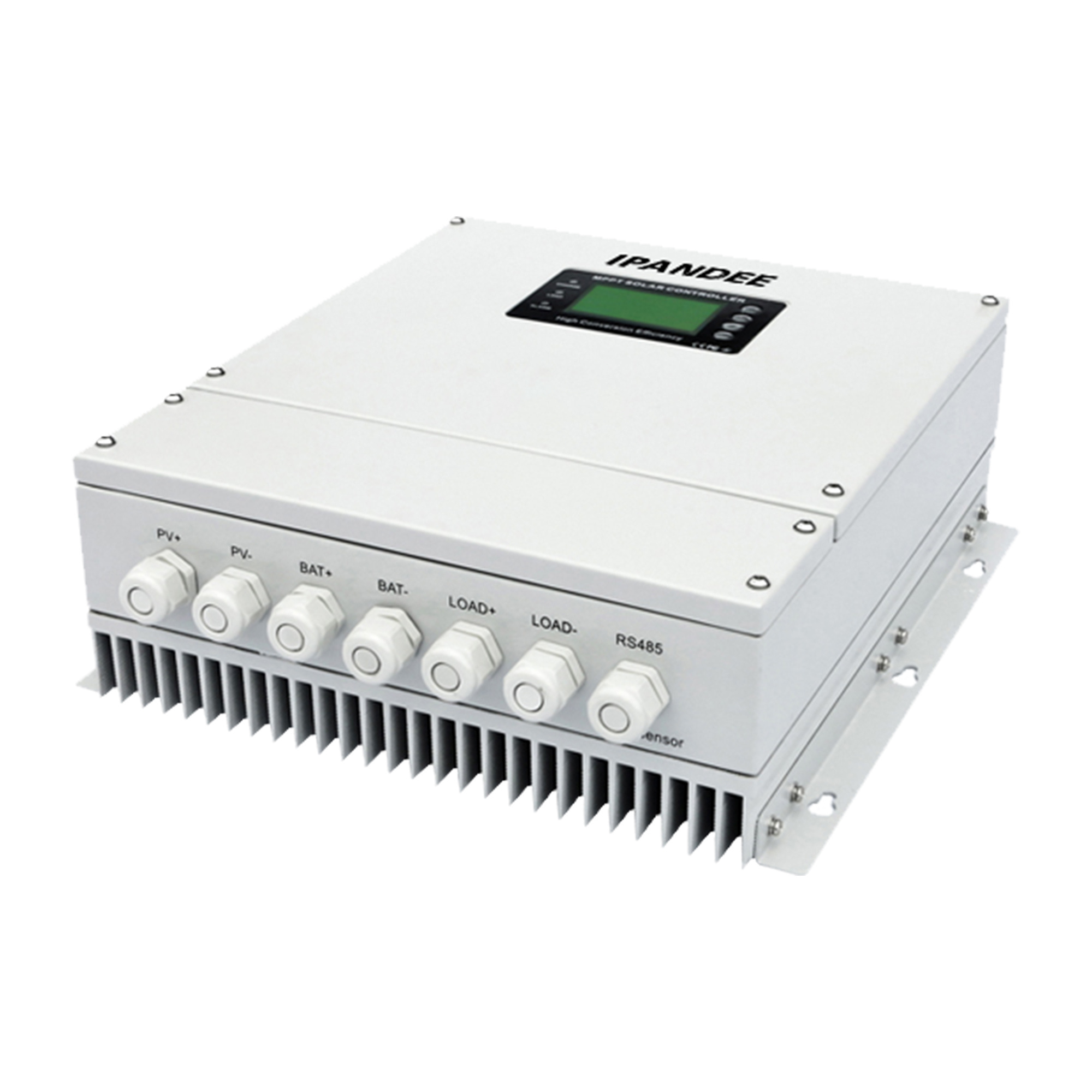

5Kw 300Vdc Mppt Solar Charger Regulator 50A 96V Charge Controller
-
conversion effeciency:
-
99.5%
-
Manufacturer:
-
YES
-
Display:
-
High-definition LCD segment code backlight display
-
Portection:
-
Input & output over-volt / low-voltage protection etc
-
Battery type:
-
SEL, GEL, FLD, LIT or user-defined (Lithium, others)
-
Communication port:
-
Dual RJ45 port / RS485 / support PC software monitoring/app wifi etc
-
Charge rated Current:
-
50A
-
System voltage:
-
DC 96V
-
Function:
-
Solar Charging
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ipandee
-
Model Number:
-
MS96H50
-
Work Time (h):
-
24h
-
Max PV Power:
-
5200W
-
Max PV Voltage:
-
300VDC
-
Certificate:
-
CE, FCC, ROHS
-
Warranty:
-
2 years
-
Product name:
-
5Kw 300Vdc Mppt Solar Charger Regulator 50A 96V Charge Controller
-
conversion effeciency:
-
99.5%
-
Manufacturer:
-
YES
-
Display:
-
High-definition LCD segment code backlight display
-
Portection:
-
Input & output over-volt / low-voltage protection etc
-
Battery type:
-
SEL, GEL, FLD, LIT or user-defined (Lithium, others)
-
Communication port:
-
Dual RJ45 port / RS485 / support PC software monitoring/app wifi etc
-
Charge rated Current:
-
50A
-
System voltage:
-
DC 96V
-
Function:
-
Solar Charging
Products Description
|
Mars Series
|
|
|
MS48L80
|
MS48L100
|
MS48H80
|
MS48H100
|
||||
|
Product Category
|
MPPT efficiency
|
|
≥99.5%
|
|
|
|
||||
|
|
Standby power
|
|
——
|
|
|
|
||||
|
|
Heat-Dissipating method
|
|
Self cooling
|
|
|
|
||||
|
|
System voltage
|
|
Auto
|
|
48V
|
96V
|
||||
|
Input Characteristics
|
Max.PV input voltage(Voc)
|
|
DC150V
|
|
DC300V
|
|
||||
|
|
Start-up charging voltage
|
|
Real-time battery voltage +3V
|
|
Real-time battery voltage10V
|
|
||||
|
|
Low input voltage protection
|
|
Real-time battery voltage +2V
|
|
Real-time battery voltage5V
|
|
||||
|
|
Over voltage protection / Recovery
|
|
DC150V
|
|
DC300V
|
|
||||
|
|
Reted PV Power
|
12V system
|
1040W
|
1300W
|
——
|
——
|
||||
|
|
|
24V system
|
2080W
|
2600W
|
——
|
——
|
||||
|
|
|
36V system
|
3120W
|
3900W
|
——
|
——
|
||||
|
|
|
48V system
|
4160W
|
5200W
|
4160W——
|
——
|
||||
|
|
|
96V system
|
——
|
——
|
——
|
5200W
|
||||
|
Charge Characteristics
|
Battery types
|
|
Sealed(SEL),Gel(GEL),Flooded(FLD),User-defined(USER),Li-ion(LIT)
|
|
|
|
||||
|
|
Rated charge current
|
|
80A
|
100A
|
80
|
50A
|
||||
|
|
Temperature compensation
|
|
-3mV/℃/2V
|
|
|
|
||||
|
|
Charge method
|
|
3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)
|
|
|
|
||||
|
|
Output voltage stability accuracy
|
|
≤±0.2V
|
|
|
|
||||
|
LOAD Characteristics
|
Load voltage
|
|
Same as battery voltage
|
|
|
|
||||
|
|
Rated load current
|
|
80A
|
100A
|
80
|
50A
|
||||
|
|
Load control mode
|
|
On/Off , PV voltage control mode, Dual-time control mode, PV + Time control mode
|
|
|
|
||||
|
|
Low voltage protection
|
|
10.5V (default), 11V (restored), settable
|
|
|
|
||||
|
|
Setting method
|
|
PC software / APP / Controller
|
|
|
|
||||
|
Display & Communication
|
Display
|
|
HD LCD backlight display
|
|
|
|
||||
|
|
Communication
|
|
Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring
|
|
|
|
||||
|
Other Parameters
|
Protections
|
|
Input & output over-volt / low-voltage protection, reverse polarity protection, over-heating protection, battery shedding
protection etc.
|
|
|
|
||||
|
|
Operating ambient temperature
|
|
-20℃~+50℃
|
|
|
|
||||
|
|
Storage temperature
|
|
-40℃~+75℃
|
|
|
|
||||
|
|
IP(Ingress protection)
|
|
IP65
|
|
|
|
||||
|
|
Altitude
|
|
0~3000m
|
|
|
|
||||
|
|
Max. Witing size
|
|
50m㎡
|
|
|
|
||||
|
|
N.weight /G.weight (KG)
|
|
12.8/13
|
|
|
|
||||
|
|
Product size /Packing size (mm)
|
|
500x350x140/600x448x265
|
|
|
|
||||
