Quick Details
-
Weight:
-
7500 KG
-
Drilling Diameter:
-
140mm
-
Mobility:
-
Move by crawler
-
Drill Pipe Length:
-
5 M
-
Main Motor Power:
-
92 Kw
-
Lifting Force:
-
16 T
-
Walking Speed:
-
2.5km/H
-
Drill Pipe Diameter:
-
102mm
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
CS Drill
-
Dimension(L*W*H):
-
5900*2000*2200mm
-
Weight:
-
7500 KG
-
Drilling Diameter:
-
140mm
-
Mobility:
-
Move by crawler
-
Drill Pipe Length:
-
5 M
-
Main Motor Power:
-
92 Kw
-
Lifting Force:
-
16 T
-
Walking Speed:
-
2.5km/H
-
Drill Pipe Diameter:
-
102mm

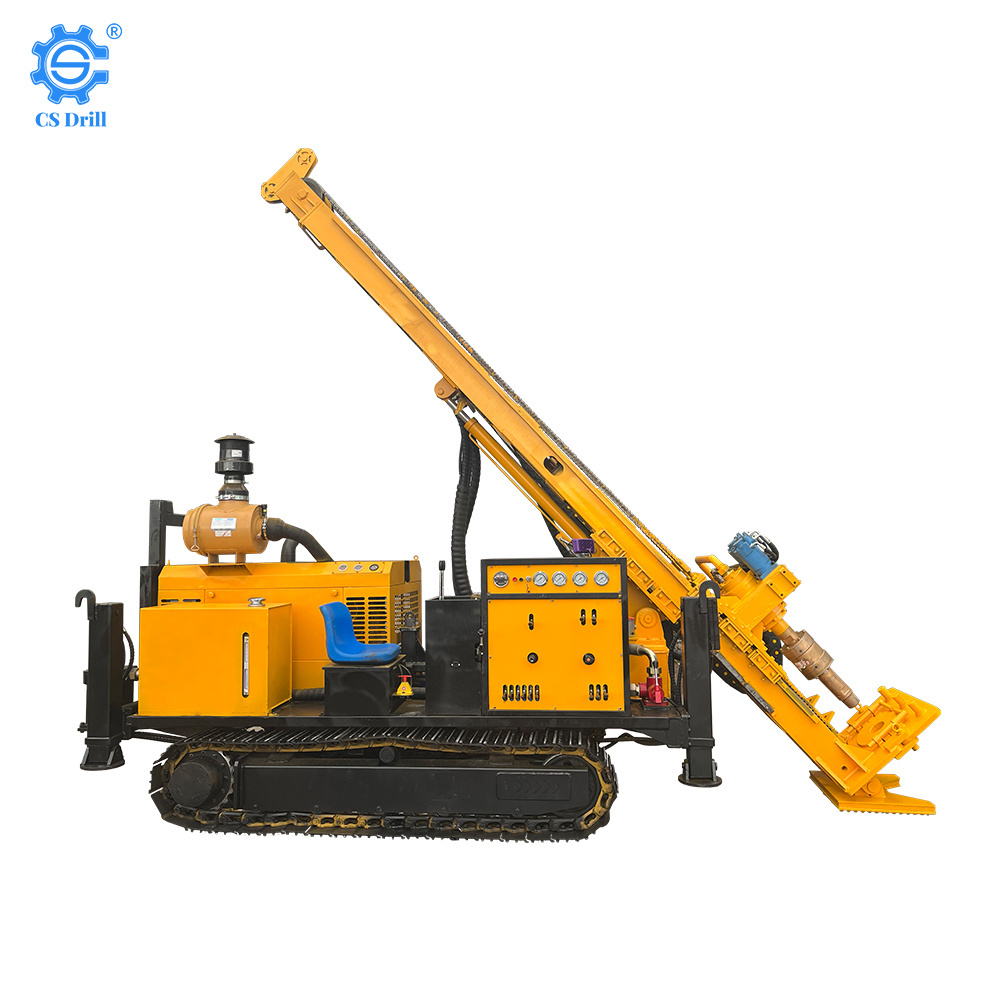

Product Description
Product Features:
1. Fast and economical
2. High production rates compared with traditional core drilling
3. High quality, uncontaminated mineral samples
4. Reverse circulation is a quick and efficient method that has the potential to cut overall drilling costs significantly, while maintaining good sampling quality.
|
Weight
|
7500 KG
|
|
|
||
|
Drilling diameter
|
140 mm
|
|
|
||
|
Drilling Depth
|
500 m
|
|
|
||
|
Walking speed
|
2.5 KM/H
|
|
|
||
|
Main motor power
|
92 kw
|
|
|
||
|
Working air pressure
|
3.0 Mpa
|
|
|
||
|
Drill pipe diameter
|
102mm
|
|
|
||
|
Drill pipe length
|
3 m
|
|
|
||
|
Swing speed
|
55-115 RPM
|
|
|
||
|
Swing torque
|
6200-8500 N.M
|
|
|
||
|
Rig lifting force
|
16T
|
|
|
||
|
Air consumption
|
17-35 m³/min
|
|
|
||
|
Gradeability
|
30 MAX
|
|
|
||
|
Advance length
|
3500mm
|
|
|
||
|
Dimension
|
5900*2000*2200mm
|
|
|
||
Product Application
Related Products
Company Introduction
Changsha DTH Drill Construction Machinery Co., Ltd has more than 20 years of drilling tools industry since 1996. Its predecessor was the designated processing workplace of down-the-hole drilling tools of Changsha Institute of Mining Research. It is the Institute of Metal Research of the Chinese Academy of Sciences, the National Institute of Materials Research (NIMS) of Japan, and the partner of University of Queensland, Australia, the Swiss Federal Institute of Technology (EMPA).
Packing & Delivery
Certificate
-
CE Certificate
-
Quality Certificate
Certificate of conformity
Contact us
FAQ
1. Are you exact manufacturer or just trading company?
We are both, we have our own factory. And also have many long-relationship factories.
2.What is your minimum order quantity?
Our MOQ are 1pc or 1 complete set, the price may rely on the order quantity. We are welcome your sample order to testing our quality。
3. Can you accept OEM & ODM?
Yes, both of them are acceptable,.Please tell us your requirements or design drawings kindly. As we have our own R&D team and the team leader is Dr.Zhao mingchun who has been always in the material research and drawing design of drilling tools for 25 years. And he had designed the world’s biggest top hammer bit and DTH hammer bit, highly praised by the users.
4. How about the delivery time?
It depends, generally it takes about 15-25. If have stocks, Usually only 5-10 days if in stock.
5. Can I have a visit to your factory before the order?
Sure, welcome, kindly contact us for address details and time schedule.
We are both, we have our own factory. And also have many long-relationship factories.
2.What is your minimum order quantity?
Our MOQ are 1pc or 1 complete set, the price may rely on the order quantity. We are welcome your sample order to testing our quality。
3. Can you accept OEM & ODM?
Yes, both of them are acceptable,.Please tell us your requirements or design drawings kindly. As we have our own R&D team and the team leader is Dr.Zhao mingchun who has been always in the material research and drawing design of drilling tools for 25 years. And he had designed the world’s biggest top hammer bit and DTH hammer bit, highly praised by the users.
4. How about the delivery time?
It depends, generally it takes about 15-25. If have stocks, Usually only 5-10 days if in stock.
5. Can I have a visit to your factory before the order?
Sure, welcome, kindly contact us for address details and time schedule.
