- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Cat6 Patch Cable
-
Shield:
-
Unshielded Twisted Pair
-
Conductor Material:
-
99.99% Bare Copper/CCA
-
Length:
-
5.5M
-
Insulation:
-
HD-PE
-
Warranty:
-
3 Years
-
Certification:
-
ROHS, REACH
-
Color:
-
Request
-
Certificate:
-
RoHS, REACH, CE
-
Jacket:
-
PVC
Quick Details
-
Brand Name:
-
Umateck
-
Model Number:
-
N211-055
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Cat6 Patch Cable
-
Shield:
-
Unshielded Twisted Pair
-
Conductor Material:
-
99.99% Bare Copper/CCA
-
Length:
-
5.5M
-
Insulation:
-
HD-PE
-
Warranty:
-
3 Years
-
Certification:
-
ROHS, REACH
-
Color:
-
Request
-
Certificate:
-
RoHS, REACH, CE
-
Jacket:
-
PVC

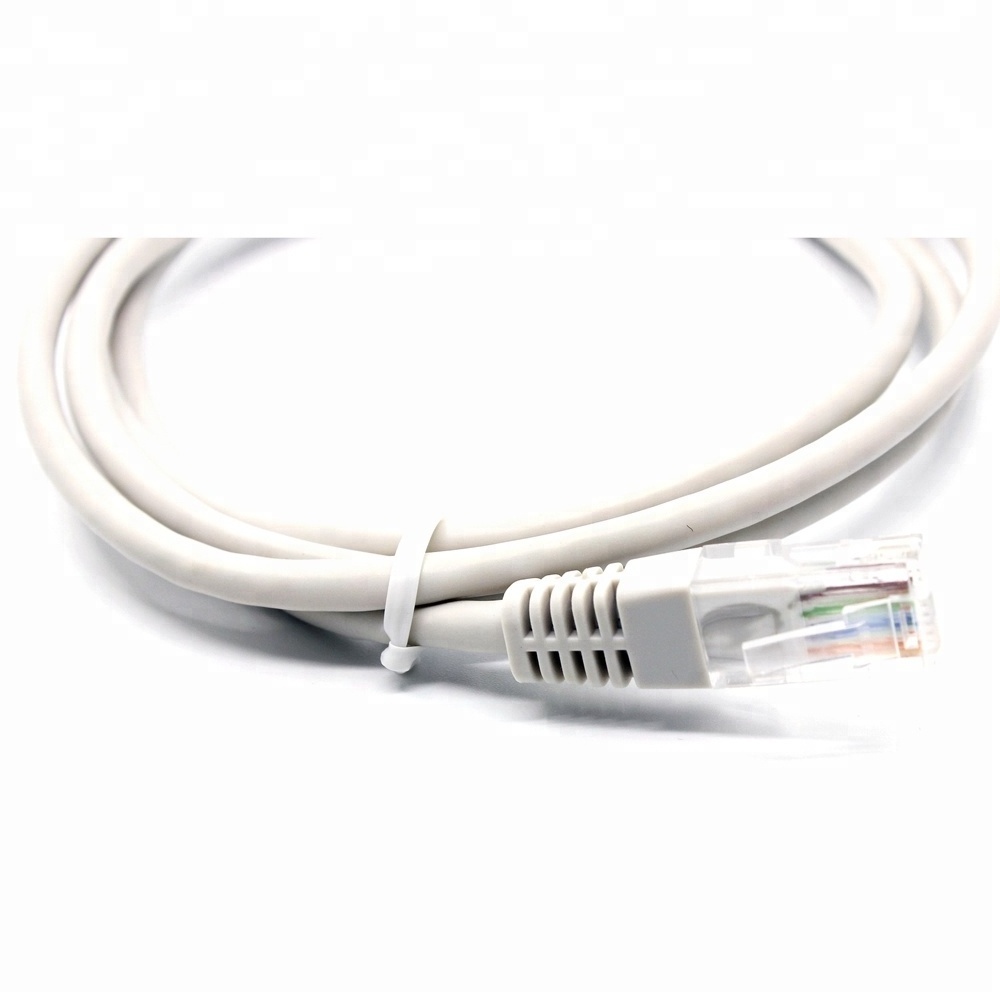

Molded RJ45 Gigabit Booted Patch Cable Cat6 Network Cable UTP - 5.5m
Key Features
• High Quality CAT6 U/UTP Unshielded Patch Cord Network Cable
• Meet TIA/EIA -568-C.2 and ISO/IEC 11801 Specification
• Provide outstanding transmission performance and low signal losses
• Tested to 500 MHz and support 1000 Base-T Gigabit Ethernet
• A wired Cat6 patch cable is more reliable and secure than a wireless network for your internet connections
Electrical Characteristics
• Conductor DC Resistance – 93.8 Ohm/km (maximum)
• Insulation Resistance –100 Ohm/km (minimum)
• Capacitance - 5600pf/100m
• Propagation Delay –545ns/100m (maximum)
• Delay Skew - 45ns/100m (maximum)
Physical Characteristics:
• Voltage Rating – 30V
• Temperature Rating - 80℃
• Operating Temperature Range - -20℃- 80℃
• Storage Temperature Range - -25℃- 85℃
• Approvals – RoHS, FCC, REACH Compliant
Conductor 1 (4 Pairs)
• Conductor Type - 26AWG CCA
• Insulation - HDPE
• Color – White-Blue/Blue, White-Orange/Orange,
White-Green/Green, White-Brown/Brown
Overall Cable
• Jacket - PVC
• Color - Grey, Blue, Black, White, Red, Yellow, Green, Pink, Orange, Purple
• O.D. 5.0±0.2mm
Technical Datasheet and testing report can be provided by email
