Quick Details
-
Cooling Capacity:
-
100ton
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
meluck
-
Voltage:
-
380V/3ph/50hz
-
Power:
-
9.5KW
-
Dimension(L*W*H):
-
Customized Size
-
Weight:
-
500 KG
-
Core Components:
-
condensing unit, PU Insulation Panels, evaporator, expansion valve, hinged door, electric control
-
After-sales Service Provided:
-
Overseas service center available
-
refrigerant:
-
R404A/R507A
-
Compressor:
-
Bitzer
-
Compressor type:
-
Semi-hermetic
-
Color:
-
Blue+Green
-
Cooling capacity:
-
61.8KW
-
Cooling water:
-
19m3/h
-
Cooling Type:
-
Water-cooled
-
Certification:
-
3C
Quick Details
-
Temperature:
-
-25℃~18℃
-
Compressor brand:
-
Bitzer
-
Panel Thickness:
-
100mm
-
Cooling Capacity:
-
100ton
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
meluck
-
Voltage:
-
380V/3ph/50hz
-
Power:
-
9.5KW
-
Dimension(L*W*H):
-
Customized Size
-
Weight:
-
500 KG
-
Core Components:
-
condensing unit, PU Insulation Panels, evaporator, expansion valve, hinged door, electric control
-
After-sales Service Provided:
-
Overseas service center available
-
refrigerant:
-
R404A/R507A
-
Compressor:
-
Bitzer
-
Compressor type:
-
Semi-hermetic
-
Color:
-
Blue+Green
-
Cooling capacity:
-
61.8KW
-
Cooling water:
-
19m3/h
-
Cooling Type:
-
Water-cooled
-
Certification:
-
3C

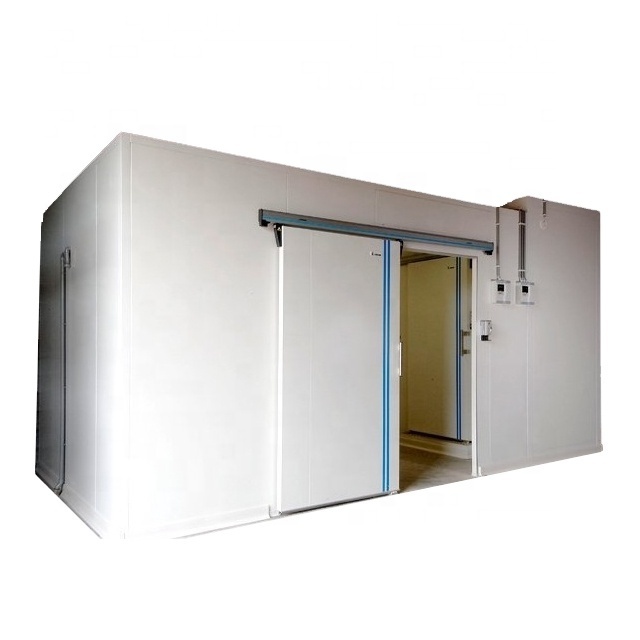

Cold Room : Cold rooms are staples of supermarkets, meat processing plant,cold chain logistics, restaurants, hotels, and any other place that needs to store fresh, frozen, or pre-cooled food products,meat, vegetables, fruits, beverage,fish. There are 3 kinds of cold rooms that we use frequently:1-chiller room(-5~5C),2-freezer room(-15~-23C),3-blast freezer room(-40~-35C).
| Walk in Chiller Room | Walk in Freezer Room | Walk in Blast Freezer Room |
|
|
|
| Chiller Room: -5~15C, most kind of fruits,vegetables,eggs,flowers,processing workshop,beer,beverage can keep storage in good quality within this cold room. | Freezer room:-23~-15C,frozen meat,fish,chicken,ice cream, seafood after frozen in blast freezer room can be kept in freezer room. | Blast freezer room: Blast Freezer room (also called blast freezer, shock freezer) is with lower storage temperature from -40°C to -35°C, it is equipped with more thicker doors, PU panels and more powerful condensing units than normal cool room. |
|
Condensing Unit |
|
• Compressor Optional :1-Hermetic Copeland Scroll 2-Bitzer semi-hermetic or Screw • Condenser :Air cooled or Water cooled(for higher ambient temperature) • Frame :can be stell shell with spray painting or open type on stell frame • Voltage :Copeland scroll-220V/1PH/50HZ or 60HZ 380V-415V/3Ph/50HZ or 60HZ Bitzer:220V~415V/3PH/60HZ • Refrigerant :R22/R404a/R410a • Capacity :Singe compressor 2HP-50HP
|
| Evaporator |
|
• Shell : Steel with spraying,Aluminum,SS304 • Temperature :DL -5~5C(fin space 4.5mm) DD -15~-20C(fin space 6.0mm) DJ -25C(fin space 9.0mm) • Fan : EBM,Weiguang,Maer • Defrosting :Hot Gas,Electric Heater • Capacity :DL 2.2-122KW DD1.4-88KW DJ:1.7-58KW • Fins :Blue fins,better heat exchane effects • Water Receiver :Double
|
|
| Installation Components |
| Copper tubes,Valves,Connections,Electric Controller box,Expansion valve,Insulation cotton |
|
|
PU Insulation Panel
•Thickness: 50MM,75MM,100MM,120MM,150MM
•Cover:Steel painting,SS304,SS316,Aluminum
•Density:38-42kg/m³
•Fireproof:B1(PIR) or B2(PUR) |
| Door : Hinged door, Manual or Electric control Sliding door |
|
Installation Accessories: Light,Sealing,PE film,Balance Window,Mushroom screws |
