- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
DAIERTEK
-
Model Number:
-
RL-240A-RCM3-VD
-
Product Name:
-
Remote Control Battery Disconnect Switch
-
Current Rating:
-
240 Amps
-
Operating Voltage:
-
12 Volts
-
Instantaneous Current:
-
500A
-
Contact Type:
-
Normally Open
-
Standby Current:
-
3mA
-
Operation Mode:
-
ON-OFF
-
Item Dimensions LxWxH:
-
5 x 4 x 1.5 inches
-
Mounting Type:
-
Panel Mount
-
Contact Material:
-
Copper
Quick Details
-
OE NO.:
-
other
-
Warranty:
-
6 Months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAIERTEK
-
Model Number:
-
RL-240A-RCM3-VD
-
Product Name:
-
Remote Control Battery Disconnect Switch
-
Current Rating:
-
240 Amps
-
Operating Voltage:
-
12 Volts
-
Instantaneous Current:
-
500A
-
Contact Type:
-
Normally Open
-
Standby Current:
-
3mA
-
Operation Mode:
-
ON-OFF
-
Item Dimensions LxWxH:
-
5 x 4 x 1.5 inches
-
Mounting Type:
-
Panel Mount
-
Contact Material:
-
Copper
PRODUCT DESCRIPTION
|
ltem
|

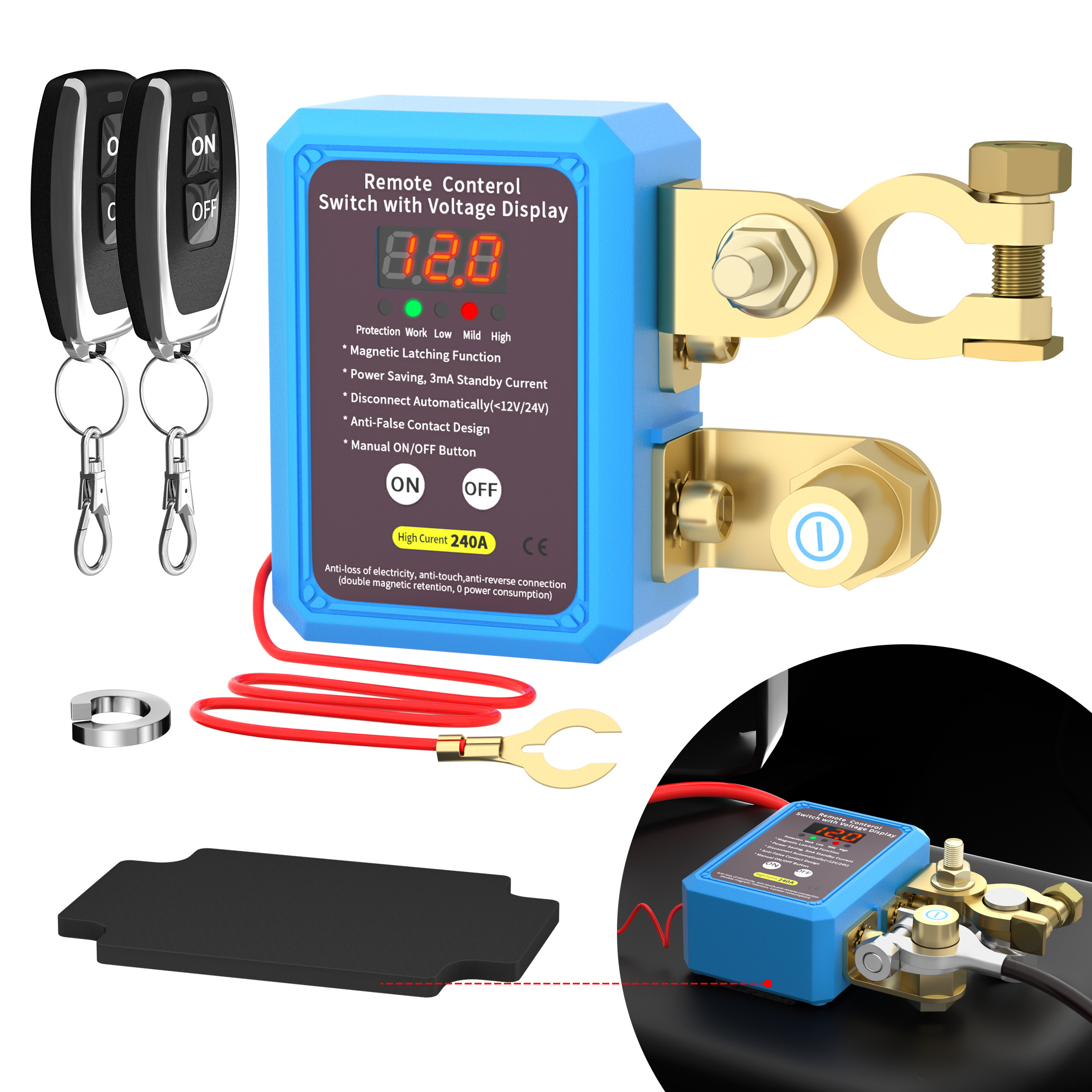

240A Remote Control Battery Disconnect Switch Isolator Led Voltage Battery Disconnect Cut Off Switch for Auto Car Truck Boat
|
|
Working Voltage
|
12Volts
|
|
Current Rating
|
240A
|
|
Instantaneous Current
|
500A
|
|
Standby Current
|
3mA
|
|
Contact Type
|
Normally Open
|
PRODUCT
DETAILS
About this item
*【Specifications】-- Battery disconnect switch rated current: 240A, rated voltage: 12V, standby current: 3mA, instantaneous current: 500A.
*【Magnetic Latching Function】-- This kill switch for car uses a new type of relay that controls circuit disconnection by magnetic principle, with a standby current of 3mA, which is more energy-saving.
*【Intelligent Led Voltage Display】-- The LED voltage display detects the battery voltage at any time, if the voltage is lower than 11.8V, the remote kill switch will automatically cut off the power supply after 120s to save electricity. If the voltage is higher than 13.2V, the remote control will be disabled to prevent accidental action to turn off the power while driving, and the power supply can only be controlled by the button on the switch.
*【Easy Installation】-- The power shut off switch uses a negative connection to ensure stable performance. Please remember to turn off the power before installation.
*【Protect the Battery】-- Using this wireless car battery kill switch can avoid hidden additional power consumption due to long-term parking, aging of electronic equipment, line aging, forgetting to turn off the light, etc. It can effectively protect and prolong the life of car battery.
