Quick Details
-
Model Number:
-
DW-XRD-Y3000
-
Rated power:
-
3kw
-
Tube voltage:
-
10-60kV
-
Tube current:
-
5-80mA
-
X-ray tuble:
-
glass tube, ceramic tube, ripple ceramic tube: Cu, Fe, Co, Cr, Mo
-
Focus size:
-
1 * 10mm or 0.4 * 14mm or 2 * 12mm
-
Stability:
-
≤0.01%
-
Goniometer structure:
-
Horizontal ( a-2a)
-
Radius of diffraction:
-
185mm
-
Max. revolving speed:
-
100° /min
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Drawell
-
Model Number:
-
DW-XRD-Y3000
-
Rated power:
-
3kw
-
Tube voltage:
-
10-60kV
-
Tube current:
-
5-80mA
-
X-ray tuble:
-
glass tube, ceramic tube, ripple ceramic tube: Cu, Fe, Co, Cr, Mo
-
Focus size:
-
1 * 10mm or 0.4 * 14mm or 2 * 12mm
-
Stability:
-
≤0.01%
-
Goniometer structure:
-
Horizontal ( a-2a)
-
Radius of diffraction:
-
185mm
-
Max. revolving speed:
-
100° /min
Products Description

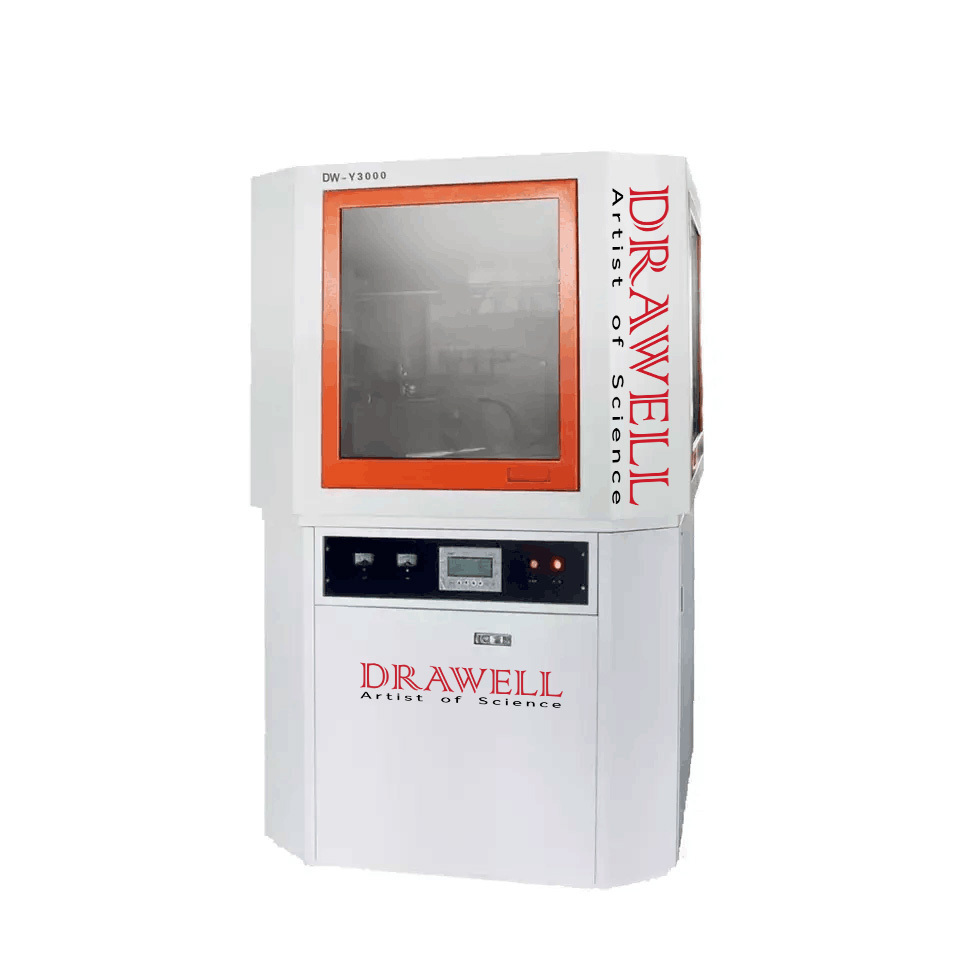

DW-XRD-Y3000 X-ray Diffraction Poron XRD Foam
Configuration List
|
Part
|
Element
|
Unit
|
Qty.
|
|
X-Ray High Voltage Generator |
1) 1505 High Voltage Transformer
|
set
|
1
|
|
|
2) DW-75kV High Voltage Cable
|
piece
|
1
|
|
|
3) 9850 Control panel
|
set
|
1
|
|
|
4) 9820 High voltage control unit
|
″
|
1
|
|
|
5) 9830 Control gate
|
″
|
1
|
|
|
6) 9810 System Case
|
″
|
1
|
|
|
7) 9840 Main power cable
|
piece
|
1
|
|
|
8) X-ray tube 2kＷ Cu, Focus size 1×10mm²
|
piece
|
1
|
|
|
9) 3306 Tube holder
|
set
|
1
|
|
|
10) 9924 X-ray Protective cover
|
″
|
1
|
|
Angle Measuring System |
1) 3501 Goniometer
|
set
|
1
|
|
|
2) Goniometer layer board
|
″
|
1
|
|
|
3) Powder sample plate with blind Holes
|
piece
|
20
|
|
|
4) Powder sample plate with through holes
|
″
|
10
|
|
|
5) Micronutrient powder sample board
|
″
|
10
|
|
|
6) Zero setting sample piece, double-knife edge slit
|
piece
|
1
|
|
|
7) Standard ruler, watch oil
|
piece
|
1
|
|
|
8) Filter Ni
|
piece
|
1
|
|
|
9) Slit
|
set
|
1
|
|
Recording and Controlling Unit |
1) 2013 Recording and controlling units
|
set
|
1
|
|
|
2) CH132 Scintillation counter
|
set
|
1
|
|
|
3) Counter cable
|
piece
|
1
|
|
|
4) Stepping motor cable
|
″
|
2
|
|
|
5) Interface cable
|
″
|
1
|
|
Circulating Water Cooling System
|
1) DW-ZFB-3000 Cooling device
|
set
|
1
|
|
|
2) 9509 Power cable
|
piece
|
1
|
|
|
3) Water pipe 6 meters
|
piece
|
2
|
|
|
4) Water relay cable
|
piece
|
1
|
|
Computer |
1) INTEL Pentium G2030, RAM 2G ,500G Hard disk 19″LCD
|
set
|
1
|
|
|
2) Canon LBP6018 Laser printer
|
″
|
1
|
|
System Control Program and Applicable Software
|
1) Data collecting and processing software
|
piece
|
1
|
|
|
2) Data analysis and processing software
|
″
|
1
|
|
|
3) Application software
|
″
|
1
|
|
|
4) Diffraction data card stock
|
″
|
1
|
|
Technical Material
|
1) DW-Y3000 X-ray diffractometer user manual
|
piece
|
1
|
|
|
2) DW-ZFB-3000 Cooling device user manual
|
″
|
1
|
|
Spare Parts
|
1) ring rubber blanket
|
piece
|
4
|
|
|
2) Fuse 2A 3A 6A
|
piece
|
10
|
