Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
STARFLO
-
Model Number:
-
FLO-2201
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
42W
-
Outlet Size:
-
9.5mm(3/8")Hose Harb Costumize
-
Power:
-
42W
-
Product name:
-
water diaphragm pump
-
Max Flow:
-
2.0LPM
-
Amps:
-
1.8A MAX
-
Duty Cycle:
-
Intermittent
-
Valves:
-
EPDM
-
Port dimension:
-
3/8" (9.5mm)Barb
-
Body Material:
-
Castlron
-
Diaphragm:
-
Santoprene
-
Fuel:
-
Electric
Quick Details
-
Application:
-
Irrigation and Agriculture, Marine, Water Treatment Solutions
-
Pressure:
-
70PSI
-
Voltage:
-
12V DC, 12V DC
-
Warranty:
-
1 year
-
Brand Name:
-
STARFLO
-
Model Number:
-
FLO-2201
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
42W
-
Outlet Size:
-
9.5mm(3/8")Hose Harb Costumize
-
Power:
-
42W
-
Product name:
-
water diaphragm pump
-
Max Flow:
-
2.0LPM
-
Amps:
-
1.8A MAX
-
Duty Cycle:
-
Intermittent
-
Valves:
-
EPDM
-
Port dimension:
-
3/8" (9.5mm)Barb
-
Body Material:
-
Castlron
-
Diaphragm:
-
Santoprene
-
Fuel:
-
Electric
STARFLO self priming electric 12V DChigh pressure Water Pump for Small Ro Water Filter Machine agriculture spray
STARFLO self priming electric 12V DChigh pressure Water Pump for Small Ro Water Filter Machine agriculture spray
DESCRIPTION:
STARFLO FLO series Industrial Pumps are designed for a wide range of applications and are constructed from a selection
of materials-suitable for handling a broad, range of chemicals. The FLO series of diaphragm pumps are self priming and can
be run dry without harm. They are intended for intermittent duty cycles but can be run continuously for short periods of time.
The higher the duy cycles the shorter the expected life of the pump.
Typical pump uses are liquid transfer, spraying, circulation, filtration and dispensing.
Operation :
To star and prime the pump, the discharge line must be open allowing trapped air to escape thus avoiding the potential of airlock.
The pressure switch wll shut off the pump automatically when the discharge valve is closed and the pressure has risen to the switch
OFF set point. The pressure switch will restart the pump when avalve is opened and the discharge line pressure drops to the ON
set point of pressure switch.
| Volts: | 12V / 24V DC |
| Type: | 2 Chamber Diaphragm |
| Port Size: | 3/8"(19MM) Hose Barb |
| Liquid | 140°F (60℃) Max |
| Self-Priming: | 4.0 feet (about 1.2M) |
| Check Valve: | EPDM or Viton |
| Run Dry: | Yes |
| Motor: | Permanet Magnet , Intermittent |
| Duty Protection: | Thermal Overload, Automatic Restart |
Features:
Built-in chec valve
Permanent Magnet motor with longer lifetime.
Antivibration pad,easy installation.
Self-priming,Top quality Automatic Pressure Switch.
can do bypass type.
Low Noise,with excellent resistant to chemical corrosion.
| Model | Volt(V) | Flow Rate(LPM/GPM) | Pressure (PSI/Bar) | Amp Draw(A) |
| FLO-2201 | 12 | 2.0(0.5) | 55(3.8) | 1.8 |
| FLO-2202 | 12 | 3.8(1.0) | 35(2.4) | 3.0 |
| FLO-2202-1 | 12 | 4.3(1.1) | 55(3.8) | 3.5 |
| FLO-2203 | 12 | 2.6(0.7) | 70(4.8) | 2.1 |
| FLO-2203-1 | 12 | 3.1(0.8) | 70(4.8) | 2.2 |
| FLO-2202A | 12 | 4.0(1.1) | 80(5.5) | 2.6 |
| FLO-2401 | 24 |
2.0(0.5) |
55(3.8) | 0.9 |
| FLO-2402 | 24 | 3.8(1.0) | 35(2.4) | 1.5 |
| FLO-2403 | 24 | 2.6(0.7) | 70(4.8) | 1.0 |
| FLO-2402A | 24 | 4.0(1.1) | 80(5.5) | 1.3 |
DIMENSION DRAWING OF MINI WATER PUMP:
APPLIATION:
RV, YACHT, PORTABLE CAR WASHER, AGRICULTURE SPRAYER, ROAD CLEANING , GARGEN IRRIGATION,
SHOWER,OUTDOOR CAMPING, MOBILE TOILET.

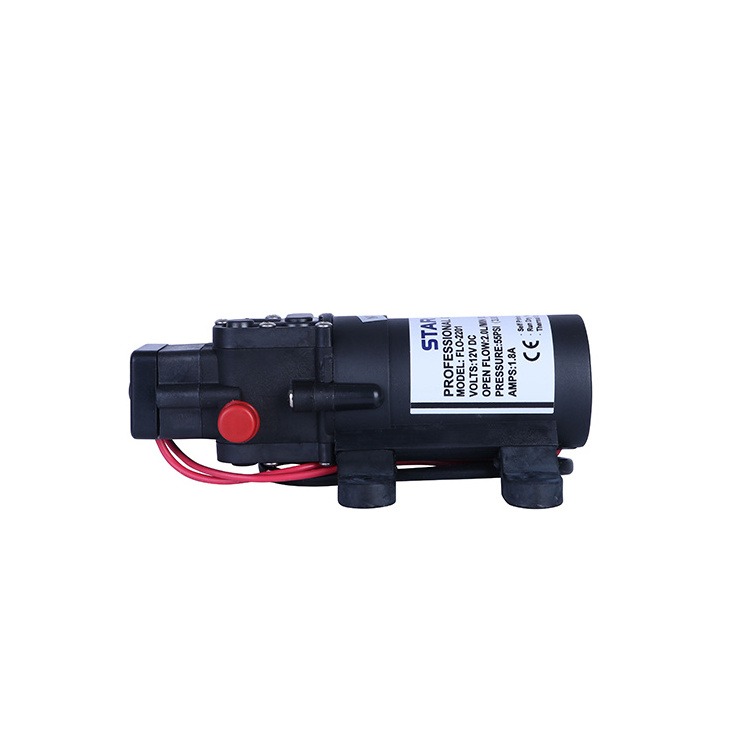

PUMP PICTURES:
Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, and have different customer make their own OEM product.
Like customers' own lable and box design with customers' logo.
Q: What i
s your terms of payment?
A: 30% T/T in advance,70% after finish production. If you have any another question, pls feel free to contact us.
Q: Can I get some samples before place order and how long for a sample?
A: Yes, Sample order is welcome, usually the sample delivery time is within 7days.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 10-15 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
Q: How do you ship the goods ?
Q: shipping by express (sample order) and by air or by sea (bulk order), please contact before order because the freight base on quantity.
Q: What is your port of loading?
A: Shanghai port, Ningbo port, Fuzhou port , Xiamen port.
SSTARFLO self priming electric 12V DChigh pressure Water Pump for Small Ro Water Filter Machine agriculture spray
