Quick Details
-
Brand Name:
-
DahoMeter
-
Model Number:
-
DH-WS2300
-
Usage:
-
Color Spectrophotometer
-
Geometric Conditions:
-
CIE Recommended lighting reception method: d/8
-
Color Space:
-
CIEL*a*b*,CIEL*C*h,Yxy
-
Standard Light Source:
-
A,C,D65,F2,(CWF)
-
Light Source:
-
Combination LED
-
Caliber:
-
4mm/8mm/16mm optional
-
After-sale Customer Service:
-
Yes
-
Testing Before Delivery:
-
Yes
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DahoMeter
-
Model Number:
-
DH-WS2300
-
Usage:
-
Color Spectrophotometer
-
Geometric Conditions:
-
CIE Recommended lighting reception method: d/8
-
Color Space:
-
CIEL*a*b*,CIEL*C*h,Yxy
-
Standard Light Source:
-
A,C,D65,F2,(CWF)
-
Light Source:
-
Combination LED
-
Caliber:
-
4mm/8mm/16mm optional
-
After-sale Customer Service:
-
Yes
-
Testing Before Delivery:
-
Yes

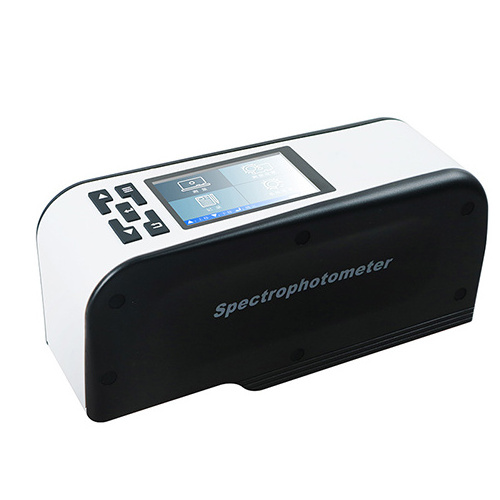

Car Paint Spectrophotometer Digital Optical Portable Color Spectrophotometer Price DH-WS2300
1.Accurate spectral data and Lab values Adopt high - precision spectroscopic system, accurately separate different wavelengths of light.
2.Multiple color space, Color difference formula, Light source
| Model | WS2300 |
| Geometric Conditions | CIE Recommended lighting reception method: d/8 |
| Color Space | CIEL*a*b*,CIEL*C*h,Yxy |
| Standard Light Source | A,C,D65,F2,(CWF) |
| Color Difference Formula | CIE E * ab, CIE E * Ch |
| Light Source | Combination LED |
| Sensor Array | CCD@2048 Pixels |
| Spectral Way | Diffraction grating |
| Measuring Caliber | φ11mm |
| Observer | CIE10°standard observer,CIE2°standard observer |
| Wavelength coverage | 400nm~700nm |
| Wavelength interval | 10nm |
| Measuring interval | 1.5 seconds |
| Measuring range | L: 0 to 100 |
| Repeated accuracy | E<0.08 (take the deviation average after 30 times measuring the whiteboard) |
| Table Difference | E |
| Battery Power | Measuring 10000 times |
| Data storage Capacity | Storage standard sample 100 |
| Storage Sample | 16,000 |
| Light Source Life | More than 20,000 hours |
| Display Screen | TFT true color 2.8inch@(16:9) |
| Size | 199*68*90mm |
| Size of Exterior Package | 38*32.5*18.5cm |
| Weight | 2.7kg |
| Humidity Temperature | Operating Temperature: -10℃~40℃ |
| Storage Temperature | -20℃~50℃ |
| Working Humidity | Relative humidity less than 85%,without condensation |
| Standard Accessories | Power adapter, standard white board, standard black cavity, lithium battery, user manual |
| Optional Accessories | Software,Micro printer |
