Quick Details
-
Weight (KG):
-
3000
-
Brand Name:
-
zhuxin
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
60 - 220 mm
-
Model Number:
-
SJ-H
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5.8*2.8*6.3M
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Film Width:
-
100-1200m
-
Film Thickness:
-
HD:0.009-0.15mm LD:0.02-0.15mm
-
Max Extrusion Output:
-
HD:35-65kg/h LD:40-80kg/h
-
Screw Diameter:
-
45-65
-
Temperature control:
-
3
-
Take-up Speed:
-
10-100m/min
-
Power Supply:
-
380V,50HZ,3PHASE
-
Outline Dimension(L*W*H):
-
3.8*2*4.1m/5*2.2*4.5m/5.5*2.5*5.2m/5.8*2.8*6.3m
-
Weight:
-
3000KG
Quick Details
-
Output (kg/h):
-
35 - 70
-
Number of Layers:
-
Single-layer
-
Screw diameter (mm):
-
65
-
Weight (KG):
-
3000
-
Brand Name:
-
zhuxin
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
60 - 220 mm
-
Model Number:
-
SJ-H
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5.8*2.8*6.3M
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Film Width:
-
100-1200m
-
Film Thickness:
-
HD:0.009-0.15mm LD:0.02-0.15mm
-
Max Extrusion Output:
-
HD:35-65kg/h LD:40-80kg/h
-
Screw Diameter:
-
45-65
-
Temperature control:
-
3
-
Take-up Speed:
-
10-100m/min
-
Power Supply:
-
380V,50HZ,3PHASE
-
Outline Dimension(L*W*H):
-
3.8*2*4.1m/5*2.2*4.5m/5.5*2.5*5.2m/5.8*2.8*6.3m
-
Weight:
-
3000KG

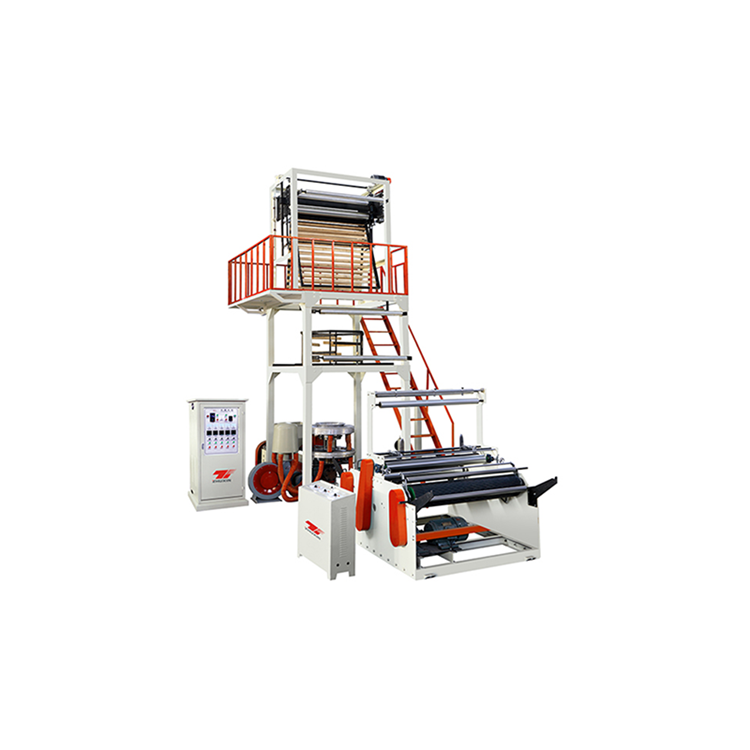

Details Images
Product Paramenters
|
Model
|
SJ-H45
|
SJ-H50
|
SJ-H55
|
SJ-H60
|
SJ-H65
|
||||
|
Suitable Material
|
HDPE LDPE LLDPE
|
|
|
|
|
||||
|
Film Width
|
100-500mm
|
300-600mm
|
400-800mm
|
500-1000mm
|
600-1200mm
|
||||
|
Film Thickness
|
HD 0.009-0.1mm
LD 0.02-0.15mm
|
|
|
|
|
||||
|
Max.Extrusion Output
|
HD 35-65kg/hr
LD 40-80kg/hr
|
150kg/hr
|
200kg/hr
|
|
|
||||
|
Screw Diameter
|
φ45
|
φ50
|
φ55
|
φ60
|
φ65
|
||||
|
Screw L/D Length
|
28:1/30:1
|
|
|
|
|
||||
|
Screw Material
|
Sacm-645/38 Crmoala
|
|
|
|
|
||||
|
Cylinder Material
|
Sacm-645/38 Crmoala
|
|
|
|
|
||||
|
Cylinder Cooling
|
370w x 1
|
370w x 2
|
|
|
|
||||
|
Main Motor
|
11kw
|
15kw
|
18.5kw
|
22kw
|
22kw
|
||||
|
Temperature Control
|
3
|
|
|
|
|
||||
|
Die Size
|
HD φ60
LD φ100
|
HD φ80
LD φ120
|
HD φ80
LD φ180
|
HD φ100
LD φ200
|
HD φ100
LD φ220
|
||||
|
Temperature Control
|
3
|
|
|
|
|
||||
|
Air Ring
|
1
|
|
|
|
|
||||
|
Air Blower
|
1.5kw
|
1.5kw
|
2.2kw
|
3kw
|
3kw
|
||||
|
Roller Width
|
600mm
|
700mm
|
900mm
|
100mm
|
1300mm
|
||||
|
Take-up Speed
|
10-100m/min
|
|
|
|
|
||||
|
Take-up Motor
|
0.75kw
|
1.1kw
|
1.5kw
|
1.5kw
|
1.5kw
|
||||
|
Type
|
Surface Friction Type
|
|
|
|
|
||||
|
Winding Speed
|
10-100m/min
|
|
10-80m/min
|
|
|
||||
|
Outline Diameter(LxWxH)
|
3.8*2*4.1m
|
5*2.2*4.5m
|
5.5*2.5*5.2m
|
5.8*2.8*6.3m
|
5.8*2.8*6.3m
|
||||
