Quick Details
-
Dimension(L*W*H):
-
164X167X192 cm
-
Warranty:
-
1 Year
-
Weight:
-
1000KG
-
Power:
-
0.75KW
-
Certification:
-
ISO
-
Max. honing depth:
-
320mm
-
Max.honing diameter:
-
170mm
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BLUESTAR
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
164X167X192 cm
-
Warranty:
-
1 Year
-
Weight:
-
1000KG
-
Power:
-
0.75KW
-
Certification:
-
ISO
-
Max. honing depth:
-
320mm
-
Max.honing diameter:
-
170mm

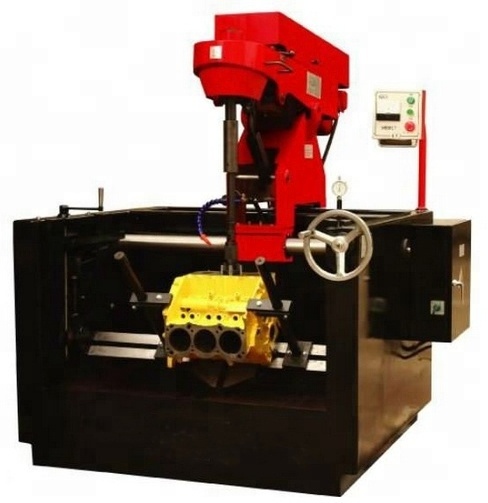

Vertical cylinder honing machine 3MB9817
Features :
The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
The machine table can shift of the fixture change 0°30°45°.
The machine table is easily up and down manually 0-180mm.
Reverse precision 0-0.4mm.
Select mesh-wire degree 0°-90° or non-mesh-wire
Reciprocating speed of up and down 0-30m/min
The machines reliable performance widely use honing, easy operation and high productivity.
Good rigidity, amount of cutting.
Main Specifications
|
Specification |
Unit |
DBS-3MB9817 |
|
Max diameter of hold honed |
mm |
35-170 |
|
Max depth of hole honed |
mm |
320 |
|
Spindle speed(4spets) |
mm |
120,160,225,290 |
|
Stork(3spets) |
a/min |
35,44,65 |
|
Power of main motor |
Kw |
1.5 |
|
Power of cooling pump motor |
Kw |
0.125 |
|
Machine working inside cavity dimensions L×W |
mm |
1400×870 |
|
Overall dimensions
|
mm |
1640×1670×1920 |
|
Machine Weight |
Kg |
1000 |
WHY CHOOSE BLUESTAR BRAND MACHINE TOOLS:
1) High quality with competitive price
2) More than 10 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS’ ONLINE SERVICE FOR PROBLEM SHOOTING (SKYPE,Trademanager)
6) 12 months quality warranty
