Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HRF
-
Dimension(L*W*H):
-
custom
-
Weight:
-
0.04 KG
-
Working Temperature Range:
-
20 - 200 ℃
-
Core Components:
-
heating wire
-
Color:
-
orange
-
Wattage:
-
90w
-
shape:
-
rectangle
-
Thickness:
-
1.5mm
-
MOQ:
-
20 pieces
-
Application:
-
fuel tank
-
Size:
-
90*110*1.5mm
Quick Details
-
Type:
-
Flexible Heater
-
Power Source:
-
Electric
-
Voltage:
-
3-600v, 230V
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HRF
-
Dimension(L*W*H):
-
custom
-
Weight:
-
0.04 KG
-
Working Temperature Range:
-
20 - 200 ℃
-
Core Components:
-
heating wire
-
Color:
-
orange
-
Wattage:
-
90w
-
shape:
-
rectangle
-
Thickness:
-
1.5mm
-
MOQ:
-
20 pieces
-
Application:
-
fuel tank
-
Size:
-
90*110*1.5mm
Quick Details
| Condition: | New | Type: | Band Heater | Power Source: | Electric |
| Place of Origin: | AnHui, China (Mainland) | Brand Name: | HRF | Model Number: | DR-M-875 |
| Dimension(L*W*H): | On cutomer's request | Weight: | Custom | Voltage: | Custome |
| Power(W): | Custom | Certification: | SGS | Warranty: | One year |
| After-sales Service Provided: | Engineers available to service machinery overseas | Size: | Any size is avaiable | Thickness: | 1.5mm(standard) or custom |
| marketing mode: | directly selling | sample: | one piece is available |
Packaging & Delivery
| Packaging Details: | PP bag/Neutral Carton/WoodenCase or as customer required |
| Delivery Detail: | 5-10 Days |
Descriptions:
- Light and flexible heater
- Heats fast and high efficiency thermal conversion
- Widely used on industry, agriculture, medical and household electrical appliances
- Can customize the practical power, voltage, size, customer's logo and more
- Lowest price and fast delivery of the goods
- Perfect after-sales service
Features:
- Heats fast and long-lasting
- Flexible and can be customized
- Waterproof and nontoxic
Technical Parameters:
| Dimension | Dimensions on request | |
| Thickness | 2mm Note: There is an extra thickness at the connection point. | |
| Heating element | Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core | Nickel-Chromium or a Copper-Nickel resistance wire |
| Voltage | Any voltage on request | |
| Output | Up to 10KW/M2 | |
| Tolerance | ±10% on resistance | |
| Max surface temperature | 250 degree | |
| Min exposure temperature | -60 degree | |
What is a Flexible Silicone Rubber Heater ?
Our heaters are made of fiberglass cloth impregnated with silicone rubber , which together provide great strength and flexibility. A wire heating element is then vulcanized between two layers of silicone rubber, forming a durable yet very flexible heat blanket that is resistant to moisture, chemicals, acids and many industrial solvents.
Applications:
- Freeze protection and condensation prevention for many types of instrumentation and equipment.
- Medical equipment such as blood analyzers and test tube heaters.
- Computer peripherals such as laser printers.
- Curing of plastic laminates.
- Photo processing equipment.
- Semiconductor processing equipment.
- Thermal transfer equipment
- Drums and other vessels and viscosity control and asphalt storage.

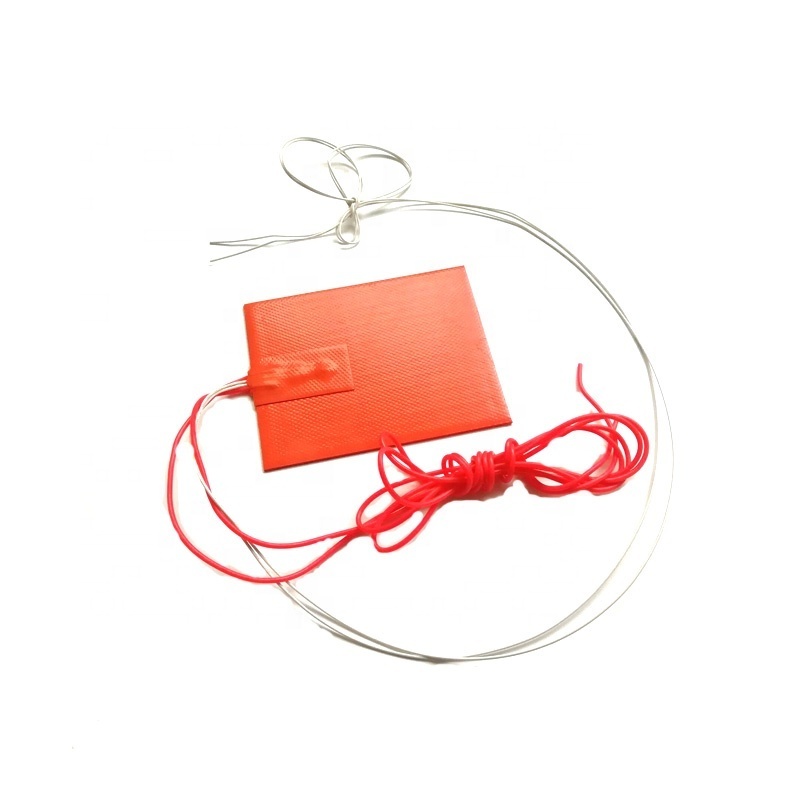

90*110*1.5mm Flexible Silicone Rubber Heater use on metal/aluminum pipes(100mm diameter) 230v 90w adhesive 1 side 10k thermistor 1000mm lead wire come out from middle of 90mm side DR-M-875
| Mode number | Size(mm) | Voltage(v) | Wattage(w) | Shape | Length of lead(mm) | Attachment |
| DR-M-131 | 400*500*1.5 | 12V | 250w | rectangle | 1000mm from middle of 400mm side | digital thermostat on wire |
| DR-M-132 | 400*500*1.5 | 24v | 450w | rectangle | 1000mm from middle of 400mm side | digital thermostat on wire |
| DR-M-133 | 400*500*1.5 | 110V | 1200w | rectangle | 1000mm from middle of 400mm side | digital thermostat on wire |
| DR-M-134 | 400*500*1.5 | 120v | 1200w | rectangle | 1000mm from middle of 400mm side | digital thermostat on wire |
| DR-M-135 | 400*500*1.5 | 220v | 1500w | rectangle | 1000mm from middle of 400mm side | digital thermostat on wire |
| DR-M-136 | 400*500*1.5 | 230v | 1500w | rectangle | 1000mm from middle of 400mm side | digital thermostat on wire |
| DR-M-137 | 400*500*1.5 | 240V | 1500W | rectangle | 1000mm from middle of 400mm side | digital thermostat on wire |
Primary Competitive Advantages:
- Country of Origin
- Distributorships Offered
- Experienced Staff
- Guarantee/Warranty
- Prompt Delivery
- Small Orders Accepted
- If you can't find your Size & Shape& Voltage& Wattage,Please contact with me,then We can provide professional sevice.
- It would be better send us your drawing or CAD pictures for specialized design,then we can do better!
1. We are a direct manufacturer and our priority is your complete satisfaction.
2. OEM or ODM is abailable.
3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 7 days, depending on the quantity.
6. Packages: Available for ploy bag and carton box
Attachment
Dont be hesitate ,send us inquiry Now!!!
