Quick Details
-
Power:
-
2.2kw/3kw/4kw
-
Min. Lifting Height:
-
Request
-
Table Size:
-
1200*1000mm, customized
-
Overall Dimensions:
-
2500*1350*2300mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Scissors Hydraulic Lift Platform
-
Overall Dimensions::
-
customized
-
Certification:
-
ISO9001:2008
-
Lifting Mechanism:
-
scissor lift
-
Application:
-
Maintenance
-
Color:
-
Customers' Requirements
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Type:
-
Scissor Hydraulic Lift
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Weihua
-
Power:
-
2.2kw/3kw/4kw
-
Min. Lifting Height:
-
Request
-
Table Size:
-
1200*1000mm, customized
-
Overall Dimensions:
-
2500*1350*2300mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Scissors Hydraulic Lift Platform
-
Overall Dimensions::
-
customized
-
Certification:
-
ISO9001:2008
-
Lifting Mechanism:
-
scissor lift
-
Application:
-
Maintenance
-
Color:
-
Customers' Requirements
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Type:
-
Scissor Hydraulic Lift
Products Description

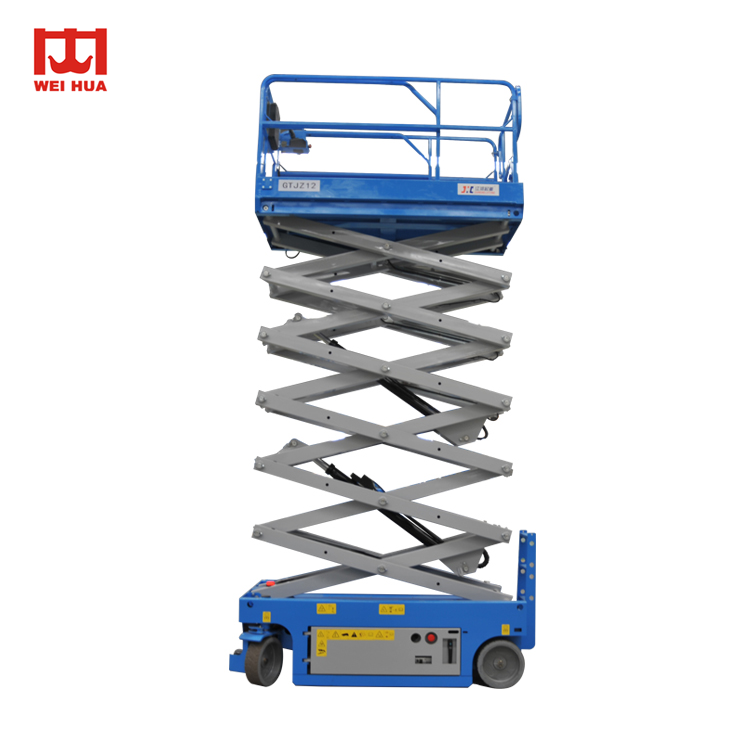

Platform Scissor Lift
Hydraulic lifting platform
, the product is mainly for workshops, warehouses and various work placement layers and transportation of goods. It has large carrying capacity, stable lifting, and convenient maintenance. It is an economical and suitable low-floor space to replace elevators and ideal cargo transportation equipment.
Scissor Lift Platform Features:
1. Great load capacity, stable lifting
2. Compact structure and simple appearance
3. Simple and convenient maintenance
|
items
|
07series
|
|
08series
|
|
12series
|
|
14series
|
|
|||||||
|
models
|
GTJZ
|
|
|
|
|
|
|
|
|||||||
|
|
0807DC
|
0808DC
|
1008DC
|
1012DC
|
1212DC
|
1412DC
|
1414DC
|
1614DC
|
|||||||
|
capacity
|
230kg
|
380kg
|
230kg
|
450kg
|
320kg
|
320kg
|
450kg
|
200kg
|
|||||||
|
Capacity-extension deck
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
|||||||
|
Max occupancy
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
|||||||
|
Max working
height-A |
7.80m
|
8.20m
|
10.10m
|
10.10m
|
12.00m
|
13.80m
|
13.50m
|
15.70m
|
|||||||
|
Max platform
height-B |
5.80m
|
6.20m
|
8.10m
|
8.10m
|
10.00m
|
11.80m
|
11.50m
|
13.70m
|
|||||||
|
Length-C
|
1.86m
|
2.42m
|
2.42m
|
2.42m
|
2.42m
|
2.42m
|
2.79m
|
2.79m
|
|||||||
|
Width-D
|
0.76m
|
0.83m
|
0.83m
|
1.17m
|
1.17m
|
1.17m
|
1.27m
|
1.27m
|
|||||||
|
Height(raillings
unfolded) |
2.19m
|
2.24m
|
2.37m
|
2.36m
|
2.49m
|
2.62m
|
2.49m
|
2.62m
|
|||||||
|
Height-E
(railling folded) |
1.85m
|
1.94m
|
2.07m
|
1.80m
|
1.93m
|
2.06m
|
1.93m
|
2.06m
|
|||||||
|
Platform size
(L×w-F) |
1.67m×
0.74m |
2.27m×
0.83m |
2.27m×
0.83m |
2.27m×
1.14m |
2.27m×
1.14m |
2.27m×
1.14m |
2.64m×
1.14m |
2.64m×
1.14 m |
|||||||
|
Extension deck
size -G |
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
|||||||
|
Ground
clearance (stowed) |
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
|||||||
|
Ground
clearance (elevated) |
0.02m
|
0.02m
|
0.02m
|
0.02m
|
0.02m
|
0.02m
|
0.02m
|
0.02m
|
|||||||
|
wheelbase
|
1.40m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
2.24m
|
2.24m
|
|||||||
|
Min turning
radius (inside) |
0m
|
0m
|
0m
|
0m
|
0m
|
0m
|
0m
|
0m
|
|||||||
|
Min turning
radius (outside) |
1.60m
|
2.25m
|
2.25m
|
2.23m
|
2.23m
|
2.23m
|
2.25m
|
2.25m
|
|||||||
|
Driving motor
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
24V/1.5kw
|
|||||||
|
Lifting motor
|
24V/2.0kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/4.5kw
|
24V/4.5kw
|
24V/4.5kw
|
|||||||
|
Driving speed
(stowed) |
4.0km/h
|
4.0km/h
|
4.0km/h
|
4.0km/h
|
4.0km/h
|
4.0km/h
|
4.0km/h
|
4.0km/h
|
|||||||
|
Driving speed
(elevated) |
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
|||||||
|
Lifting/lowering
speed |
18/22sec
|
24/34sec
|
28/40sec
|
28/40sec
|
45/36sec
|
50/38sec
|
60/45sec
|
80/60sec
|
|||||||
|
batter
|
4×6V/
225Ah |
4×6V/
225Ah |
4×6V/
225Ah |
4×6V/
225Ah |
4×6V/
240Ah |
4×6V/
260Ah |
4×12V/
300Ah |
4×12V/
300Ah |
|||||||
|
charger
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
|||||||
|
Max
gradeability |
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
|||||||
|
Max tilt
|
3°/1.5°
|
3°/2°
|
3°/1.5°
|
3°/2°
|
3°/2°
|
3°/1.5°
|
3°/2°
|
3°/1.5°
|
|||||||
|
tires
|
Φ323×
100mm |
Φ381×
127mm |
Φ381×
127mm |
Φ381×
127mm |
Φ381×
127mm |
Φ381×
127mm |
Φ381×
127mm |
Φ381×
127mm |
|||||||
|
Weight
|
1260kg
|
2020kg
|
2140kg
|
2270kg
|
2520kg
|
3140kg
|
3060kg
|
3220kg
|
|||||||
Main Products
The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane,grab bucket crane, jib crane,marine decke crane,electric hoist,electric winch,mobile platforms and other types of hydraulic crane technical requirements.
