Quick Details
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEGOFON
-
Model Number:
-
TILES600
-
Material:
-
glasswool, rock wool.Mineral wool
-
Surface:
-
Emulsion paint sprayed
-
Size:
-
600*600mm 1200*600mm
-
Color:
-
Smooth white, snowy mountain white
-
Thickness:
-
12mm 15mm 20mm
-
NRC:
-
0.85
-
Fireproof:
-
A2
-
Edge:
-
Square A24 E15 D24
-
Density:
-
100Kg/m3
-
Installation:
-
Ceiling grid
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEGOFON
-
Model Number:
-
TILES600
-
Material:
-
glasswool, rock wool.Mineral wool
-
Surface:
-
Emulsion paint sprayed
-
Size:
-
600*600mm 1200*600mm
-
Color:
-
Smooth white, snowy mountain white
-
Thickness:
-
12mm 15mm 20mm
-
NRC:
-
0.85
-
Fireproof:
-
A2
-
Edge:
-
Square A24 E15 D24
-
Density:
-
100Kg/m3
-
Installation:
-
Ceiling grid
Product Description
DEGOFON Fiberglass Acousticl Ceilings
DESCRIPTION
-MINIMIZE NOISE AND HELP BLOCK SOUND BETWEEN ROOMS.
Acoustic ceiling tiles help to reduce excess noise within a space and help stop sound from travelling between rooms. ASTM E84 Class A fire-resistive; up to 43% recycled content RH99 Moisture resistance
-REDUCE SCRAP AND INSTALLATION TIME.
DEGOACOUSTIC ceiling tiles with a non-directional texture and a square or tegular edge cut easily and minimize waste and time during installation; 2x2/4 ceiling tiles; 1-year warranty; free
EASY TO REPLACE IN EXISTING CEILING GRID.
-Drop ceiling panels install in a standard 15/16" ceiling grid (no glue-up, nails, or staples)
-WORRY-FREE PACKAGING FOR LESS CEILING TILE DAMAGE. DEGO ceiling tile is specially-packed by the manufacturer to avoid product damage during direct shipping; 20 pieces per carton; 7.2 m2. of ceiling covering
-PRACTICAL FOR A VARIETY OF CEILING APPLICATIONS.
DEGOACOUSTIC commercial ceiling tiles can be used in spaces like office , cinema, School Hospital Gymnasium Concert Hall; Also appropriate for a basement ceiling.
-MINIMIZE NOISE AND HELP BLOCK SOUND BETWEEN ROOMS.
Acoustic ceiling tiles help to reduce excess noise within a space and help stop sound from travelling between rooms. ASTM E84 Class A fire-resistive; up to 43% recycled content RH99 Moisture resistance
-REDUCE SCRAP AND INSTALLATION TIME.
DEGOACOUSTIC ceiling tiles with a non-directional texture and a square or tegular edge cut easily and minimize waste and time during installation; 2x2/4 ceiling tiles; 1-year warranty; free
EASY TO REPLACE IN EXISTING CEILING GRID.
-Drop ceiling panels install in a standard 15/16" ceiling grid (no glue-up, nails, or staples)
-WORRY-FREE PACKAGING FOR LESS CEILING TILE DAMAGE. DEGO ceiling tile is specially-packed by the manufacturer to avoid product damage during direct shipping; 20 pieces per carton; 7.2 m2. of ceiling covering
-PRACTICAL FOR A VARIETY OF CEILING APPLICATIONS.
DEGOACOUSTIC commercial ceiling tiles can be used in spaces like office , cinema, School Hospital Gymnasium Concert Hall; Also appropriate for a basement ceiling.

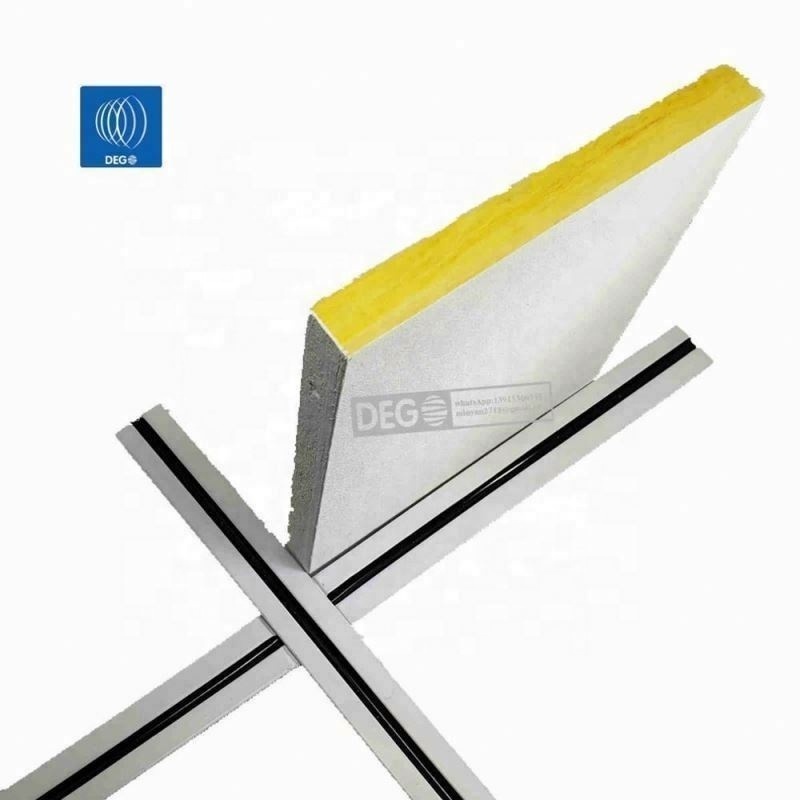

Acoustic fiberglass ceiling tiles 600*(600mm/1200mm)
DEGOFON sound absorbing fiberglass ceiling is made from sound absorbing plate of fiberglass wool/Rock wool as basis material and on it compound sprayed fiberglass decorative felt. It features good sound absorbing effect, heat preservation, high fire retardant, high strength level , beautiful decorative effect, etc. it can improve acoustical environment of building and raise peoples quality of work and living. It is widely used for indoor space where not only has the requirement to drop noise but also the needs medium and high quality decoration, such as hospital, meeting room, exhibition hall, cinema, library ,studio, gymnasium , phonetic classroom, shopping place ,etc
.
Features & Benefits:
- Elegant lightly textured white surface
-High sound absorption (NRC = 0.90 - 0.95)
- High fire performance (A2)
- High light reflectance (LR = 0.85)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.
-High sound absorption (NRC = 0.90 - 0.95)
- High fire performance (A2)
- High light reflectance (LR = 0.85)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.
PHYSICAL DATA
MATERIAL
|
Fiberglass with acoustically transparent membrane
|
|
|
|
|||
SURFACE FINISHE
D
|
special painting laminated with decorative fiberglass tissue
|
|
|
|
|||
COLOR
|
White .black ,Custom
|
|
|
|
|||
SOUND ABSORPTION
|
NRC:0.85-0.9
|
|
|
|
|||
SIZE(s)
|
Item606012(600mm×600mm×15mm),Item606015(600mm×600mm×12mm),
|
|
|
|
|||
|
Item 606025(600mm×600mm×25mmItem6012015(600mm×1200mm×15mm)
|
|
|
|
|||
|
Item6012020(600mm×1200mm×20mm),Item6012025(600mm×1200mm×25mm)
|
|
|
|
|||
|
Item6024025(600mm×2400mm×25mm),tem6018025(1200mm×1800mm×25mm),
|
|
|
|
|||
EDGE
|
·A15/24 Square Lay-in
|
·E 15/24 Tegular
|
|
·D24 Concealed
|
|||
WEIGHT
|
2.25kgs/m2Items606015
|
·3.2kgs/m2 (Items606020)
|
|
4.5kgs/m2(Item12024025
|
|||
LIGHT REFLECTANCE
|
LR 0.85
|
|
|
|
|||
MOISTURERESISTANCE:
|
RH99 dimensionally stable with RH up to 99% at 40 no sagging, wrapping or delaminating
|
|
|
|
|||
FIRE CLASS
|
(ASTM E1264) Class A2 per CN,lame Spread: 25 or less Smoke Developed: 50 or less
|
|
|
|
|||
MILDEW RESISTANC
|
Fiberglass substrate is inherently resistantto the growth of mold and mildew.
|
|
|
|
|||
RECOVERABLE
|
71%
|
|
|
|
|||
WARRANTY
|
15Year ,
|
Useful life 50Y
|
|
|
Square edge Lay-in
A lay-in grid system provides the room with a simple and structured expression that highlights the shape of the room. Lay-in grid ceilings have a SQ edge. SQ (square lay-in) - SQ tiles are a cost-effective solution that provides easy access
The grid system is less dominant with the narrower T24 profile. SQ edge tiles are demountable.
Tegular edge
Tegular grid ceilings use light and shadow to create a distinctive appearance. Combine the shape of the ceiling tile edges with the width and color of the suspension system to create a unique ceiling that contributes to the overall architectural expression of the space.
C oncealed edge
A concealed grid ceiling system can be suspended, directly fastened or glued to the ceiling. With little or no visible grid,
they provide a concealed appearance and can integrate service installations such as lighting, ventilation and smoke
detectors.
Square Lay-in Ceiling
Description
:
The tiles are manufactured from high density fiberglass wool.The visible face has a decorative fiberglass tissue and the back of the tile is covered with normal tissue.The four edges have grooves being tegular shape and are sealed.The tiles will be lower than the suspension system after installation.
Installation :
use exposed grids, grids width:15mm or 24mm tiles are easy to trim and install both inches and centimeters grids
are available
Features & Benefits:
are available
Features & Benefits:
non-combustible no sagging,wrapping or delaminating green building material excellent sound absorption
Tegular Ceiling
Description
:
The tiles are manufactured from high density fiberglass wool.The visible face has a decorative fiberglass tissue and
the back of the tile is covered with normal tissue.The four edges have groovesbeing tegular shape and are sealed.The tiles will be lower than the suspension system after installation .
the back of the tile is covered with normal tissue.The four edges have groovesbeing tegular shape and are sealed.The tiles will be lower than the suspension system after installation .
Installation:
use exposed grids, grids width:15mm or 24mm tiles are easy to trim and install both inches and centimeters grids areavailable
Features & Benefits:
non-combustible no sagging,wrapping or delaminating green building material excellent sound absorption
Concealed Ceiling
Description:
The tiles are manufacured from high density fiberglass wool.The visible face has a decorative fiberglass tissue and the back of the tiles is covered with normal tissue.The edges of two are square,while others are concealed. The tiles will cover the suspension system after instsllation. They are easy to trim and install.
Installation
use exposed grids, grids width: 24mm tiles are easy to trim and install both inches and centimeters grids are available
Features & Benefits:
Features & Benefits:
non-combustible no sagging,wrapping or delaminating green building material excellent sound absorption
Stick-on ceiling
D
escription:
The tiles are manufactured from high density glass wool.The visible face has a decorative fiberglass tissue,and the back is nature without any lamination.The four edges are sealed and bevelled.
Installation:
Can be directly sticked to roof or walls by strong adhesive without any suspension system.Other accessories which
can reinforce the tiles are recommended.
Features & Benefits:
can reinforce the tiles are recommended.
Features & Benefits:
non-combustible no sagging,wrapping or delaminating green building material excellent sound absorption
White Ceiling.
Materials: ≥torrefaction compounded high density fiberglass wool
·DEGOACOUSTIC acoustically transparent membrane·
Colour:white/black
·DEGOACOUSTIC acoustically transparent membrane·
Colour:white/black
Thickness:15/20/25/30/40/50mm·
Edge type:lay-in,tegular and concealed
Black: Acoustic fiberglass cloth ≥45g
Edge: Finshed paint
Edge type:lay-in,tegular and concealed
Black: Acoustic fiberglass cloth ≥45g
Edge: Finshed paint
Black Ceiling
Materials
: high density fiberglass wool
Back: acoustically fiberglass mat
Colour :white/black
Thickness: 15/20/25/30/40/50mm·
Edge type :lay-in,tegular and concealed
Edge: Finshed paint
Back: acoustically fiberglass mat
Colour :white/black
Thickness: 15/20/25/30/40/50mm·
Edge type :lay-in,tegular and concealed
Edge: Finshed paint
Features & Benefits:
- Smooth textured back surface
-High sound absorption (NRC = 0.8 - 0.95)
- High fire performance (A1)
- High light reflectance (LR = 0.85)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.
-High sound absorption (NRC = 0.8 - 0.95)
- High fire performance (A1)
- High light reflectance (LR = 0.85)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.
Color custom ceiling
Materials: high density fiberglass wool
Back: acoustically fiberglass mat
Colour:white/black
Thickness:15/20/25/30/40/50mm·
Edge type:lay-in,tegular and concealed
Edge: Finshed paintFeatures & Benefits:
- Smooth textured back surface
-High sound absorption (NRC = 0.8 - 0.95)
- High fire performance (A1)
- High light reflectance (LR = 0.85)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.
Back: acoustically fiberglass mat
Colour:white/black
Thickness:15/20/25/30/40/50mm·
Edge type:lay-in,tegular and concealed
Edge: Finshed paintFeatures & Benefits:
- Smooth textured back surface
-High sound absorption (NRC = 0.8 - 0.95)
- High fire performance (A1)
- High light reflectance (LR = 0.85)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.
Size custom ceiling
Materials: high density fiberglass wool
Back: acoustically fiberglass mat
Colour:white/black
Thickness:15/20/25/30/40/50mm·
Edge type:lay-in,tegular and concealed
Edge: Finshed paintFeatures & Benefits:
- Smooth textured back surface
-High sound absorption (NRC = 0.8 - 0.95)
- High fire performance (A1)
- High light reflectance (LR = 0.85)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.
Back: acoustically fiberglass mat
Colour:white/black
Thickness:15/20/25/30/40/50mm·
Edge type:lay-in,tegular and concealed
Edge: Finshed paintFeatures & Benefits:
- Smooth textured back surface
-High sound absorption (NRC = 0.8 - 0.95)
- High fire performance (A1)
- High light reflectance (LR = 0.85)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.
Acoustic performance
·NRC=0.85
·Dn,c,w=16dB
·Dn,c,w=33dB
·Dn,c,w=33dB
Smooth white
acoustic glasswool ceiling tile that achieves essential demands of a commercial ceiling. Each tile is individually demountable and is available with either natural or primed edges.
Elegant white
high acoustic glasswool ceiling tile that is suitable for a variety of commercial applications. It offers a tegular edge design
with sealed edges.
with sealed edges.
Black
black glasswool ceiling tile that provides high sound absorption properties. It is ideal for commercial applications such as
movie theatres or lecture theatres
movie theatres or lecture theatres
Degoacoustic baffle
Baffle is a sound absorbing free hanging feature for commercial ceiling spaces. Perfect for areas where a traditional suspended
ceiling is not required but solid acoustic properties are. The Ambience baffle range is available in two shapes; Platform and Rise
ceiling is not required but solid acoustic properties are. The Ambience baffle range is available in two shapes; Platform and Rise
DEGO mineral fibre ceiling
mineral fibre ceiling tile with premium acoustic properties and a fine fissured face pattern that is suitable for a wide range of commercial applications. It provides good acoustic properties and a modern face pattern
.
Degoacoustic wall panels
DEGOACOUSTIC ™ Impact resistant acoustic panels are designed to provide excellent soundabsorption performance and are perfect for controlling reverberation time and reduce echo in public building. They are versatile, sustainable sound absorbers for impact resistant areassuch as sports halls, corridors, etc.
Degoacoustic Shapes
DEGOACOUSTIC acoustic clouds &shapes are the ultimate tool for design freedom. Different colors, shapes and sizes offer hundreds of options. Consider positioning, angles, stacking and layering, and the possibilities are endless.
Degoacoustic Hexagon cloud
Cloud is a sophisticated sound absorbing free hanging feature for commercial ceiling spaces. Perfect for areas where a traditional
suspended ceiling is not required but solid acoustic properties are. The Ambience cloud range is available in eight different
shapes and sizes.
suspended ceiling is not required but solid acoustic properties are. The Ambience cloud range is available in eight different
shapes and sizes.
