Quick Details
-
Model Number:
-
FCSS-63S91
-
Type:
-
leakage current sensor, Customized
-
Place of Origin:
-
China
-
Brand Name:
-
deheng
-
Output:
-
Switching Transducer (TTL)
-
Product name:
-
Fluxgate dc leakage current sensor
-
Supply voltage:
-
+12
-
Accuracy:
-
0.001%
-
Output signal:
-
Switch
-
Working temperature:
-
-20 - +80
-
Current Drain:
-
≤18mA
-
Load Resistance:
-
≥10kΩ
-
Color:
-
Bule
Quick Details
-
Usage:
-
measuring leakage
-
Mounting Type:
-
terminal
-
Description:
-
high accuracy leakage sensor
-
Model Number:
-
FCSS-63S91
-
Type:
-
leakage current sensor, Customized
-
Place of Origin:
-
China
-
Brand Name:
-
deheng
-
Output:
-
Switching Transducer (TTL)
-
Product name:
-
Fluxgate dc leakage current sensor
-
Supply voltage:
-
+12
-
Accuracy:
-
0.001%
-
Output signal:
-
Switch
-
Working temperature:
-
-20 - +80
-
Current Drain:
-
≤18mA
-
Load Resistance:
-
≥10kΩ
-
Color:
-
Bule

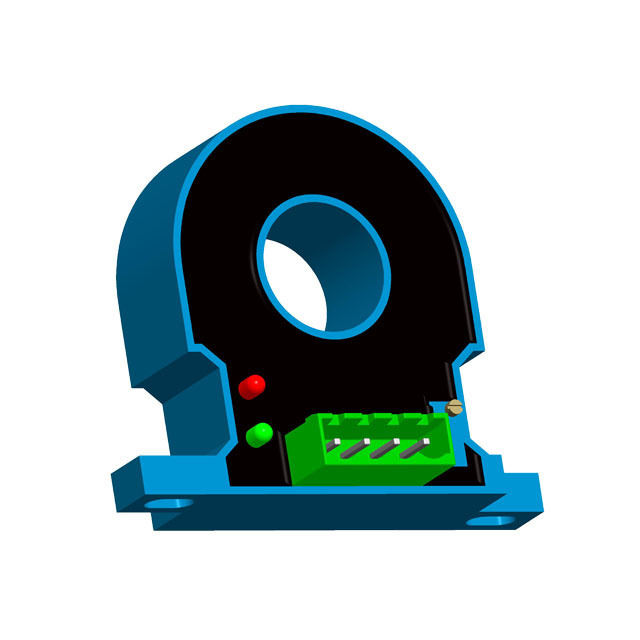

Fluxgate DC Leakage Current Sensor (Single power, switch output)
This is new type of Fluxgate Current Sensor ; it’s based on the principle of magnetic modulation. it can be used to measure leakage currents including DC, AC, and AC and DC stacks, generally used as a DC leakage current detection and protection in equipment that uses DC operation.
Used in electric vehicle charging pile (mode3 protection)
Primary and secondary isolation, pressure and safety.
Applied to a single power supply system ,output switching signal, achieve better protection, power supply and action current support customized.
Product with Self-test
Feature :
Various type for choose and OEM
Beautiful and small weight .
Easy to install.
Flame retardant (UL94- V0).
Environmental protection( EU RoHS)
Advantage :
High precision
Low loss during insertion.
Strong overload capabiliy
Fast reaction
S trong anti-interference ability
Use:
Communication base station equipment
New energy equipment
DC charging pile
Communication power
Switching power
Medical equipment
Rail transit
Industrial measurement
Power control
Technical Parameter :
Size Picture :
Operation diagram :
Instructions for use :
1. Connect the current according to the calibration direction of the circuit diagram, pay attention to the direction of current.
2. Connect the wire according to the function pin definition of the calibration in the structure diagram.
